$4,495,000 | Naples FL

GENERAL:

• Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/ sounds levels that are industry leading

and at times 1/2 to 1/10 of ISO-6954 requirements (Unique OA feature)

• Longitudinal and lateral fiberglass stringers filled with high density foam

• All exterior hardware to be S/S 316 or to manufacturer requirements

• Fiberglass with infusion lamination manufacturing technology

• Frameless window

• Vinylester resin with high-density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (Usually only found in vessels 100’+)

• Reinforced collision bulkhead

• Weather-tight bulkheads with further sound and temperature insulation

• Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands (Unique OA standard feature, not an optional upcharge like competitors)

• Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature)

• Use of cross-knit directional carbon fiber in high stress area for added structural integrity and torsional strength

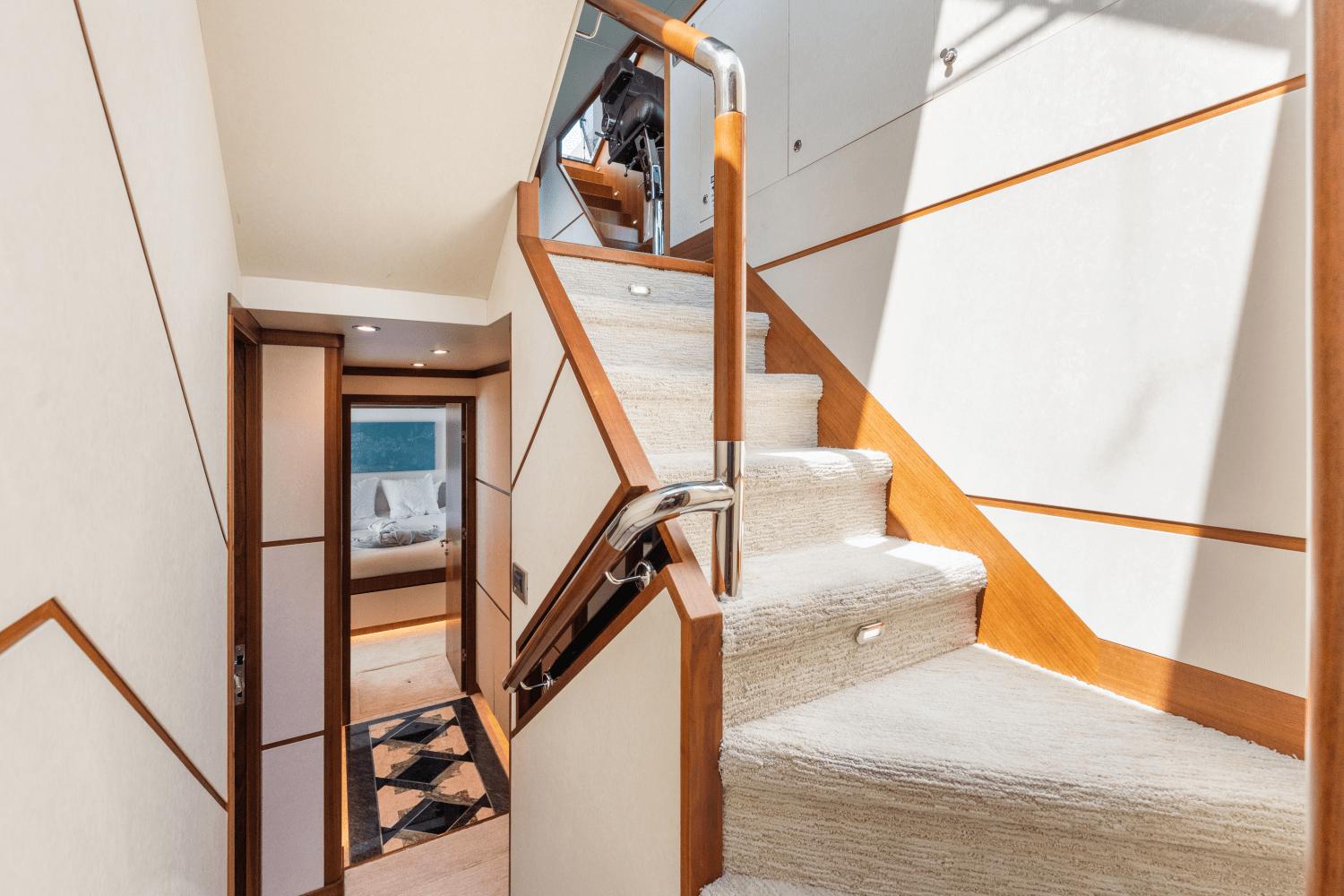

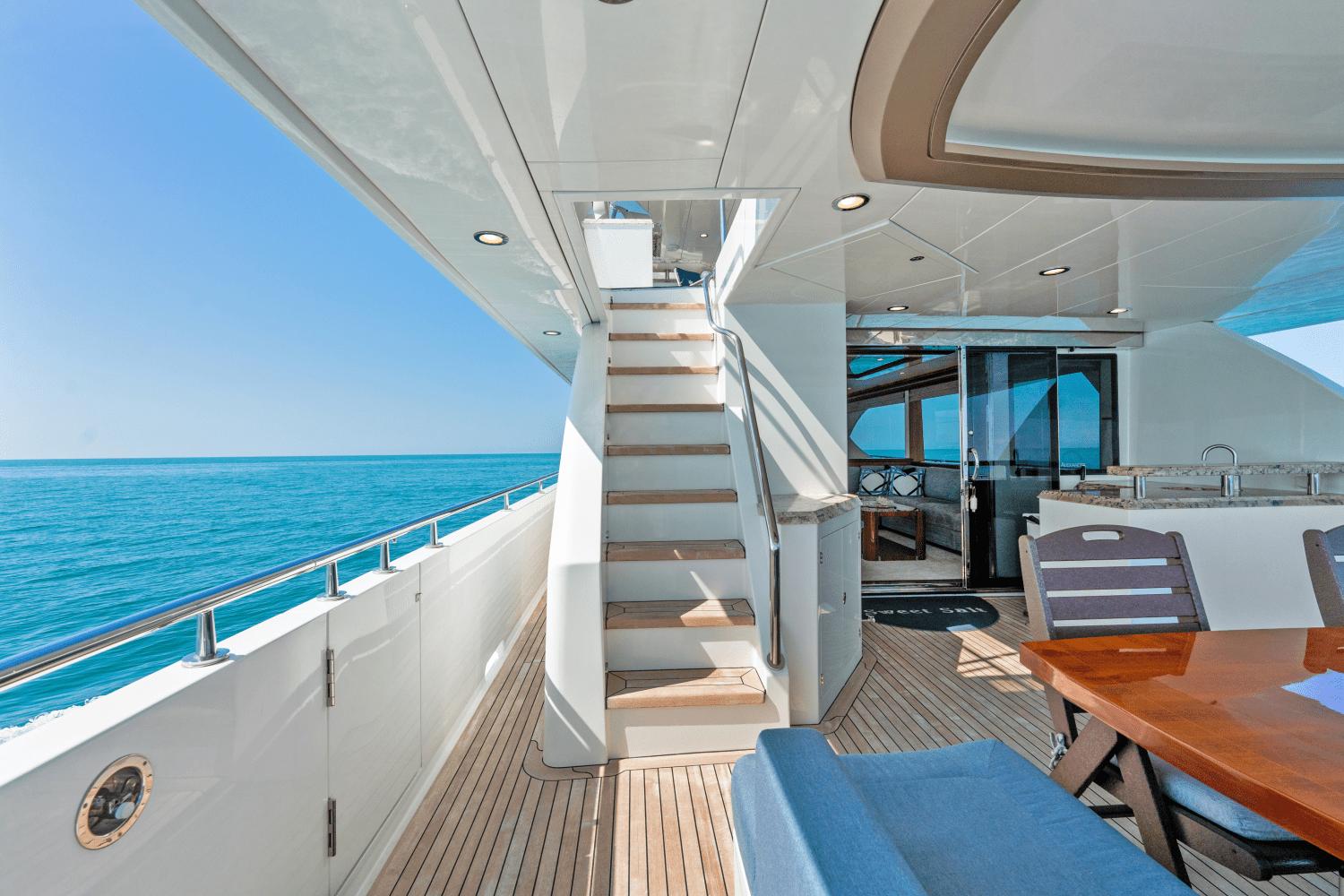

• Fiberglass staircase from cockpit to FB w/teak steps

HULL / BOTTOM:

• Black boot top stripe

• Interior structural components all bonded to hull

• Three coats of Seahawk primer, hi-build epoxy barrier coat and covered with three coats of Seahawk self-polishing bottom paint (Unique OA feature, optional on competitors)

• Bronze through-hull fittings

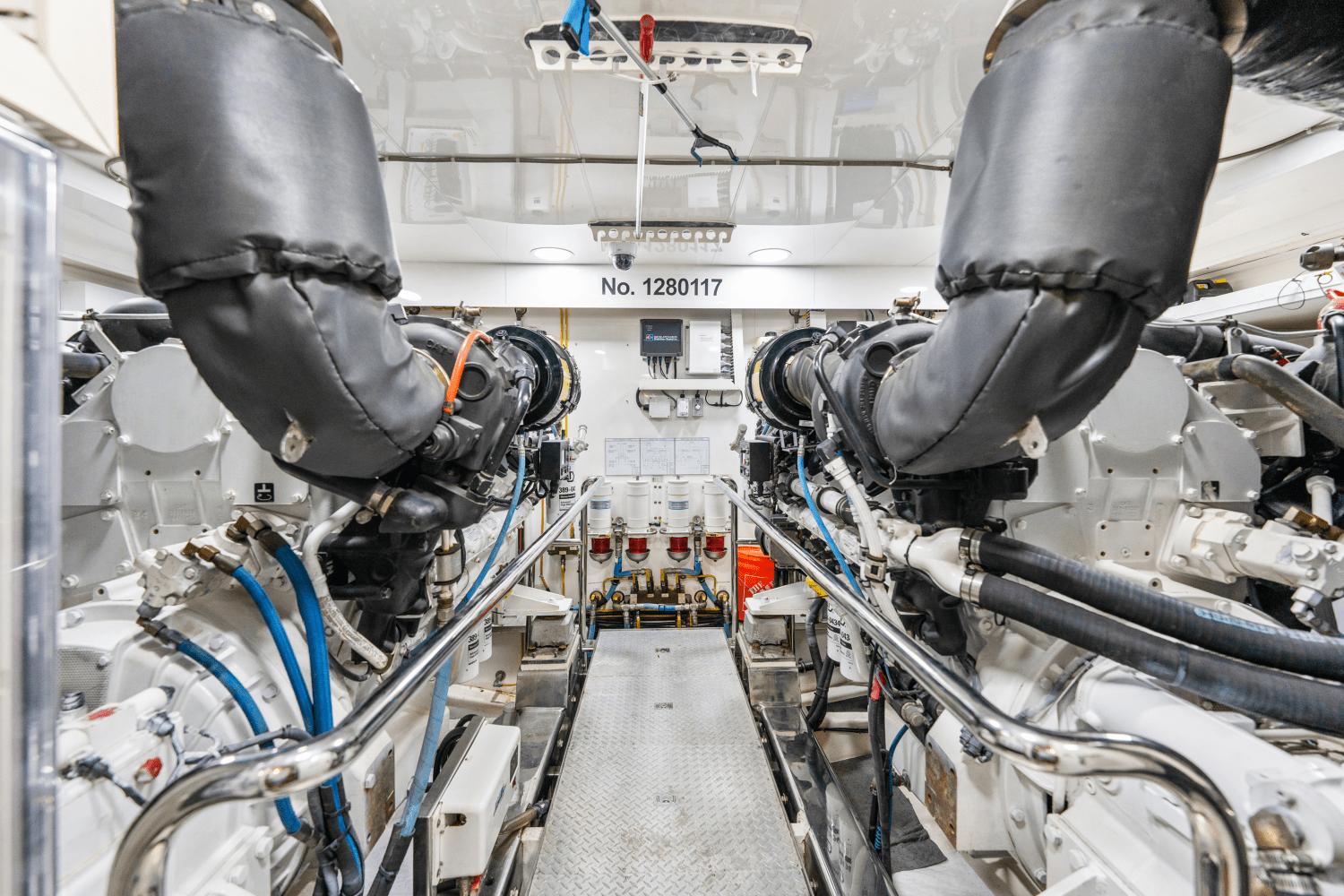

MECHANICAL

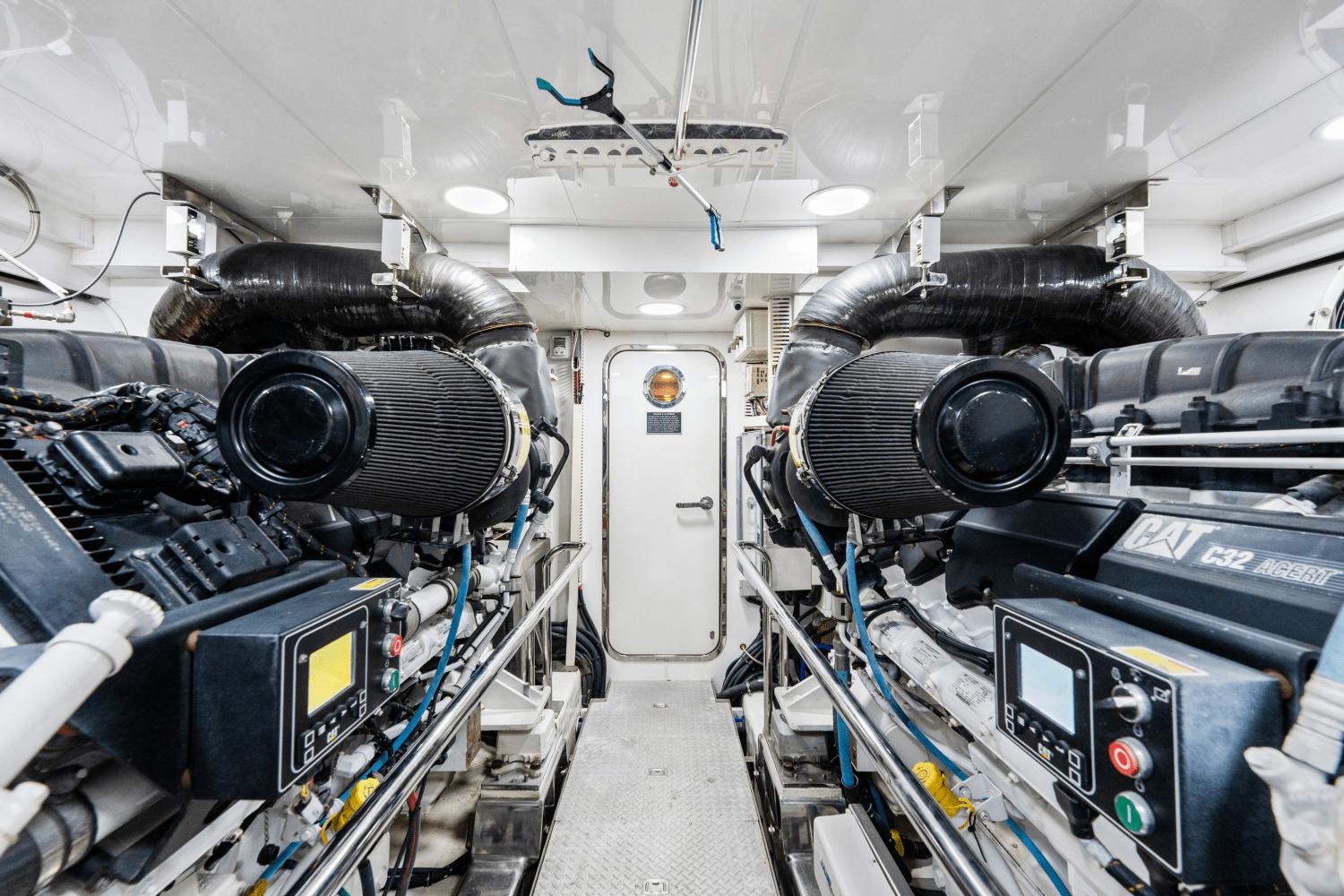

MAIN ENGINES:

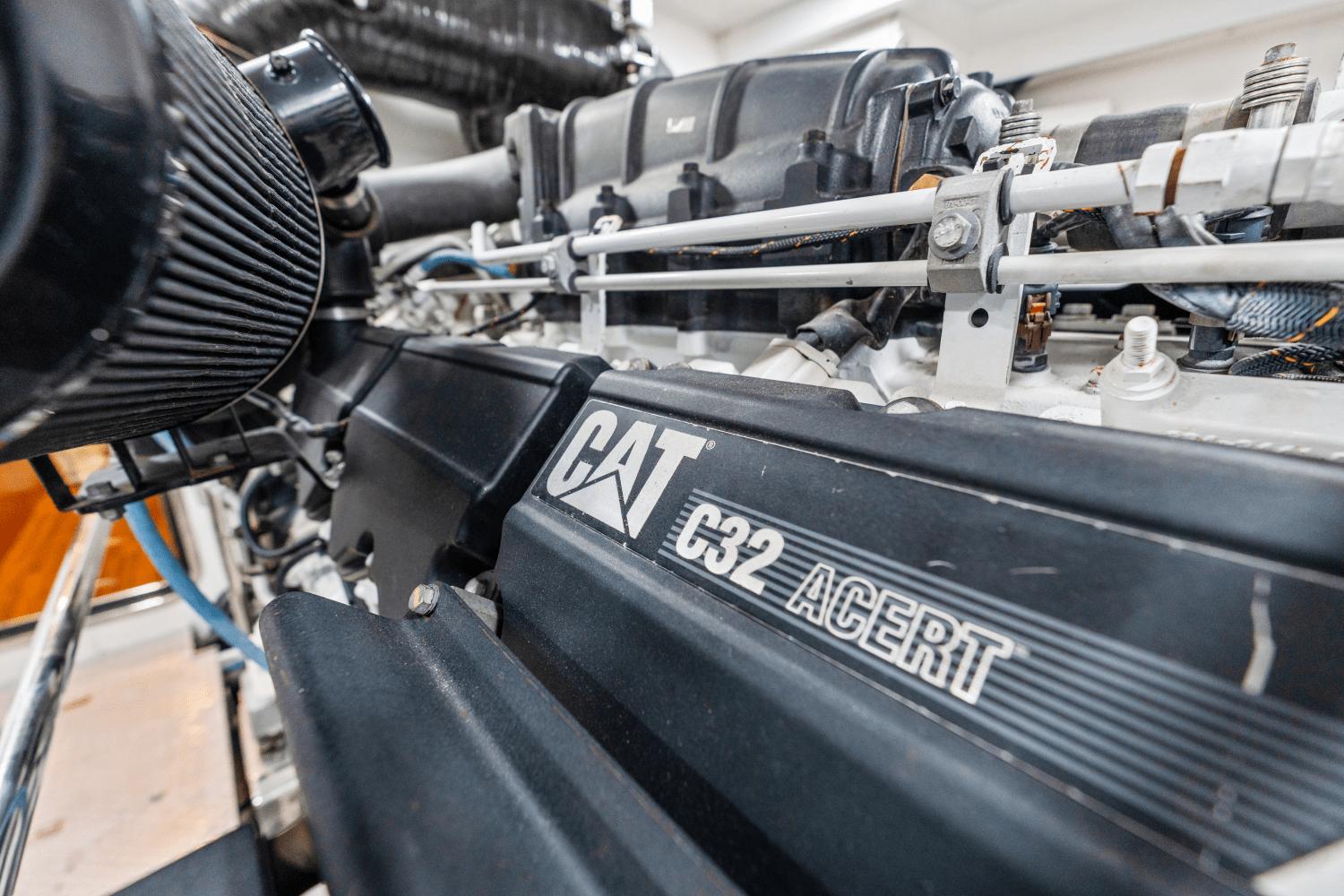

• CAT® C-32 ACERT 1622HP

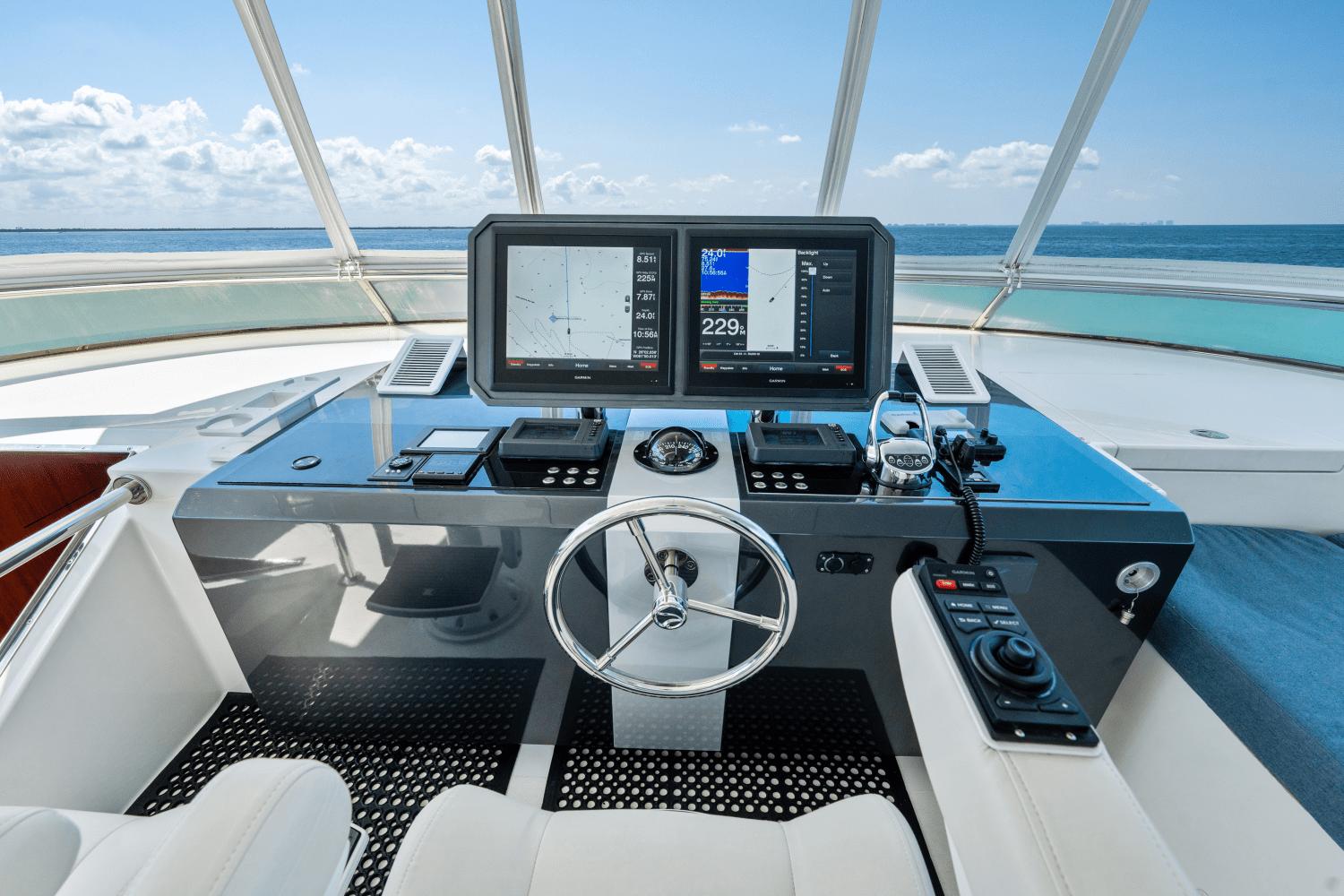

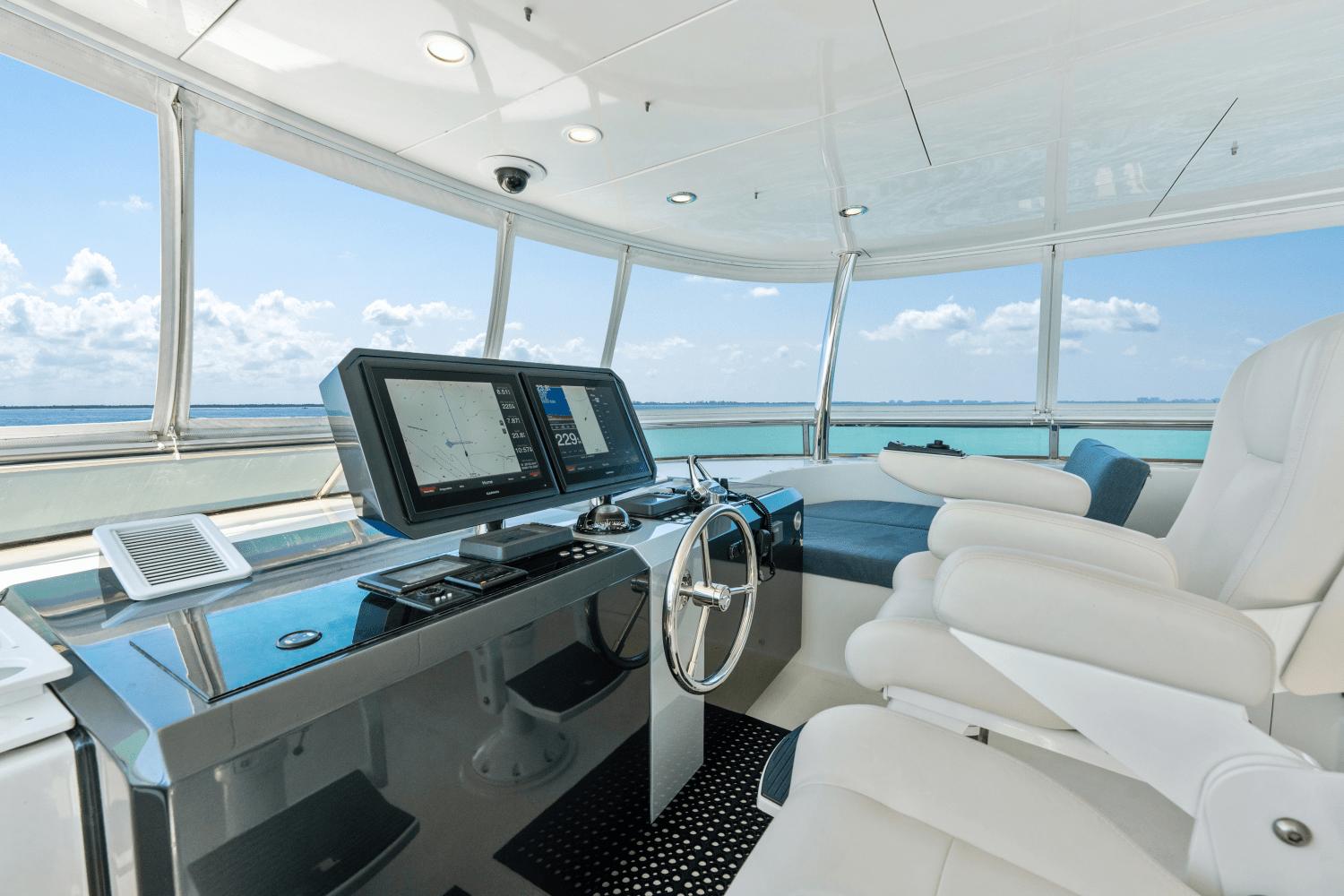

• Two control stations: FB & PH, with complete engine instrumentation with lighted, modern switches.

• Delta-T Intake/ exhaust fans with demister to eliminate moister from the intake air flow to keep machinery spaces dry.

• Manually controlled adjustable/reversible Delta-T® fans for engine exhaust located on superstructure instead of hull side. Maximizes water protection and salt spray, resulting in safer and lower maintenance ownership (Unique OA feature)

• Stabilizer with power take-off from both engines to provide redundancy (Unique OA feature)

• Engine hour meters

• Electric engine control

• Engine alarm system (oil and temperature)

• Wet exhaust and including water temperature, oil pressure, hour meter and start/stop controls in engine room and remote start/stop controls in the pilot house

• Dripless engine shaft seal logs

• Dripless seal for rudder post

• Complete engine instrumentation, two stations

• S/S rail on side of engine

GENERATOR:

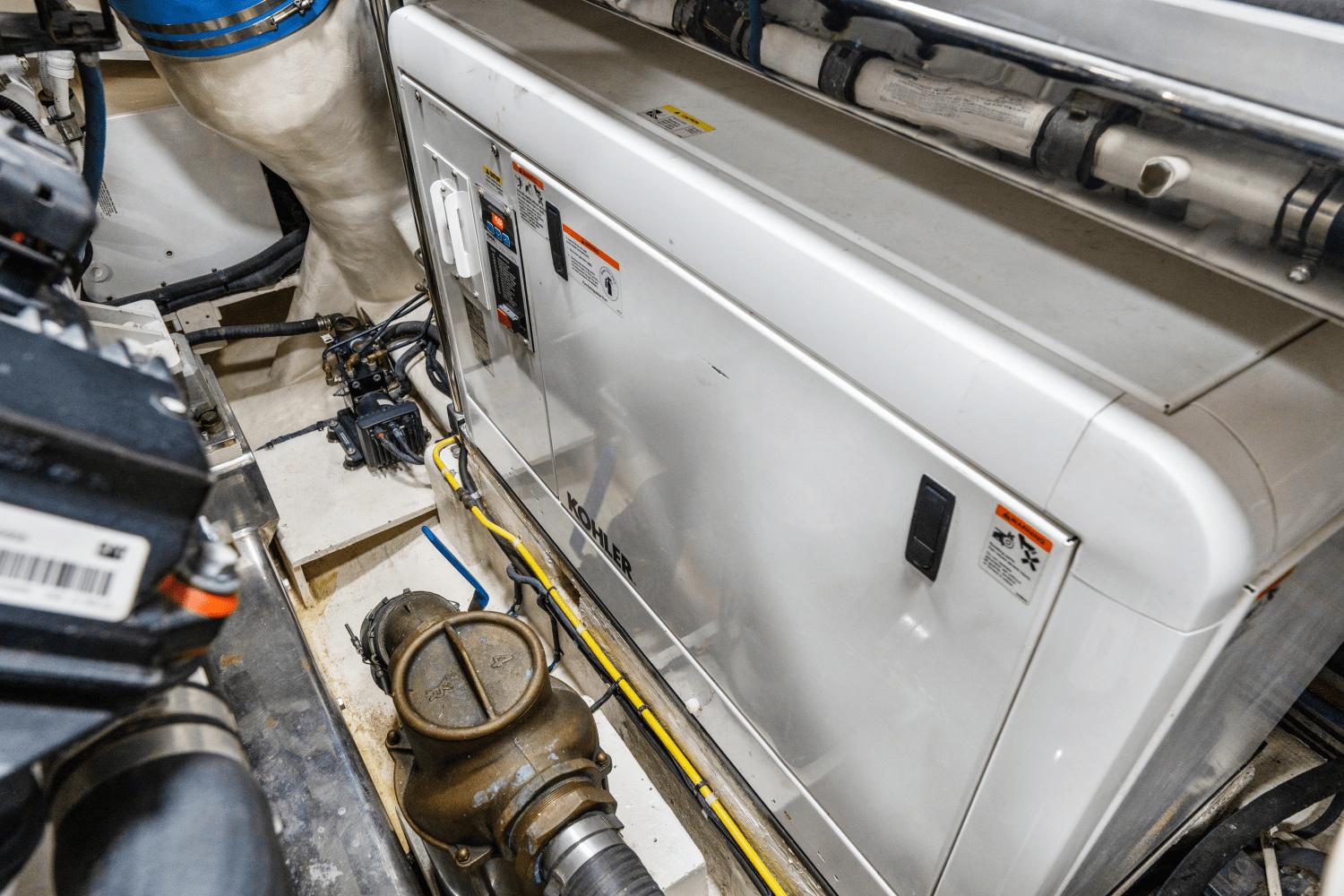

• Kohler®32 KW genset (2x)

• Generator exhausts to be water-drop type per “Centek”, “Marine Exhaust Co.” or equal. Reduces noise & vibration

• Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)

• Generators with gas/ water separator

WINDLASS / MOORING:

• Hydraulic windlass, VR4000

• Stainless steel plow type anchor 125 lbs w/ 300ft anchor chain (3/8" HT) & chain stopper

• Chain counter

• Two Maxwell VC2500 vertical electrical rope winches for aft deck

• Hands-free anchor chain wash system – allows for cleaning of chain during anchor operation

THRUSTER / STABILIZERS:

• Side power® hydraulic bow & stern thruster with proportional control

• Side power ® hydraulic stabilizers (1,35SQM. x 2) with one monitor in pilot house

STEERING / CONTROL:

• Hydraulic steering system

• S/S rudders

• Bronze struts w/ cutlass bearing

• High performance, computer-designed and machined propellers

• Zincs on rudders, shafts

• Interior steering wheel Ultraleather wrapped (color: Fudge), exterior stainless steering wheel on FB

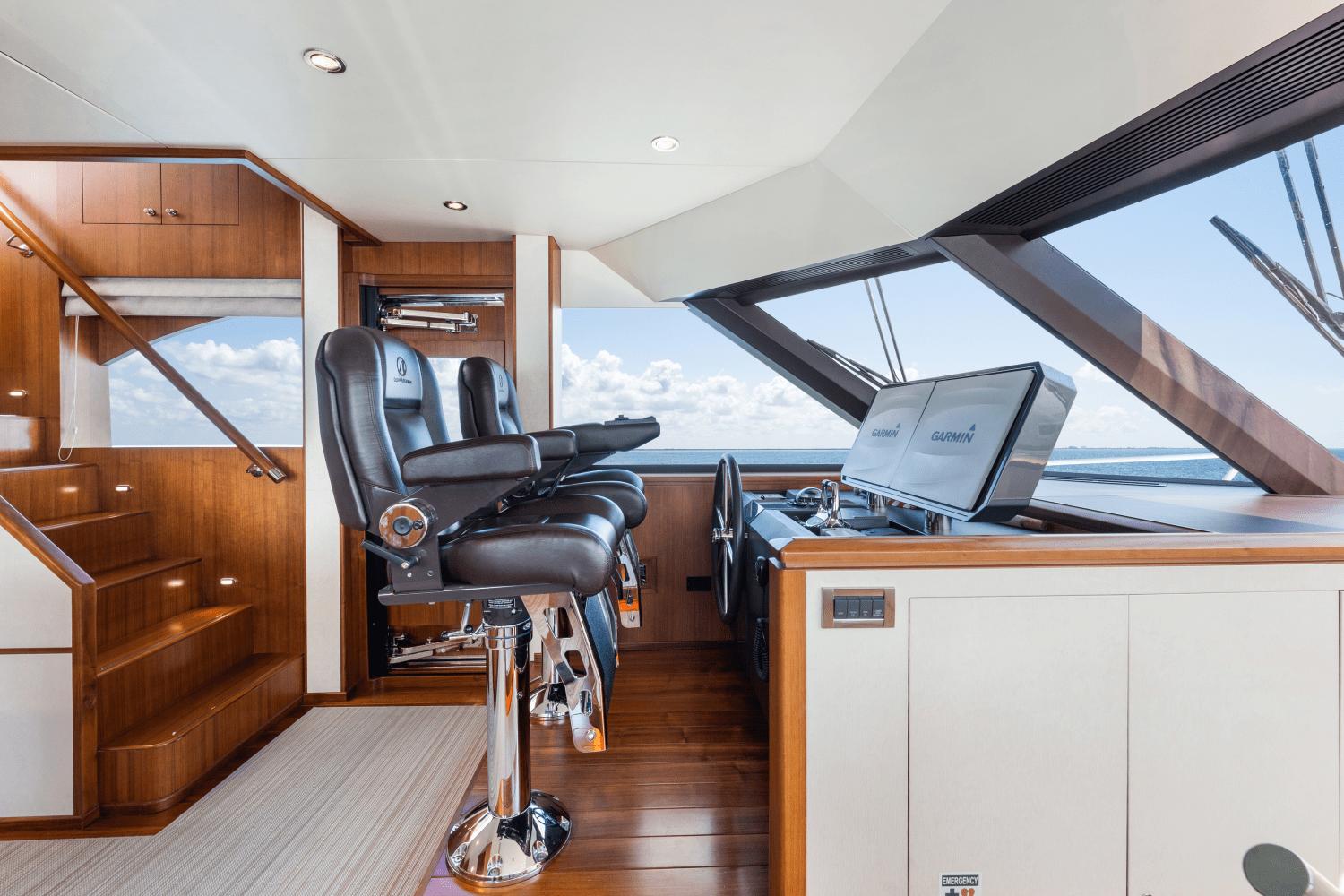

• Stidd® Electrical helm chair in PH x1 (color: Fudge)

• Stidd® Mechanical helm chair in PH x1 (color: Fudge)

• Two Stidd® Mechanical helm seats in FB (color: Polar)

• Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strength (comparable with Aqua 17). A no compromised approach adopted by the navies around the world

OTHER:

• Hydraulic 1750lbs davit

• Fire extinguisher system with engine-shutdown feature

• Oil change system for both engines and genset

• All engine room and bilge spaces shall be primed and top coated with polyurethane paint system

• Heavy-duty commercial grade pantograph windshield wipers & washers w/ intermittent function

• Color-coded piping for fuel, water and hydraulic system

• Heavy-duty Kahlenberg® air horn

• Aluminum diamond plate flooring in engine room

• Detailed stringers in engine room and lazarette

• Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment

PLUMBING

FRESH WATER SYSTEM:

• Headhunter pressure fresh-water system

• 2mm thickness 316 S/S water tank w/ sight gauge

• Fresh water wash down, at bow & stern & boat deck

• Dockside water connection

• Sea Recovery 900G/Day water maker w/auto fresh water flush operation, PH Neutralizer, UV sterilizer and Commercial Prefilter

• Seagull™ water purifier (ADEX design award winner w/ filtration to 0.1 microns & EPA certification for microbiological purification)

• Two 40-gallon water heaters with high density fiberglass insulation w/ dual high efficiency heating element that speeds heating by 50%

FUEL SYSTEM:

• 4.5mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system

• Dual Racor® fuel/water separator with Y-valves for engine & generator

• Filler for fuel tanks on both sides. (Unlike others where fueling is only possible on 1 side. This unique OA feature allows for concurrent and faster fueling & negates need to move boat to complete fueling)

• Gulfcoast™ Fuel polishing system based on US Military Abrahams-M1 Tank design

• Fuel system with venting and “catchment system” designed for burps or overflow accidents (Unique OA feature. Often ignored by competitors which can lead to high fines and insurance cancellation)

HOLDING TANK SYSTEM:

• ECOmar™ waste treatment system (600Gal/day)

BILGE / DISCHARGE:

• Common drainage system for bar sink, shower, bilge & exterior deck

• Bilge pump in forward and aft of engine room

• Automatic bilge pump - The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by weather-tight bulkheads. High water alarms will be mounted in each of these bilge zones

• 24V shower sump pumps

• Dry bilge area arrangement in center of engine room

• Lighted bilge with built-in (when necessary) S/S ladder (Unique OA Feature)

ELECTRICAL

BATTERY:

• Heavy-duty batteries

• 100AMP Charger

• Battery paralleling system with control switch

• Service battery switch

• Engine battery isolation switches

• AGM Batteries with 40F to 140F operating temp and industry leading low self-discharge rates 1 to 3% AC / DC SYSTEM:

• AC outlets throughout

• All primary AC & DC electrical wiring is appropriately labeled throughout the yacht

• GFI (110V) AC outlet

• 24 Volt system

• Engine battery isolation switches

• Octoplex NMEA 2000 Monitor R electrical control system. Based on aerospace technology for remote activation, control and status reporting of all AC and DC breakers. Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication, dimming and usage information with touch screen monitors that are user reconfigurable. Brown-out configurable control through auto load shedding is included where operator designated equipment (e.g. navigation and other essential

systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp. (Unique OA standard feature, not an optional upcharge like

competitors)

• Shore power receptacle with Iso-Boost 100+50 AMP in transom with cable master (OA is unique in making this a standard vs. optional. Cleans & boosts questionable shore to better protect sensitive equipment onboard.)

AIR CONDITIONING:

• Dometic® systems throughout, rated for “Extreme Tropical Climates” (with reverse cycle for operation down to 40°F water temp)

• Refrigerant type is accepted worldwide under the Montreal Protocols

• Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%. Also reduces dB reading by over 7 dB (Design cues from 135)

• Air-conditioning rated for Extreme Tropical climates

• Dometic air purification package

• FB air condition 24,000 BTU

NAVIGATION PACKAGE:

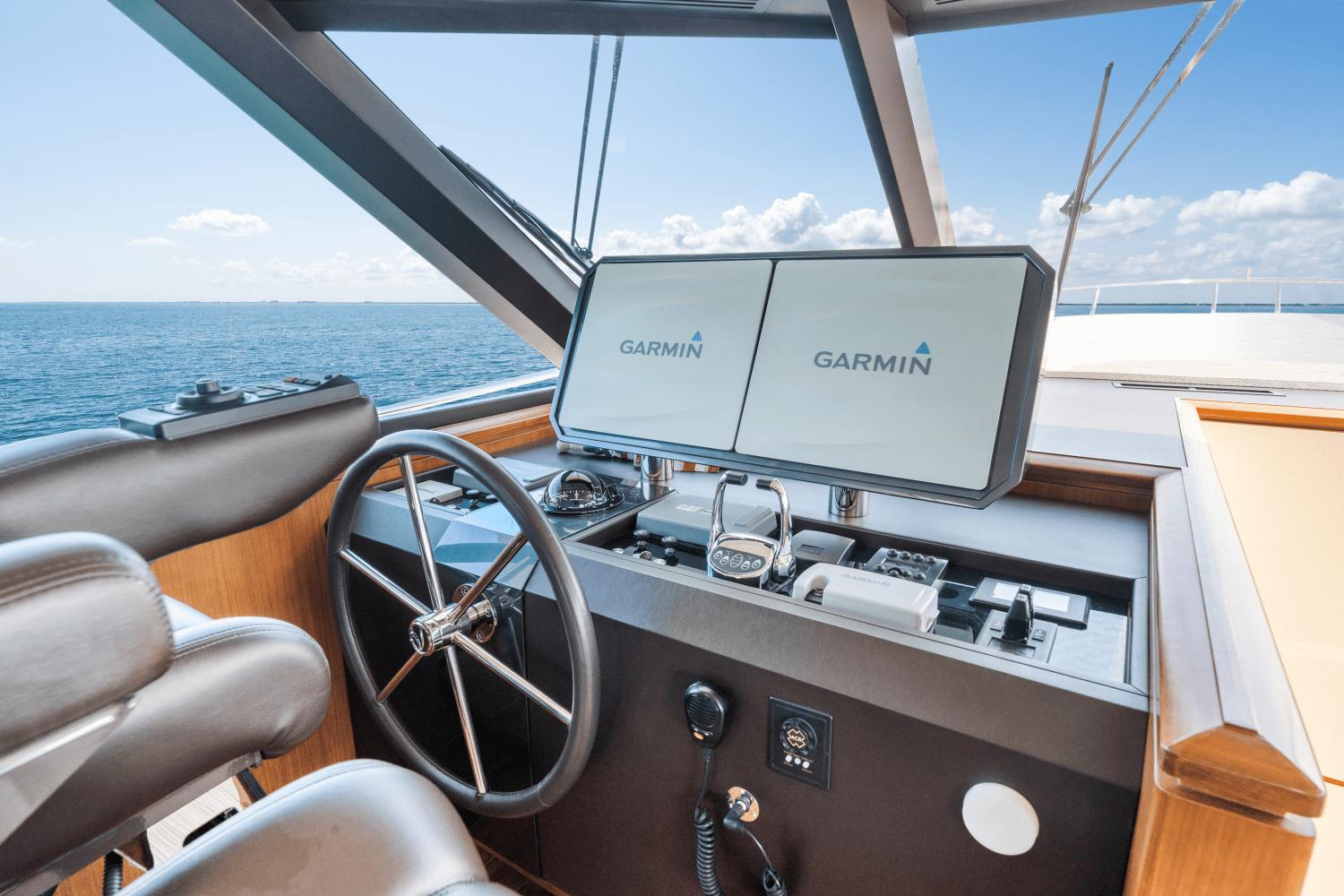

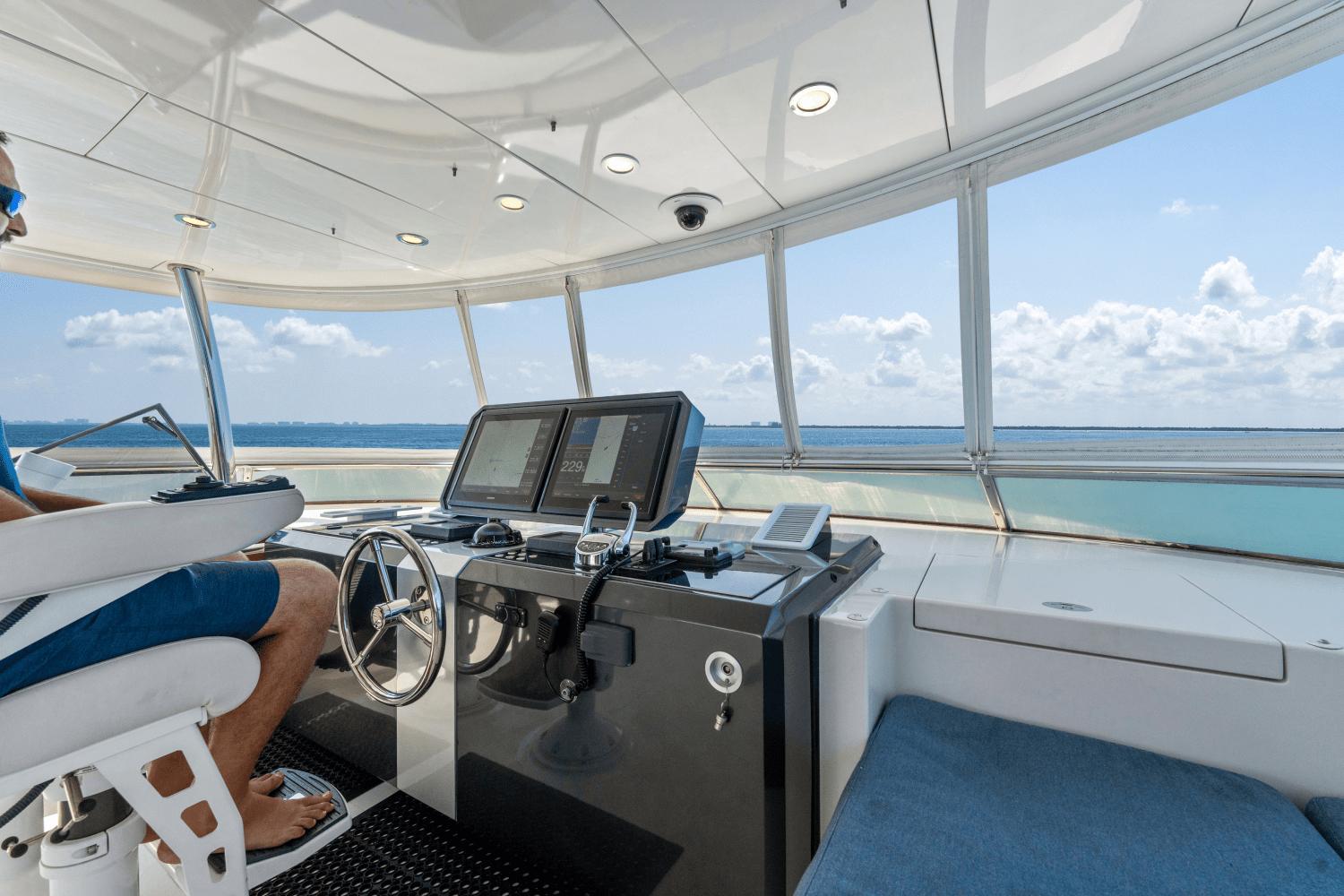

• Garmin 8500 Series Black Box with 19”Touch screen (Two screens lower station, Two screens upper station)

• Garmin GRID remote input device installed on helm chair

• Garmin 12KW Open Array Radar

• Garmin Autopilot GHC20

• Garmin VHF and Card Reader

• Garmin Blackbox sounder

• Garmin AIS with NMEA GPS

• Garmin MI 20 Digital Marine Multi-display

• Garmin Marine Camera (2 in engine room and 1 aft deck)

• Triband HD7 with DIRECTTV® receivers

• Ritchie Compass 5"

N2KVIEW SAFETY & SECURITY MONITORING PKG:

• These security/safety automatic monitoring and alert abilities include using Apple iPad or Android for wireless access to operate, view, and alarm Octoplex data and navigation system with a fully customizable screen layout, and remote notification (cell phone) capability.

• These monitoring abilities include: Main Engines and Generators, AC Monitoring, DC House Bank Battery Monitoring, Engine Room Weather-tight Bulkhead Doors, Tank Levels, Fire System, Bilge Level (High-water), Exterior Door Sensors

• Unique OA standard feature, not an optional upcharge like competitors

LIGHTING:

• 24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander) Scene programmable lighting with dimming function built-in (new for 2016)

• Convenience lights

• International navigation lights

BONDING SYSTEM:

• Bonding system throughout

• The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent

OTHER:

• Iso-Boost on 50 AMP and 100 AMP Shore power

• Iso-Boost Package for both shorepowers. ISO boosting isolates and boosts the boat’s AC electrical system against potentially dangerous shore power fluctuations. Eliminates needs for polarity alarm and galvanic isolators. (Standard versus optional with competitors)

• Onboard intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router. Allows outside 4G Internet card and/or internal intranet net connection via supplied iPad to Systems monitoring, Garmin and other onboard equipment apps. (Unique OA feature)

• Smart Y-adaptor

ACCOMMODATIONS/INTERIORS, AUDIO/VIDEO

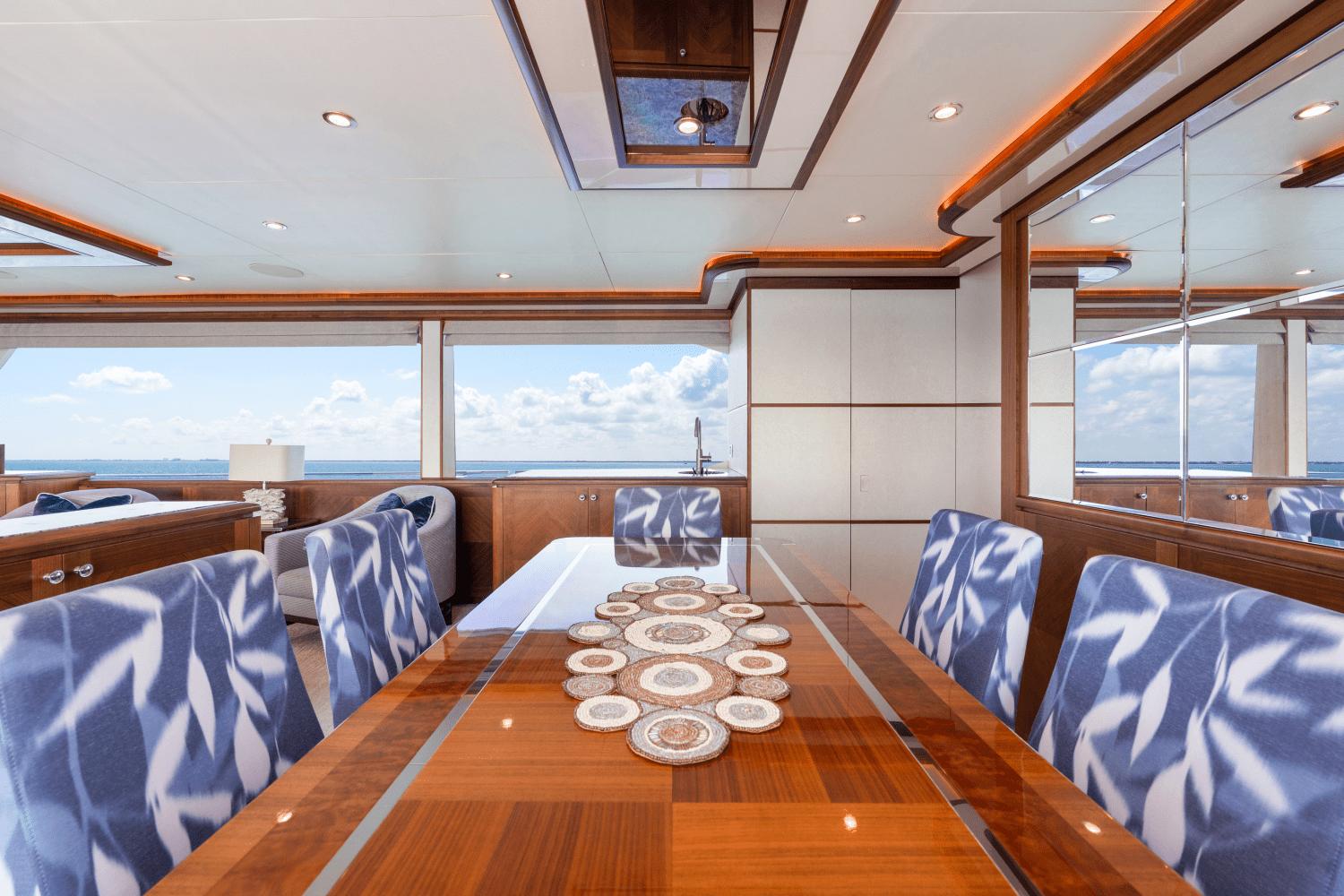

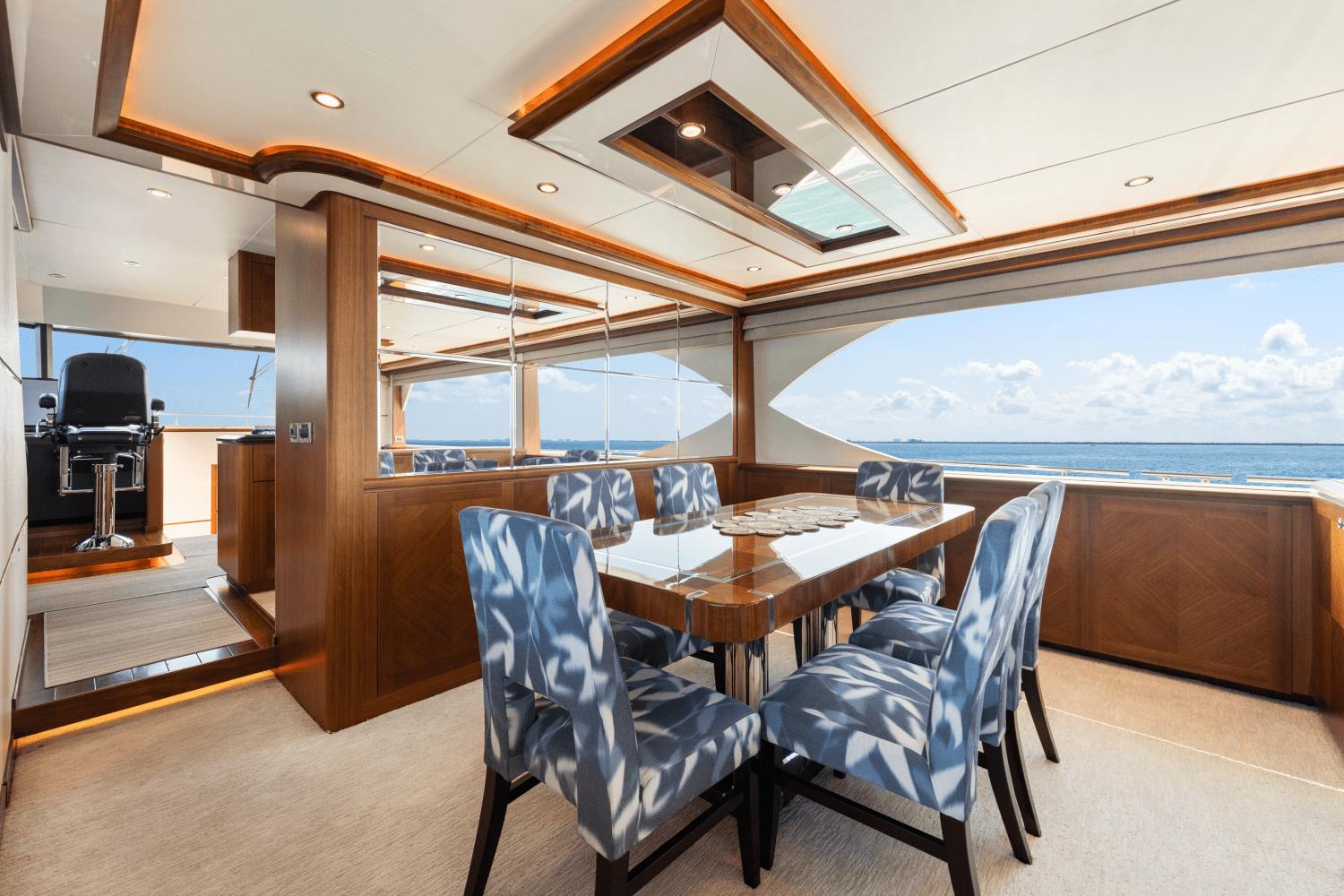

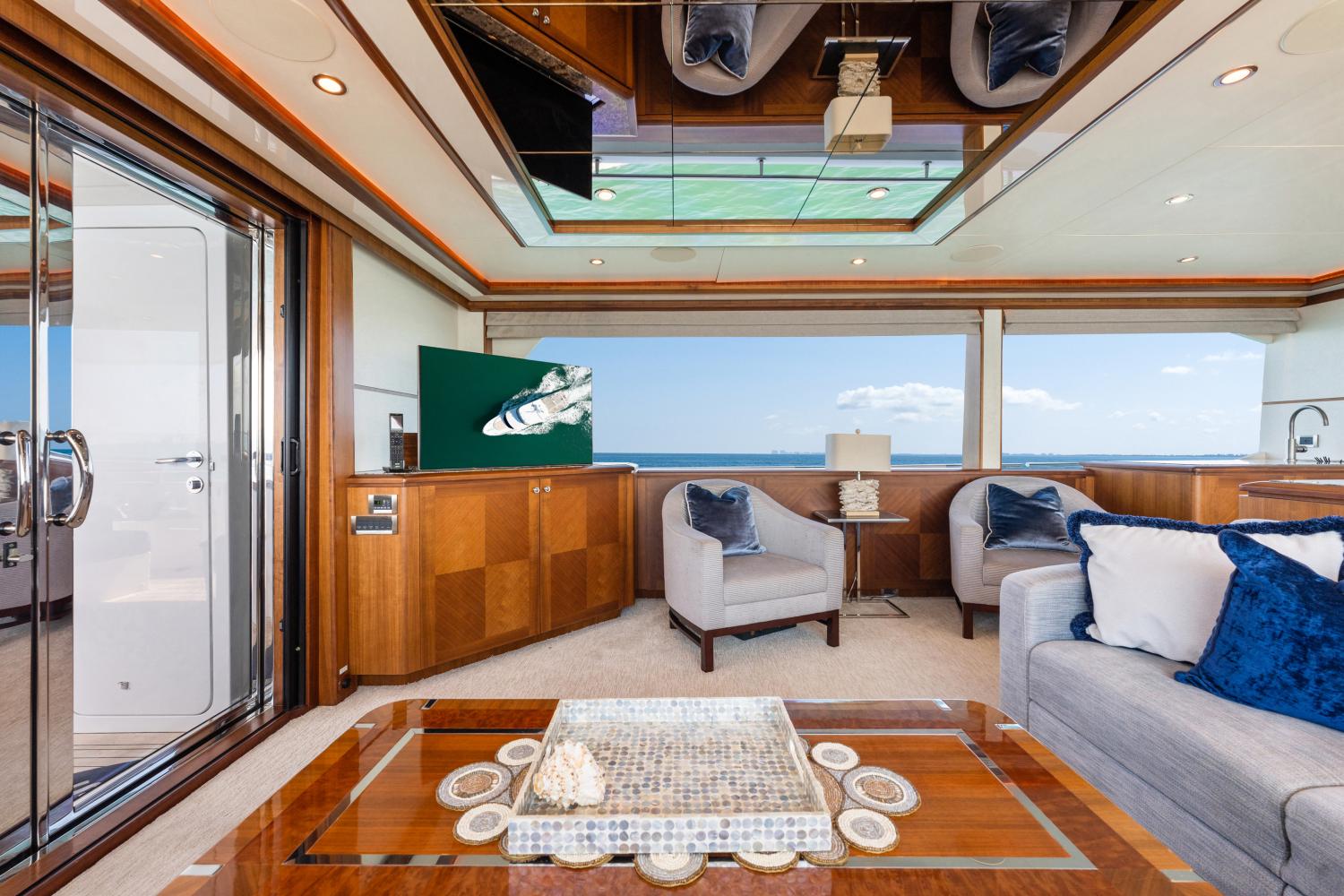

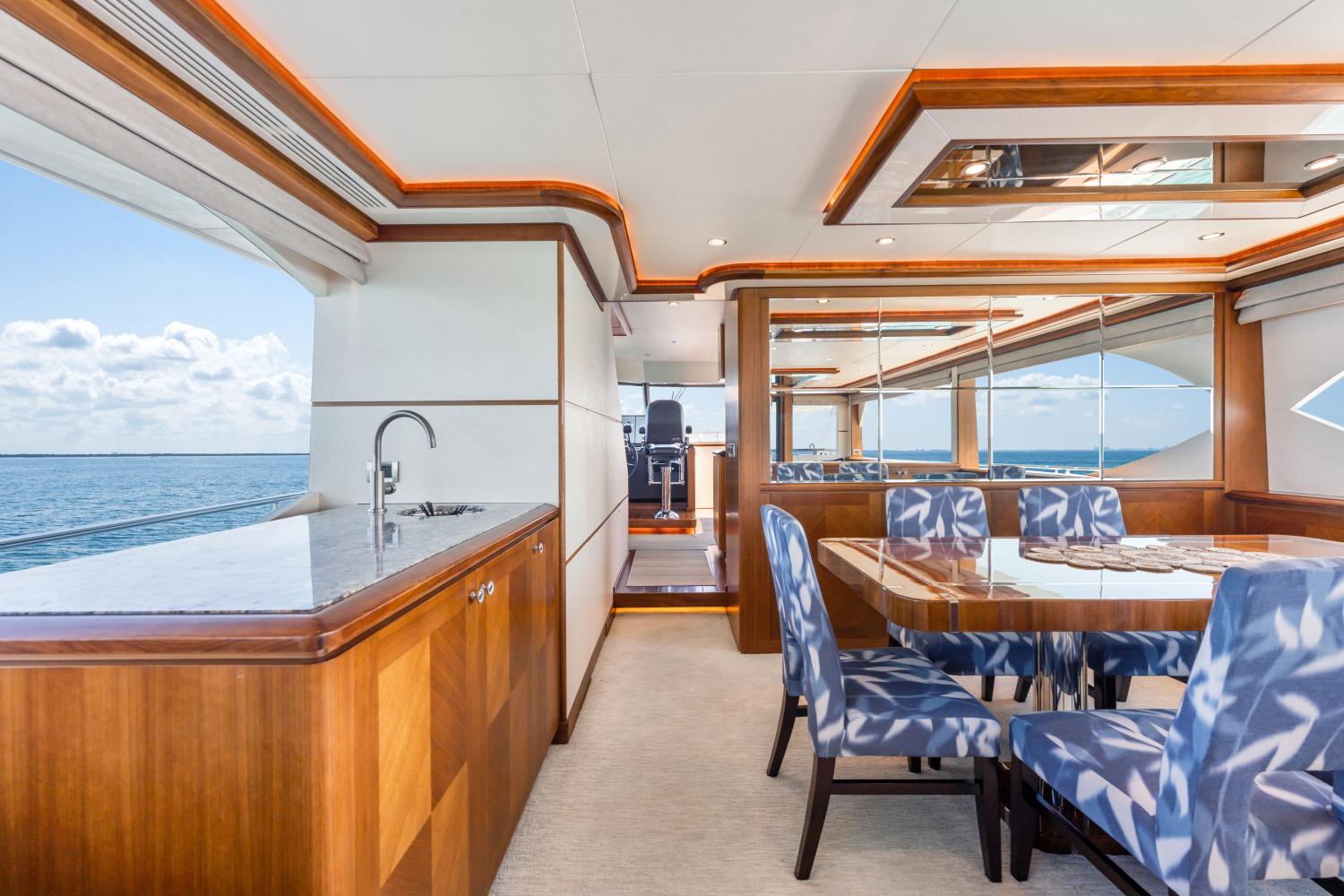

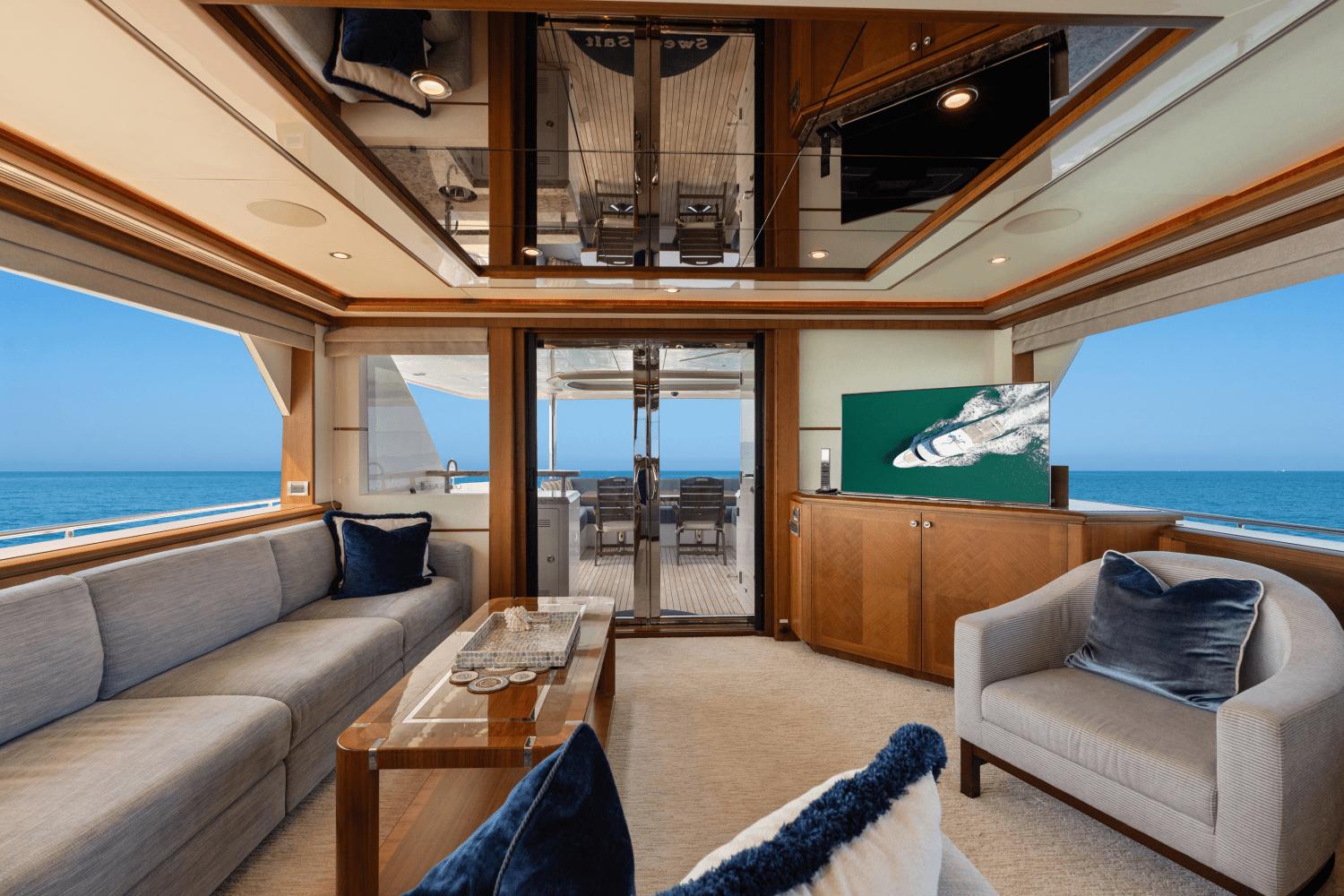

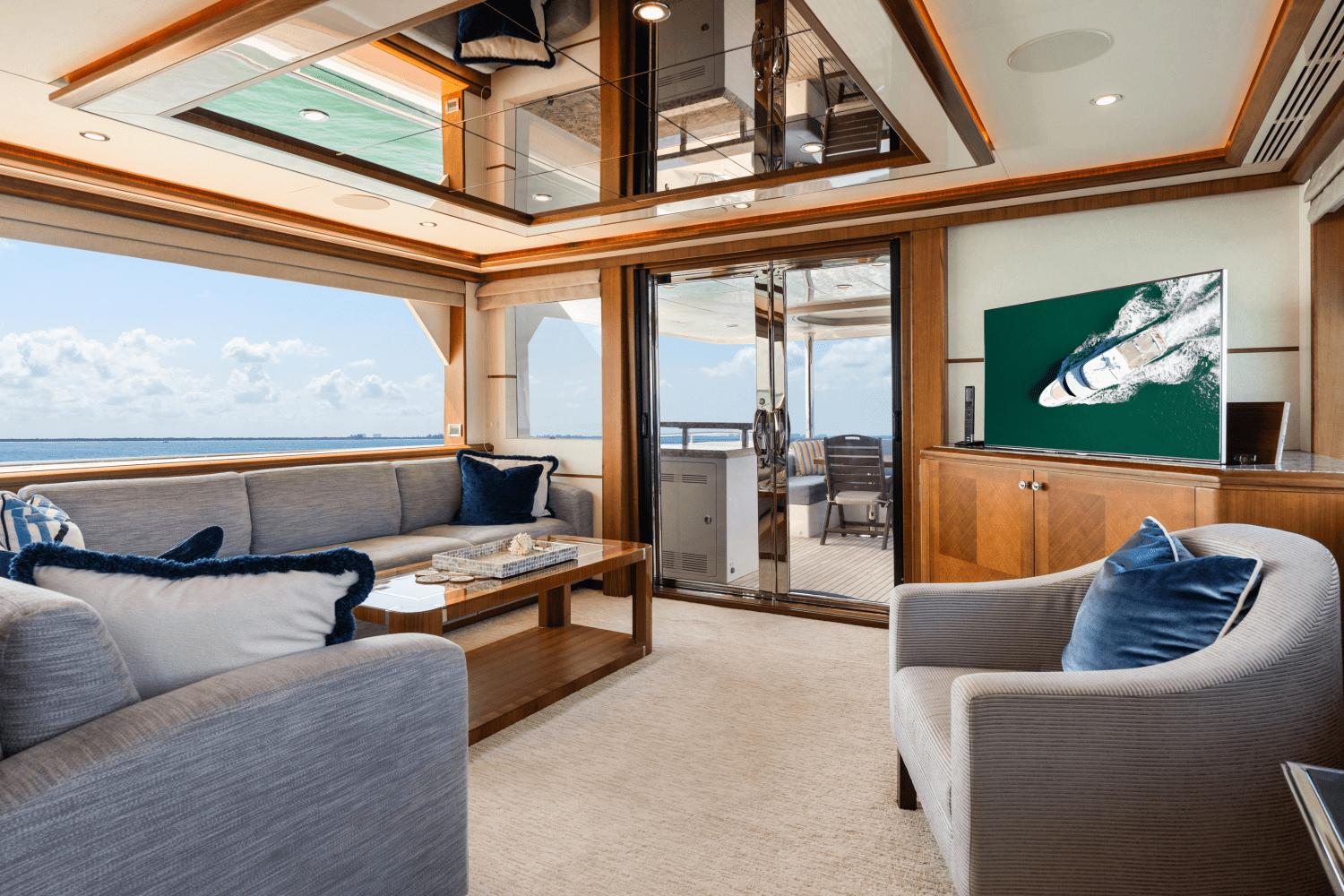

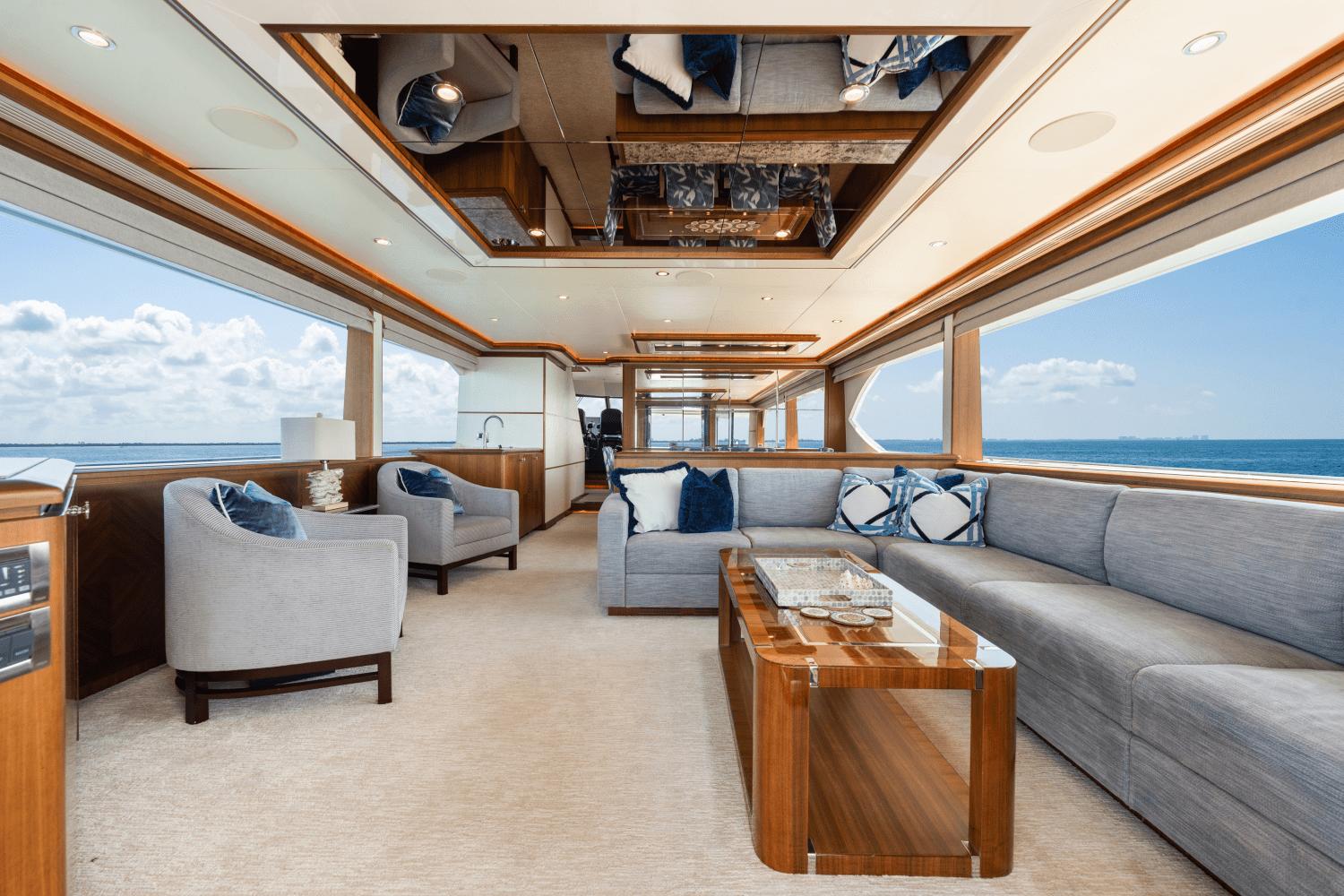

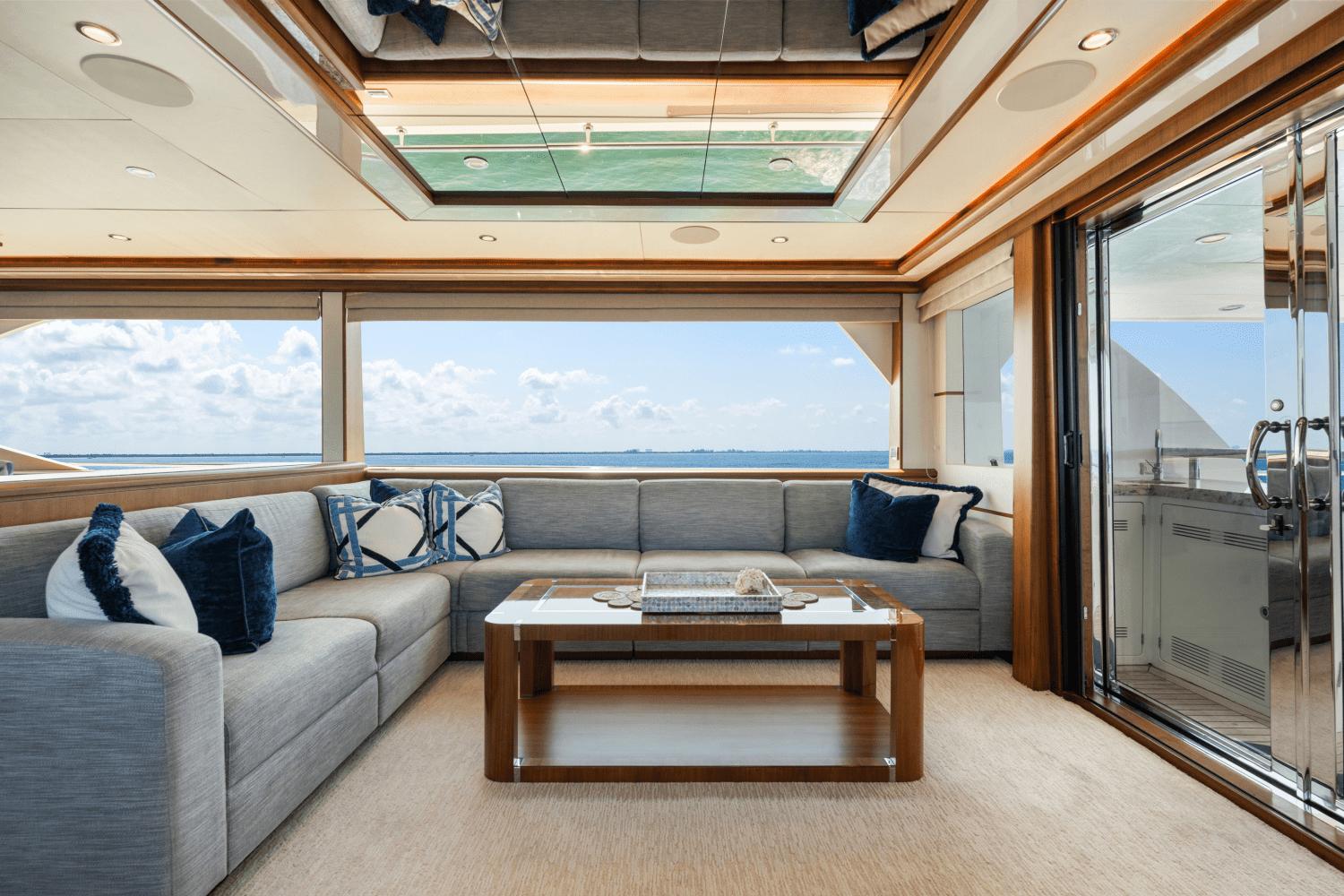

SALON:

• LED 46” TV with A/V System with subwoofer

• Phantom screen (for insects + pollen protection) with dedicated wood box for door

• Custom-designed salon table

• 14” Sunpentown wine cooler inside cabinet

• Wood paneling and cabinetry in diamond wood grain pattern (where possible)

• Blue flower countertop at wet-bar and TV cabinet & counter top

• Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse. Incorporate (where possible) A/C outlet from ceiling, provides unobstructed view to outside (Design cues from 135, improved for 2016)

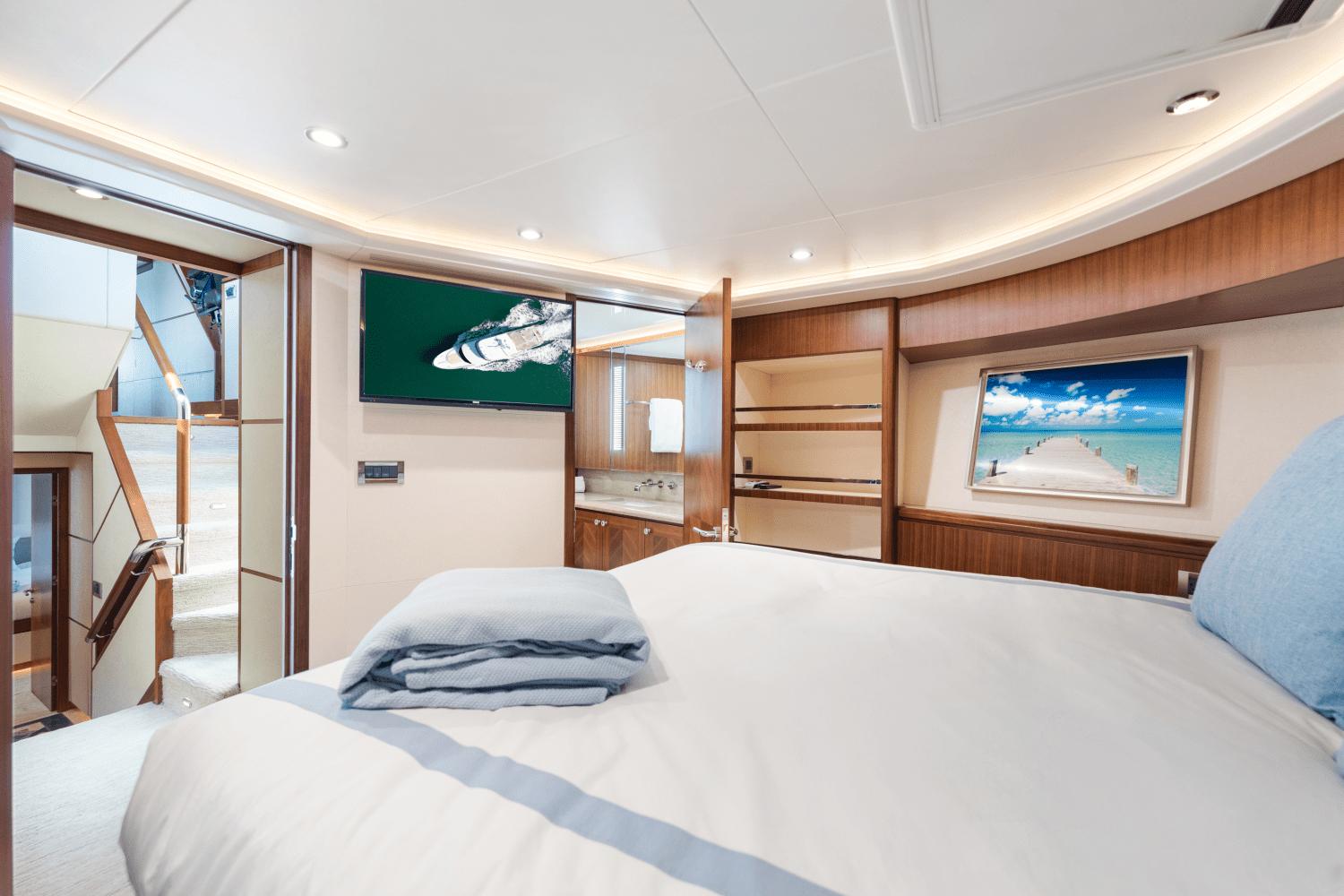

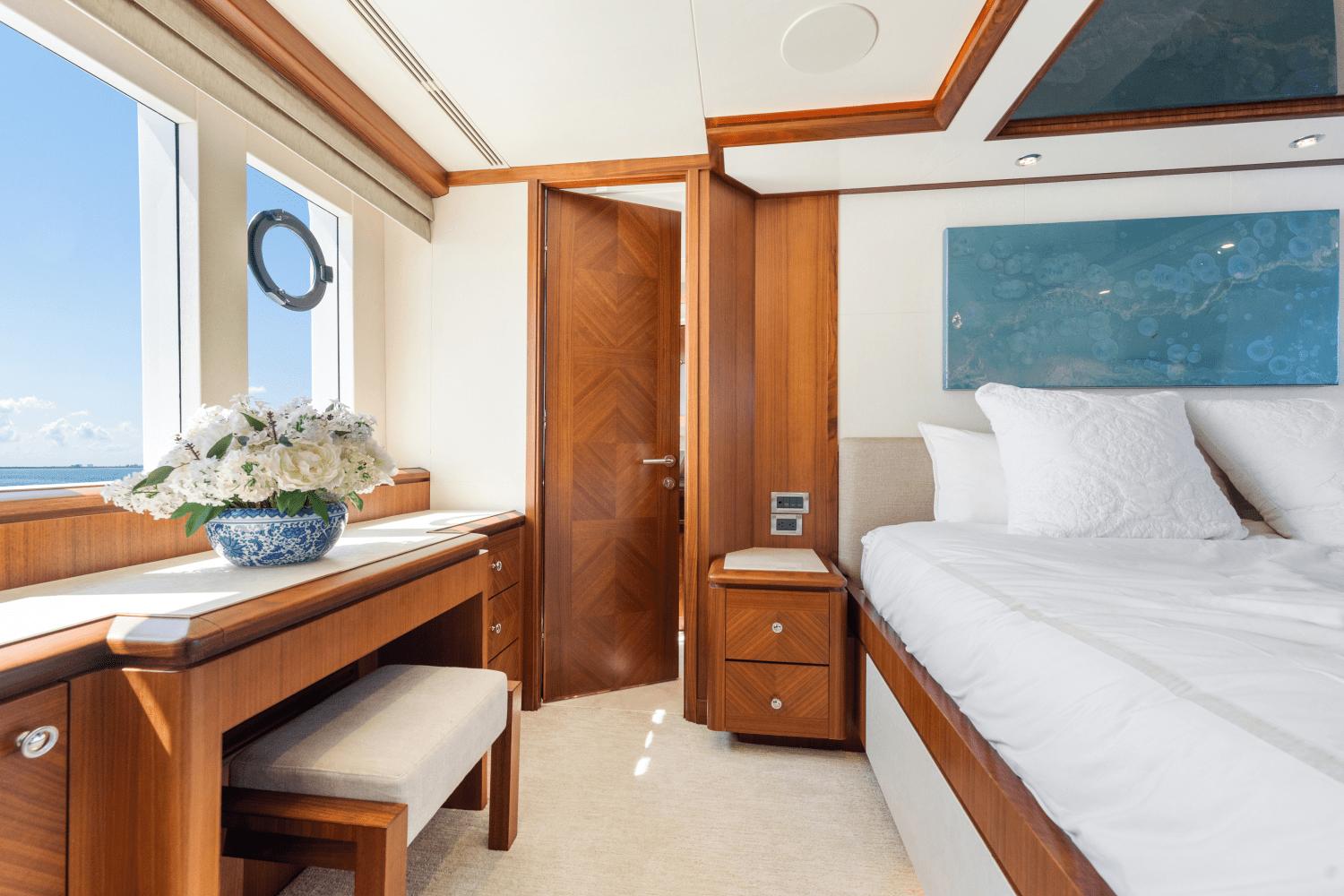

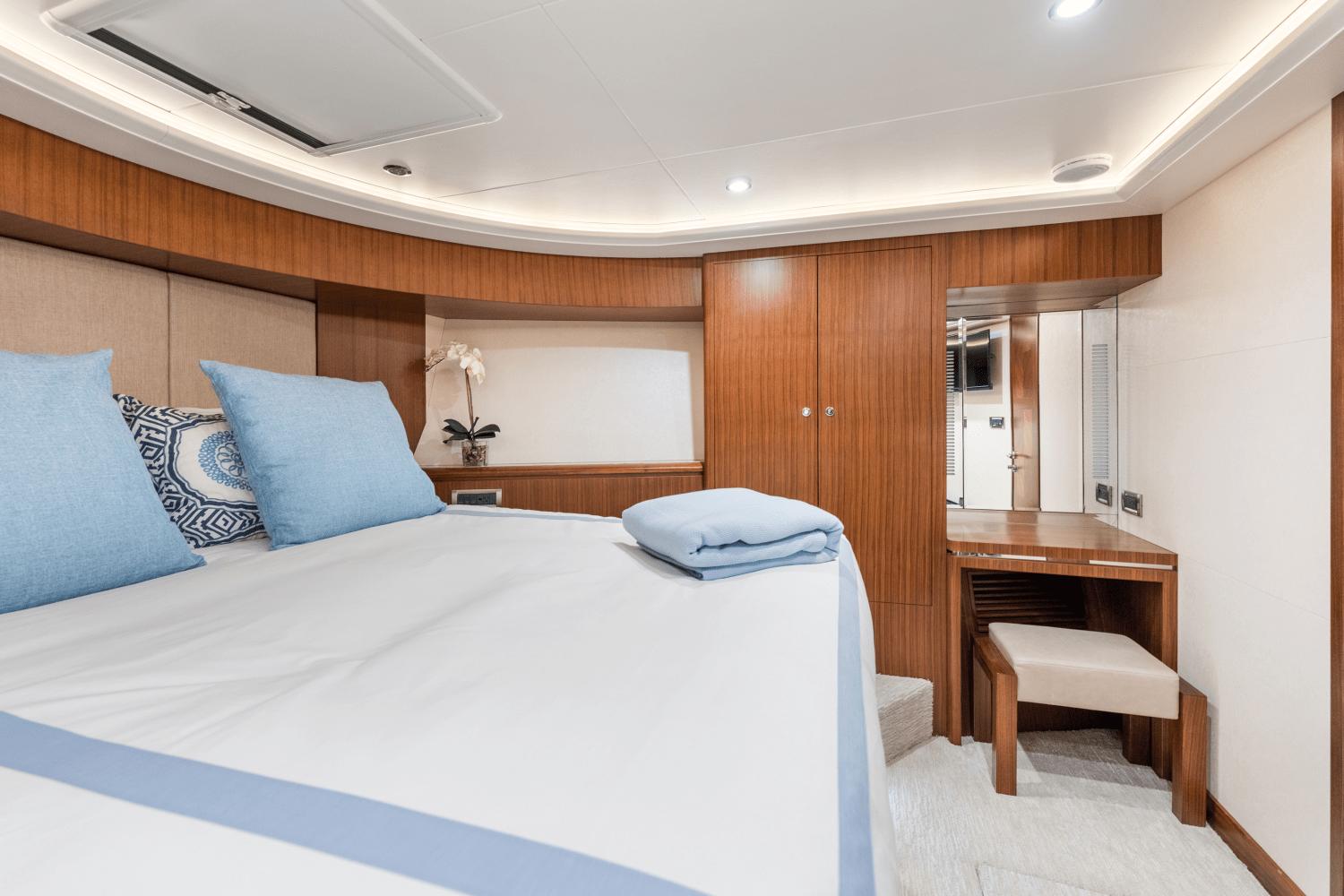

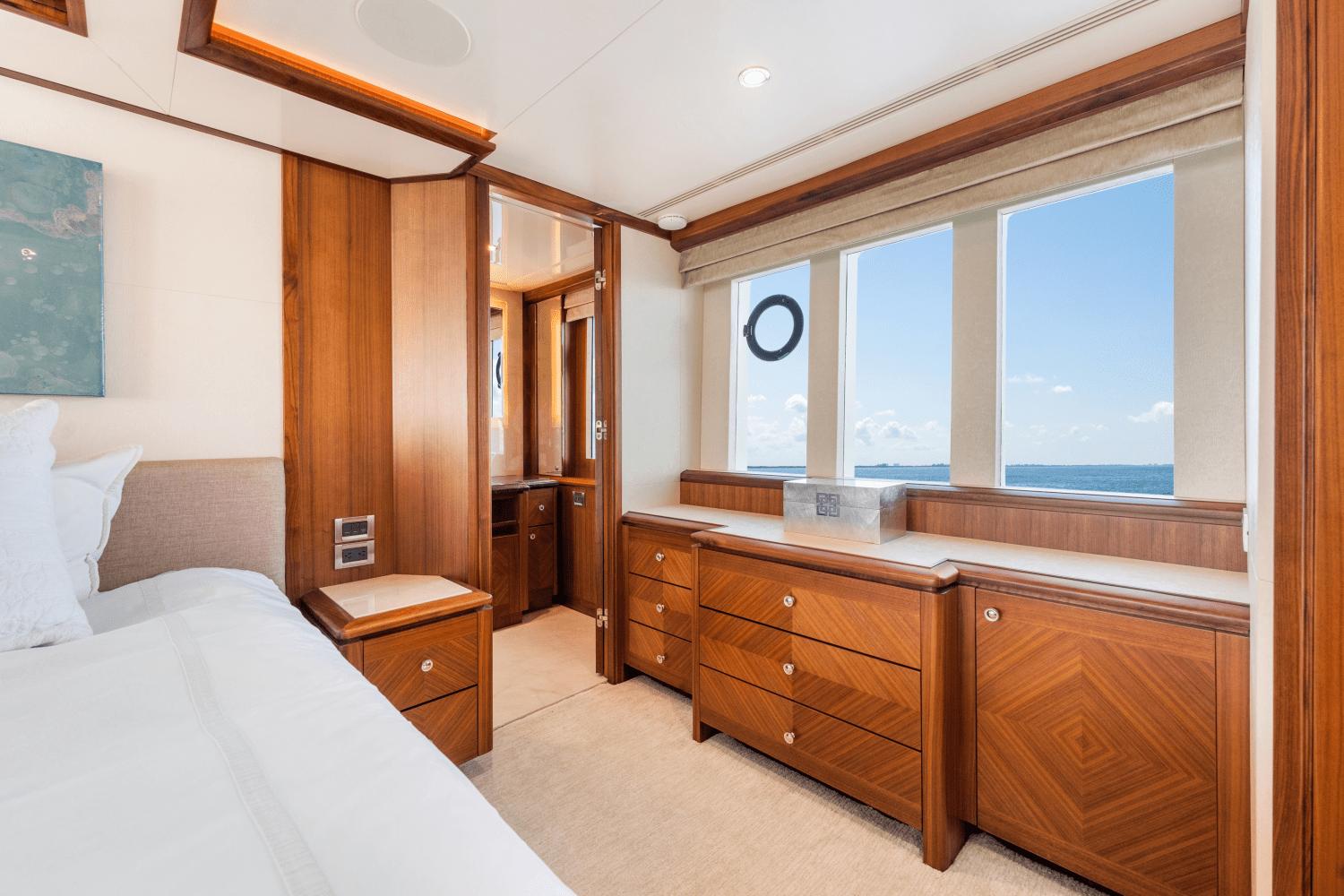

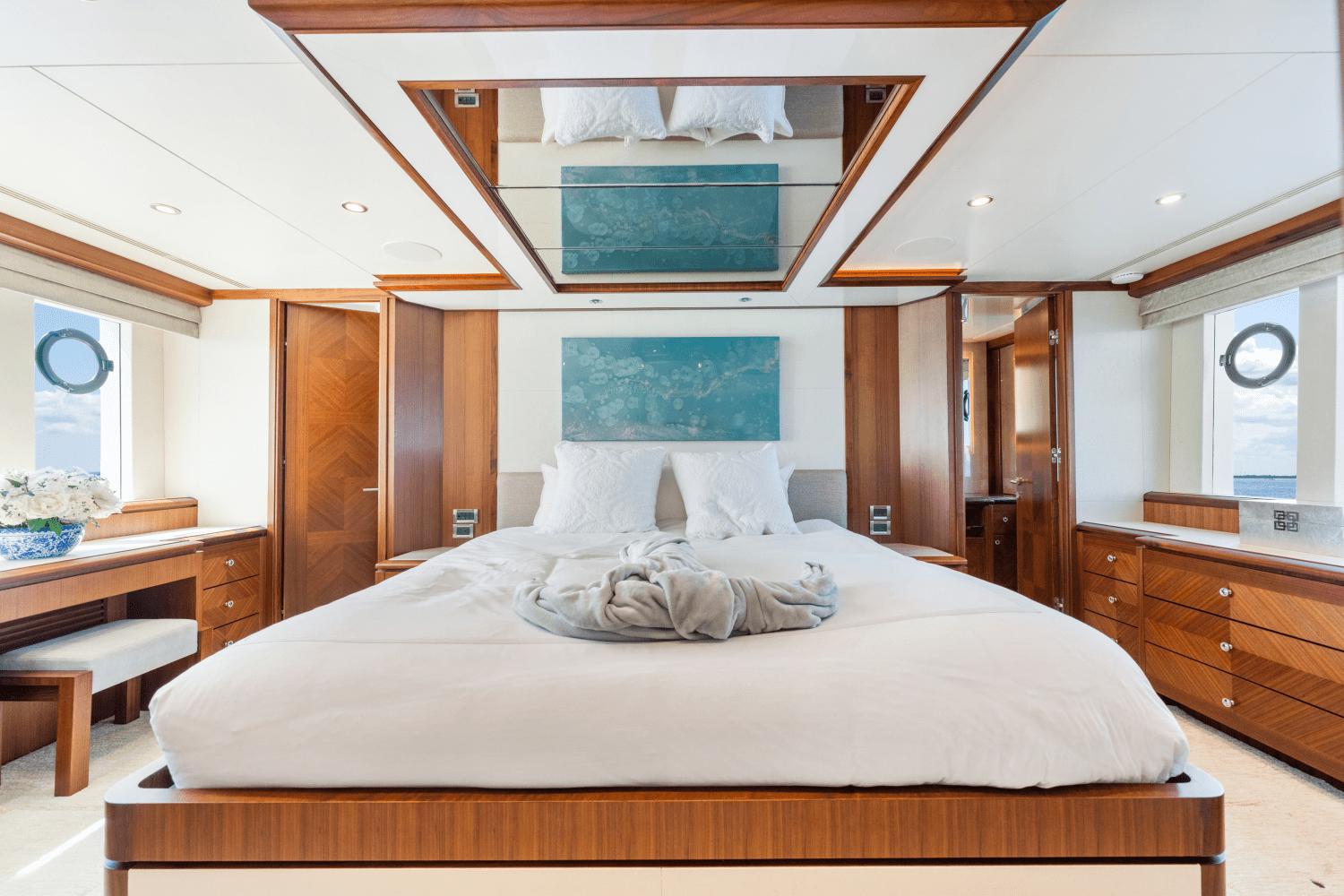

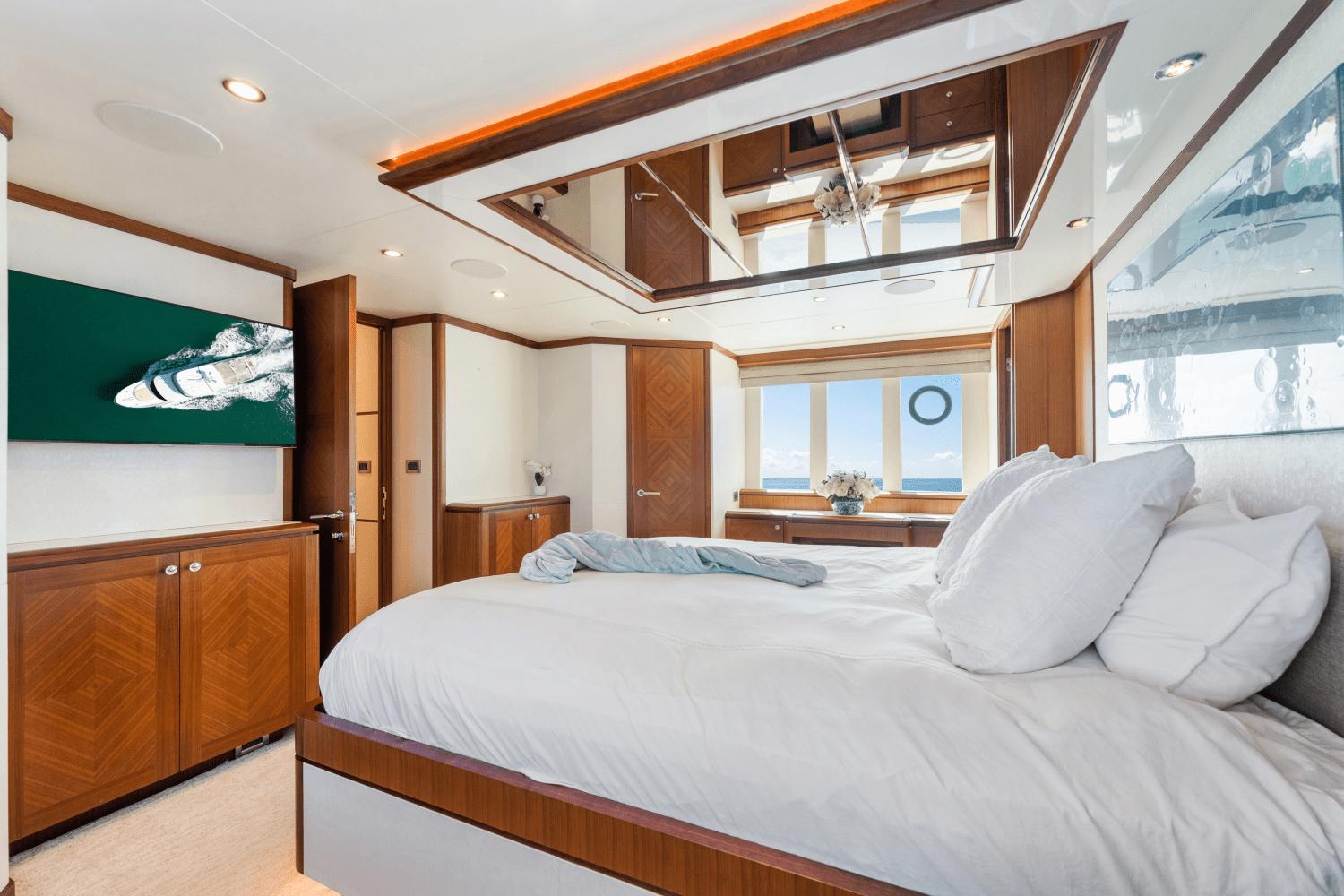

MASTER STATEROOM:

• LED 40” TV with A/V System

• One Sub-woofer

• King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement)

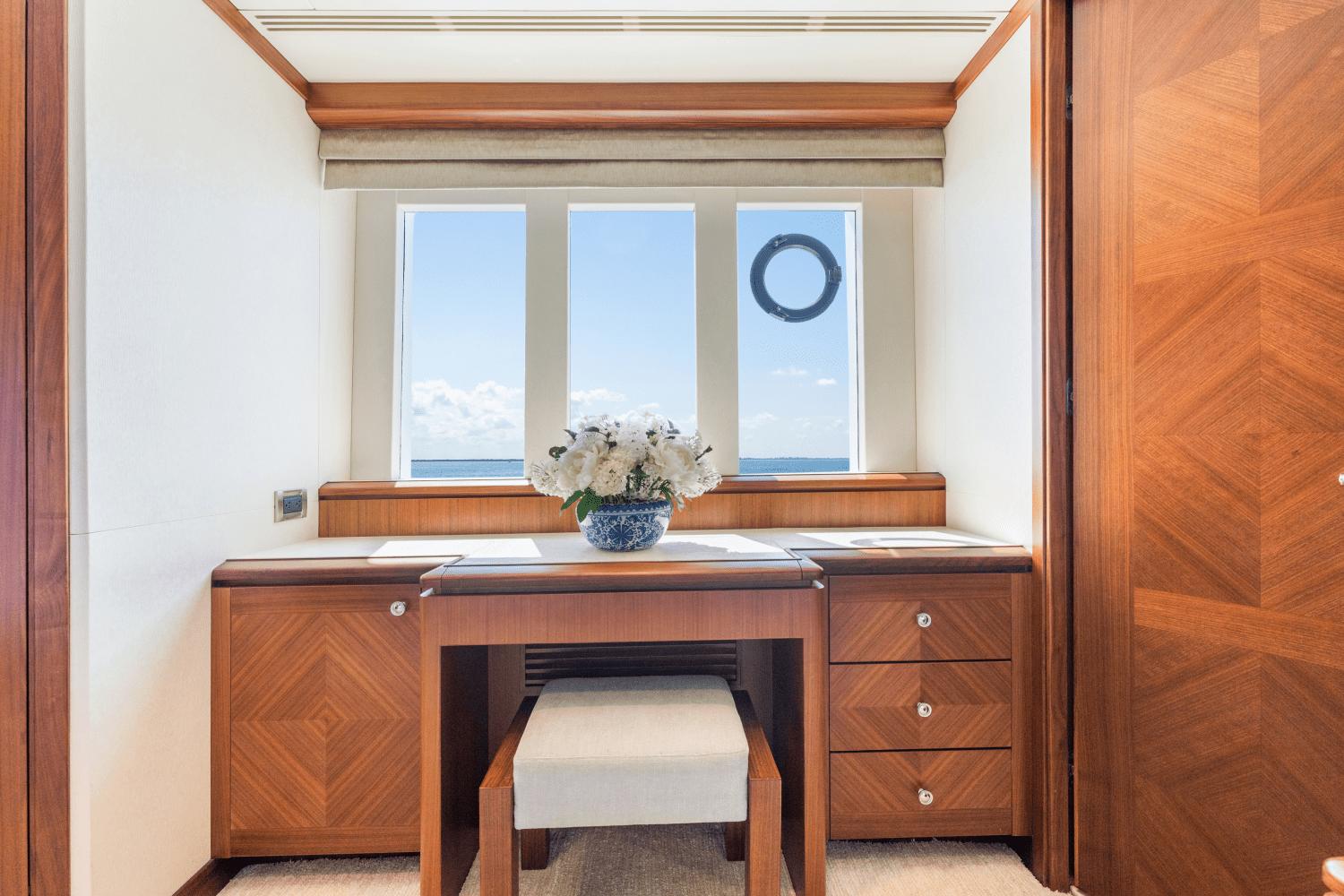

• Built-in vanity on starboard side and sofa on port side

• Safe in hanging locker

• Two Ancient Crepito counter top nightstands

• Ancient Crepito countertop at TV cabinet and port/STBD cabinetes (New for 2016 – design cues from 120)

• Bureau and vanity on STBD side and bureau with chest drawers on Port side

• Enlarged Master bathroom window with updated cabinetry to take advantage of additional 320% additional window visibility vs. previous port light

• Dual-sink head with shower and dimmable LED vanity mirror

• Enlarged windows with custom engineered solution incorporating aluminum beams and “sandwiched glass” construction technique from classed vessels. Allows of 28% greater visibility and incoming light

• Full-height, cedar-lined hanging lockers with automatic lighting

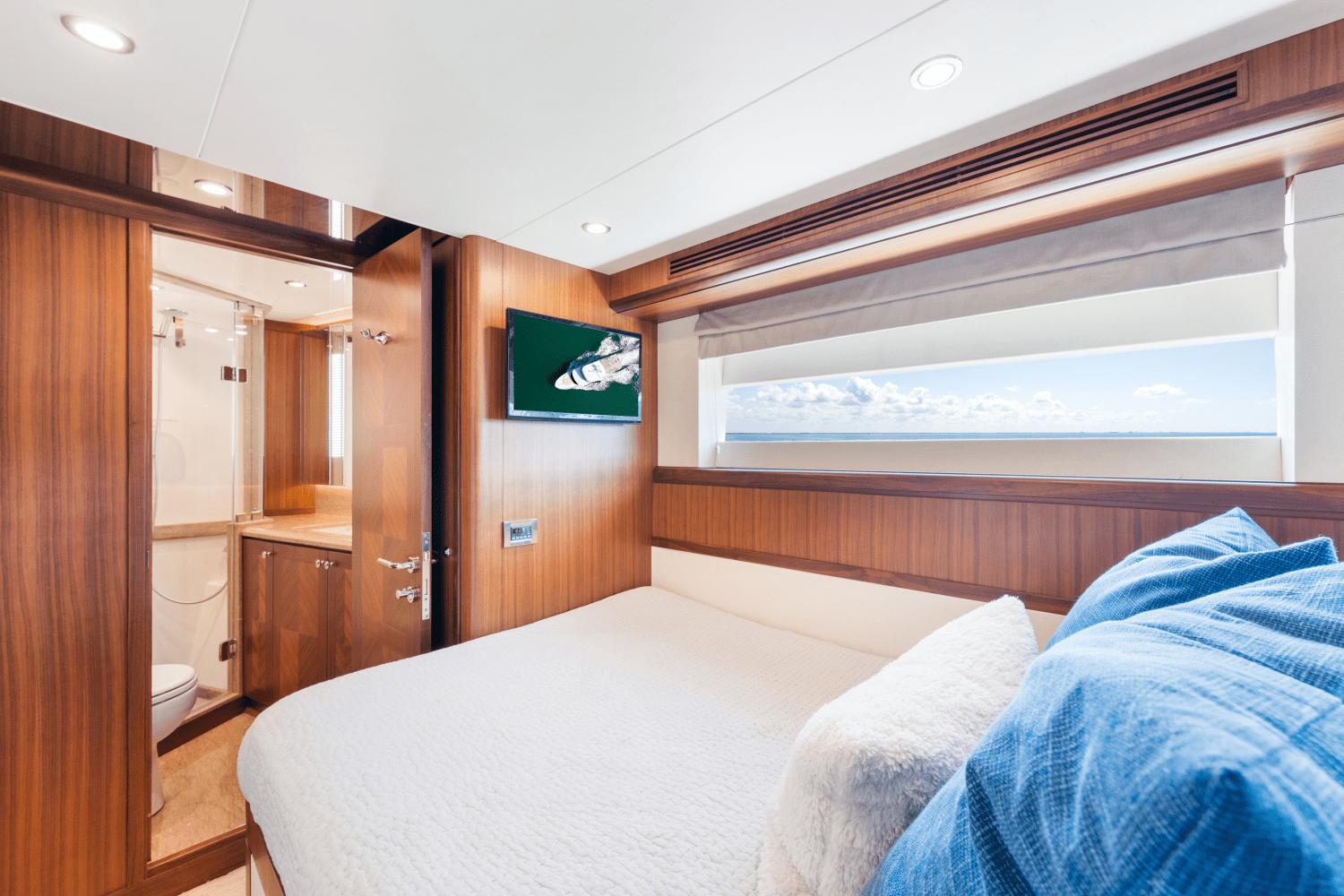

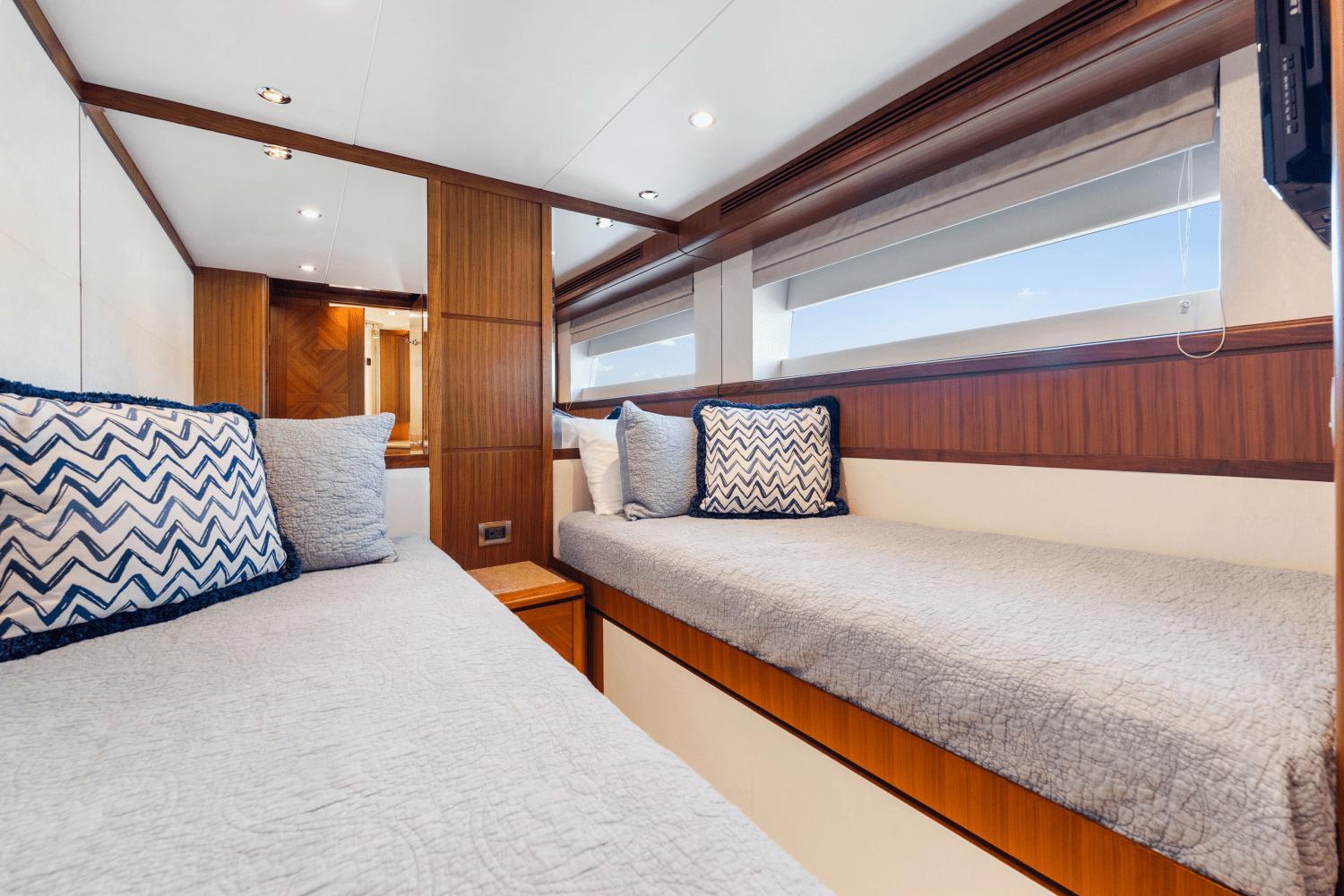

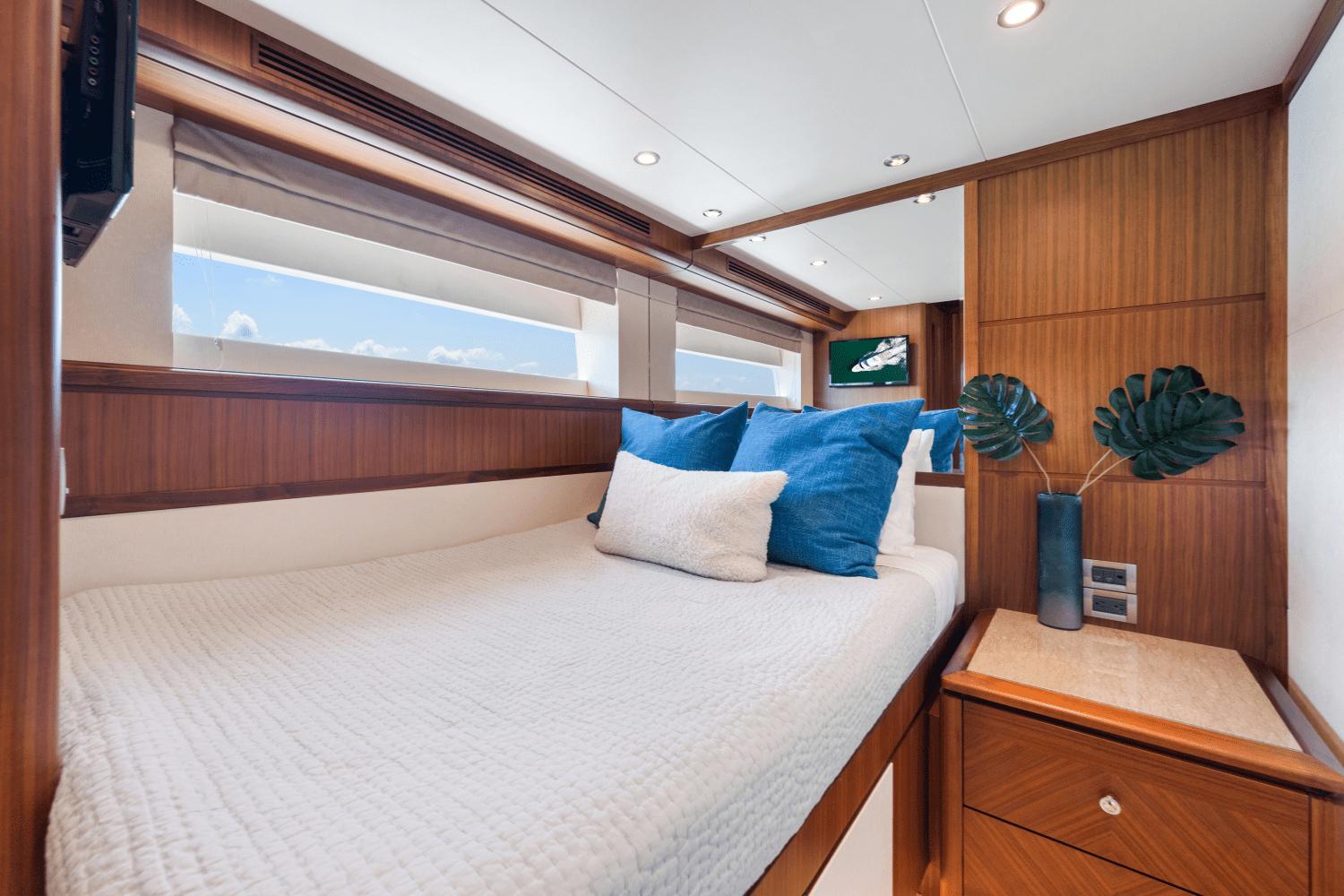

GUEST STATEROOM/ VIP:

• Queen-sized berth

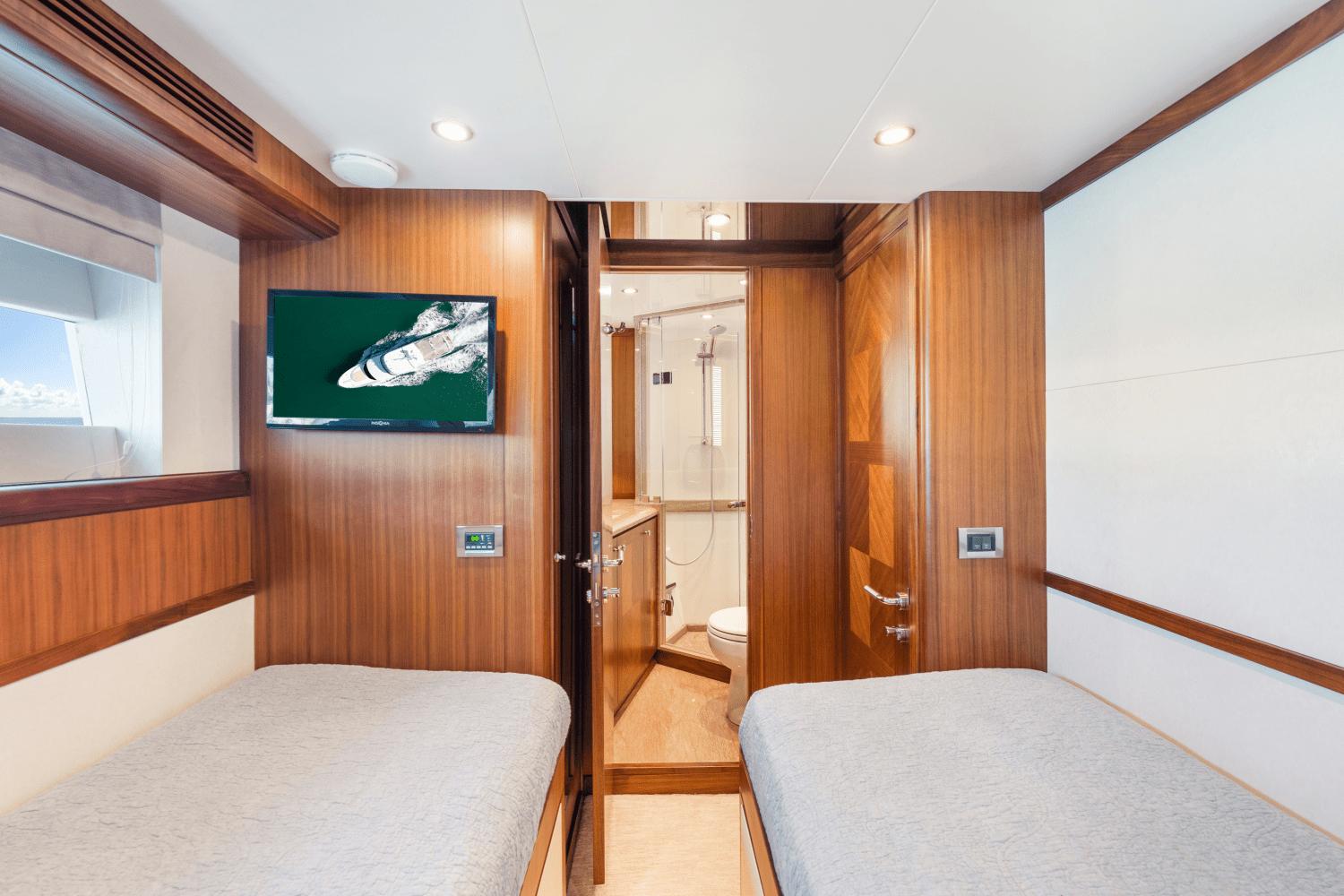

• Single/double lower berths, fabric covered (Port guest stateroom)

• Dressing mirror

• LED 24” TV & DVD with Satellite Receiver

• Cedar-lined hanging lockers with automatic lighting

• Head with stall shower

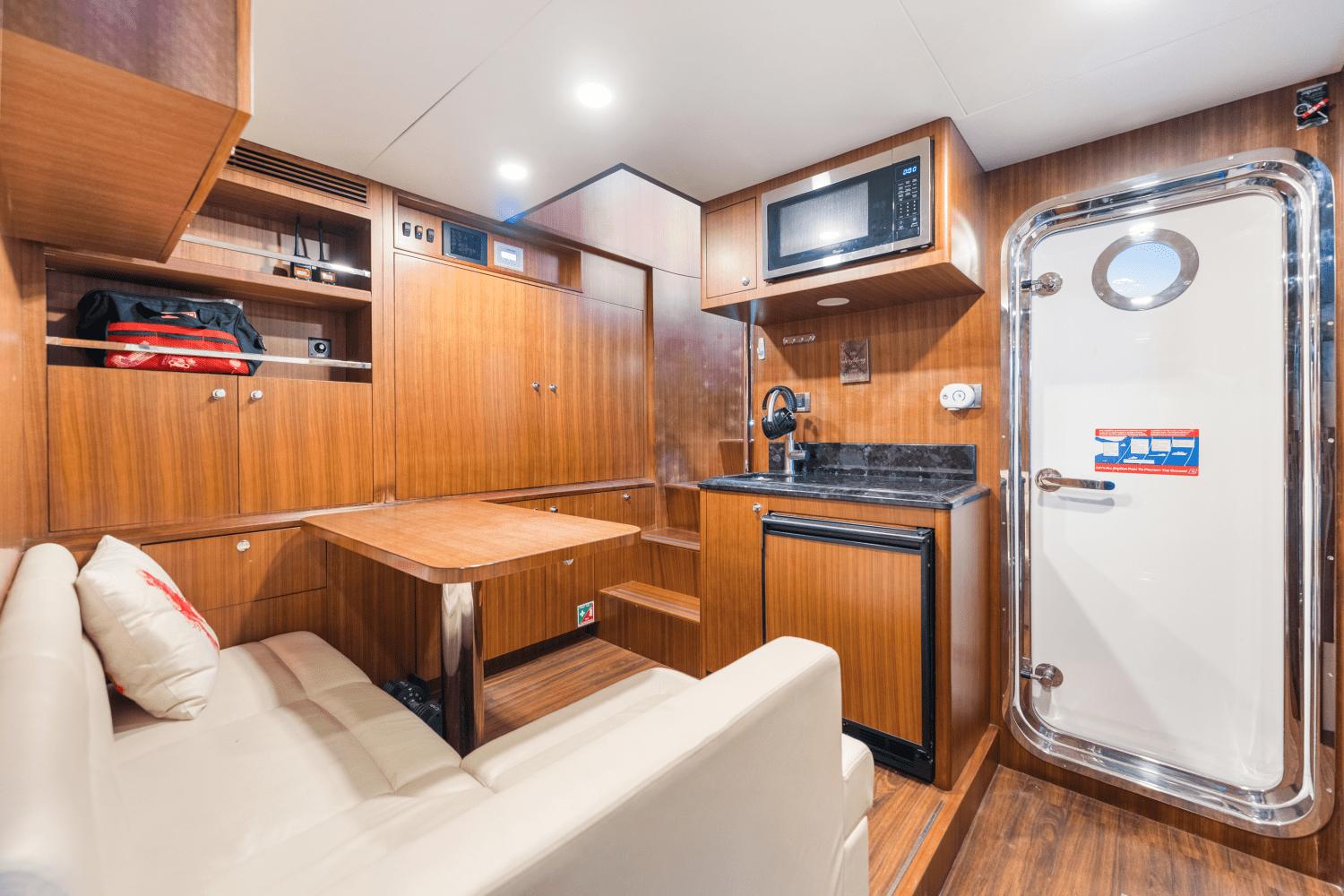

CREW QUARTERS:

• Cedar-lined hanging locker with automatic lighting

• Kitchenette (sink, microwave and refrigerator/icemaker)

• Storage locker

• Drawers under bunk

• Microwave Oven

• LED 24” TV & DVD with Satellite Receiver

• Snap-on tool chest under work bench/Pullman berth

• Lazarette space increased by 28% via opening up space under aft decking seating for additional storage. Shelf and sea-rails included.

• Amtico flooring

• Brown Antique counter on head

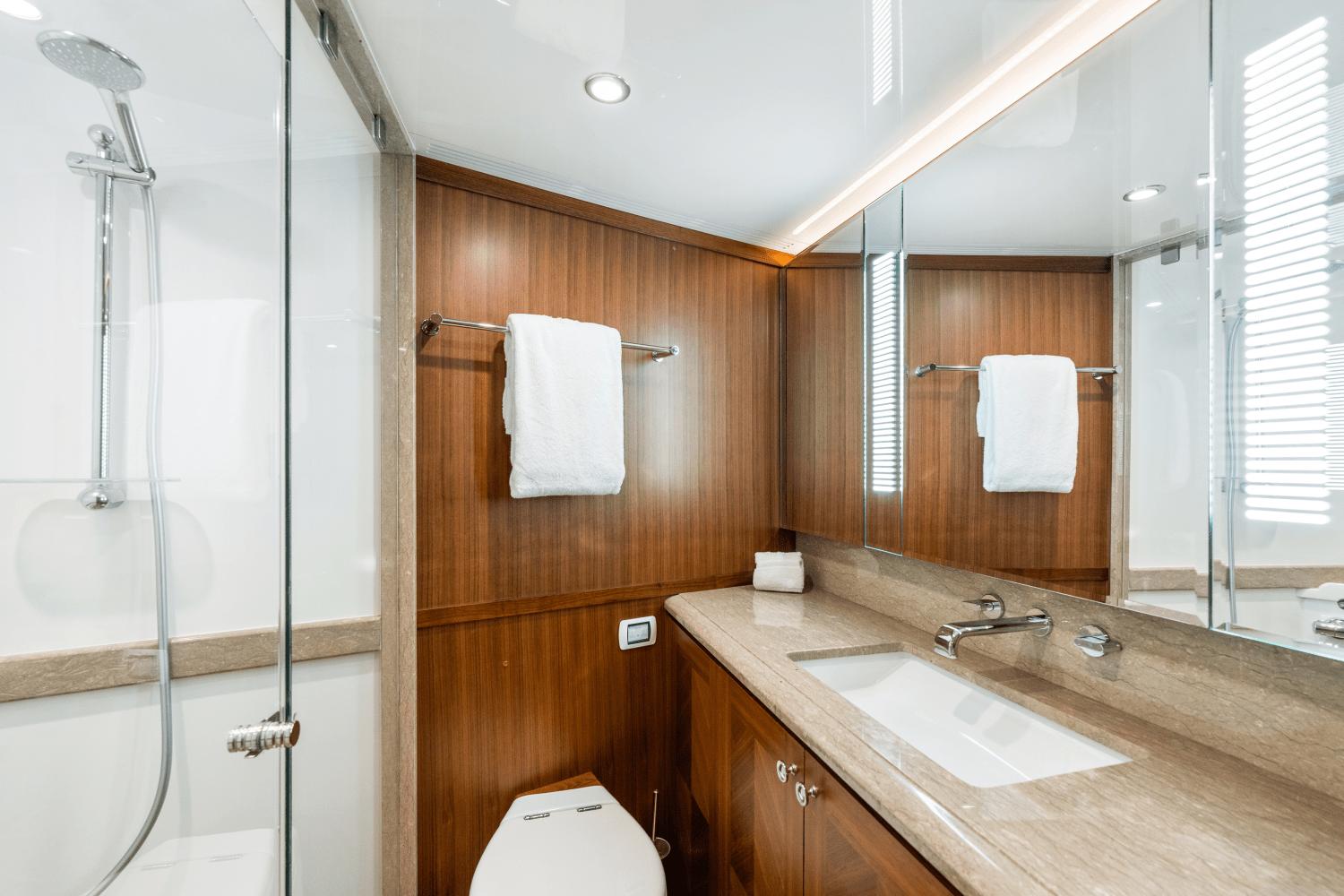

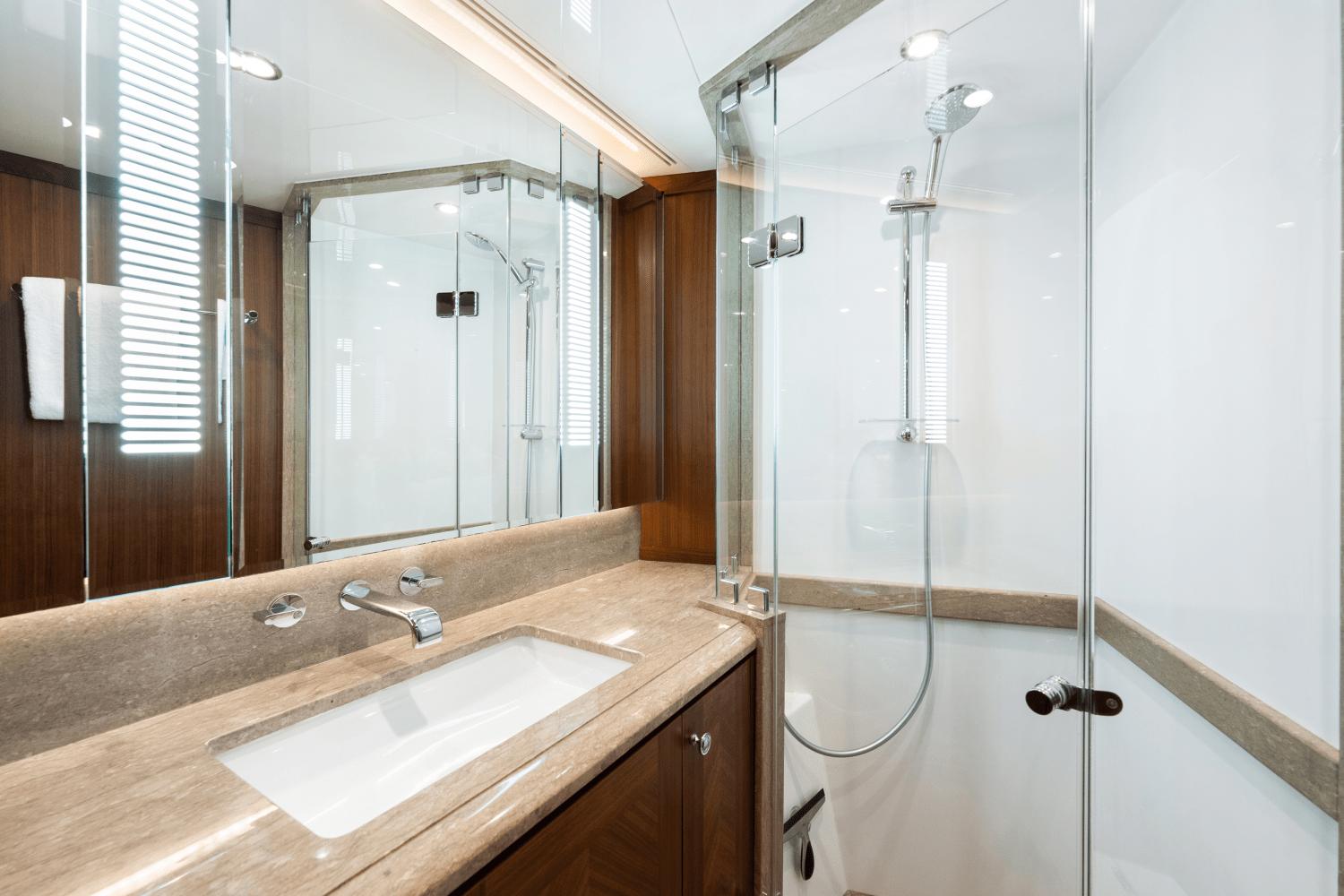

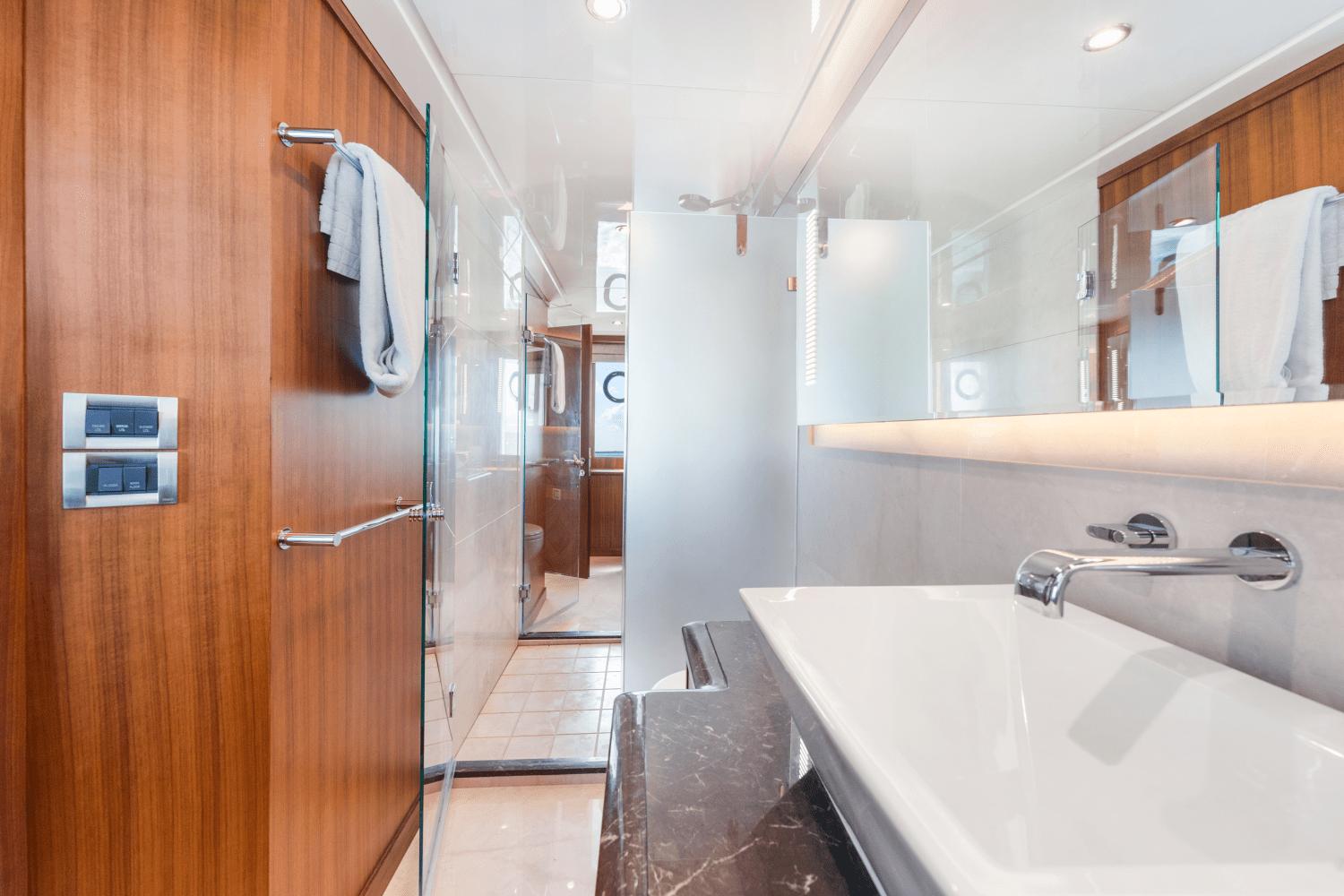

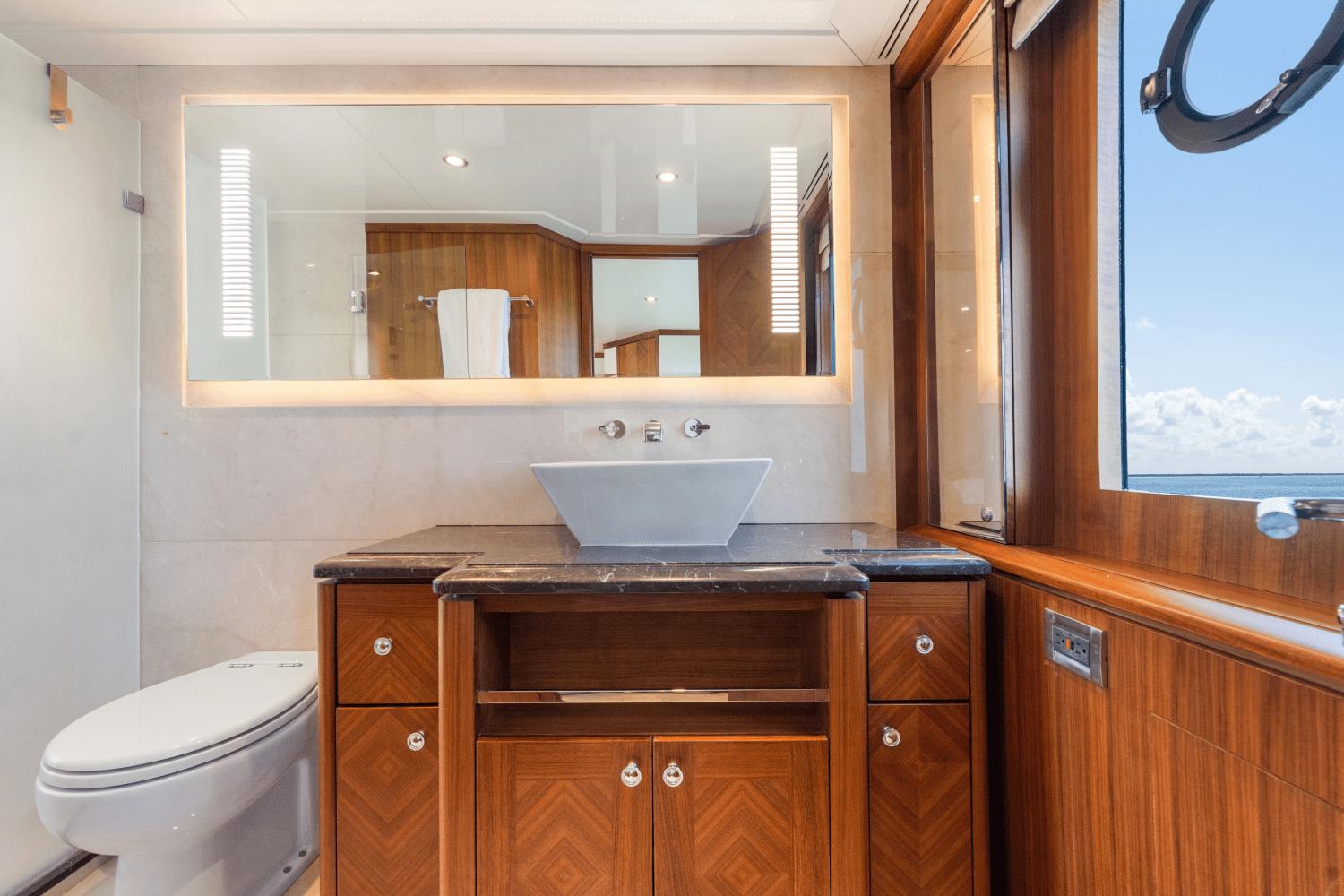

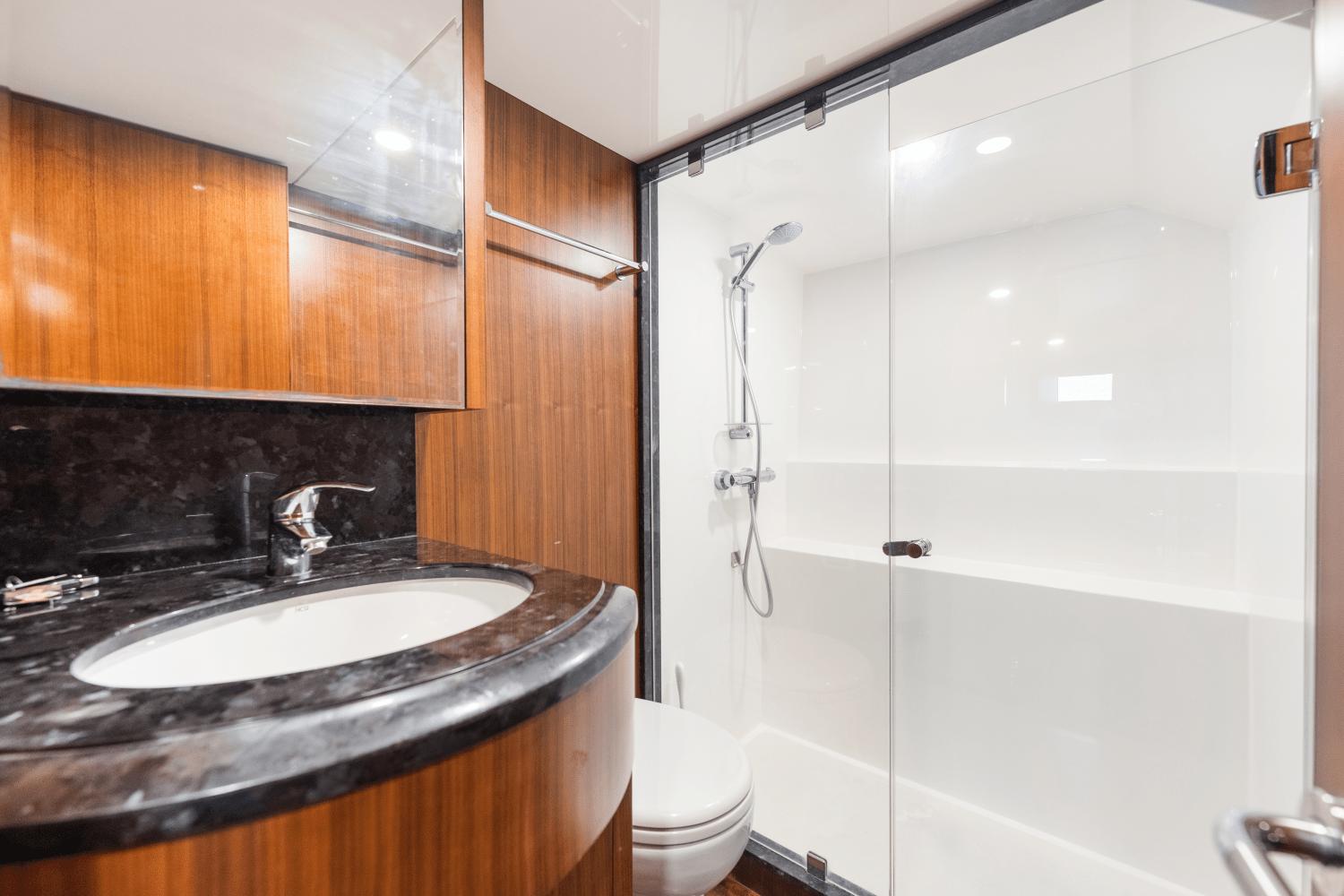

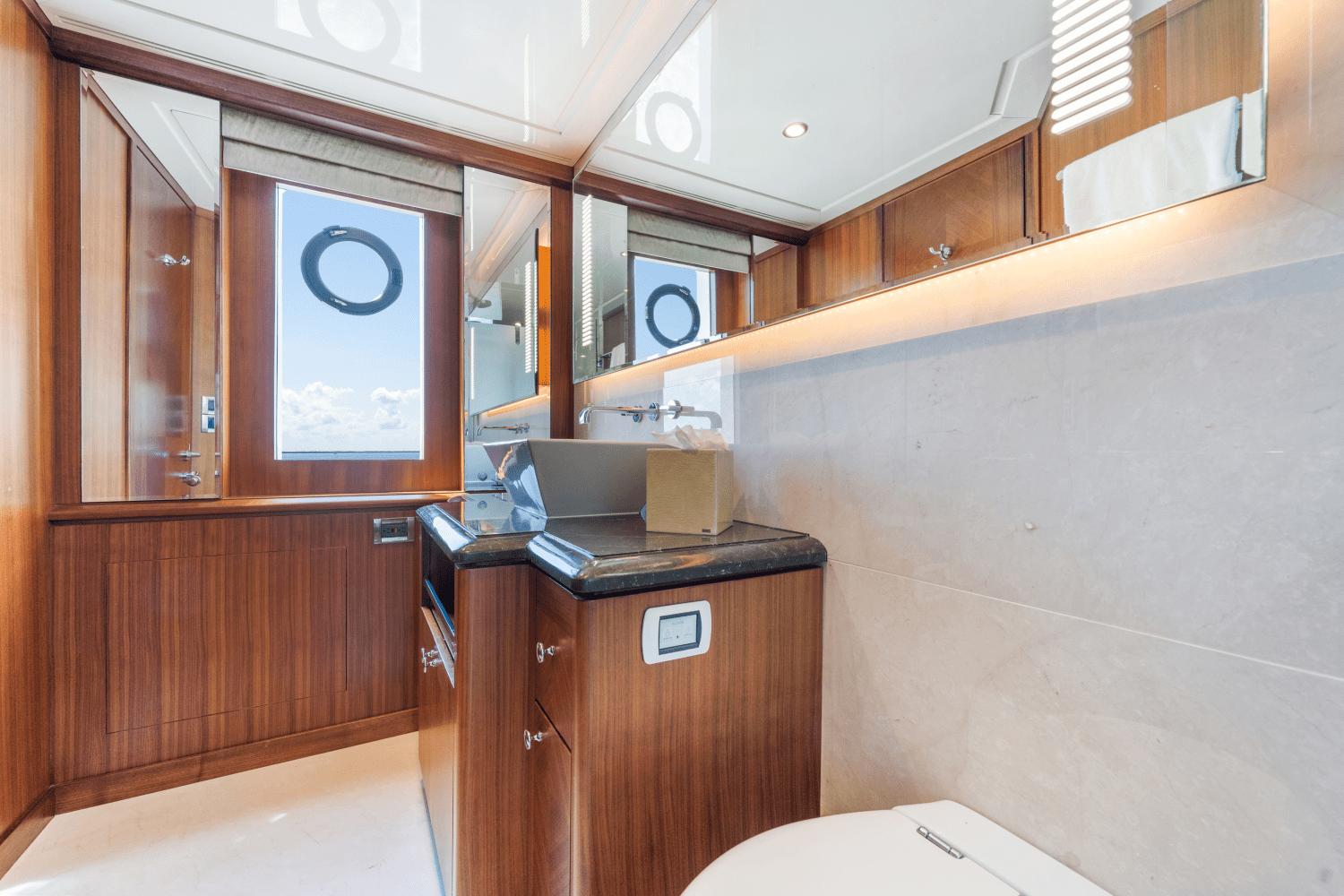

HEADS:

• Wood walls & cabinets with Granite or Marble countertops

• China sink

• Planus™ toilet system

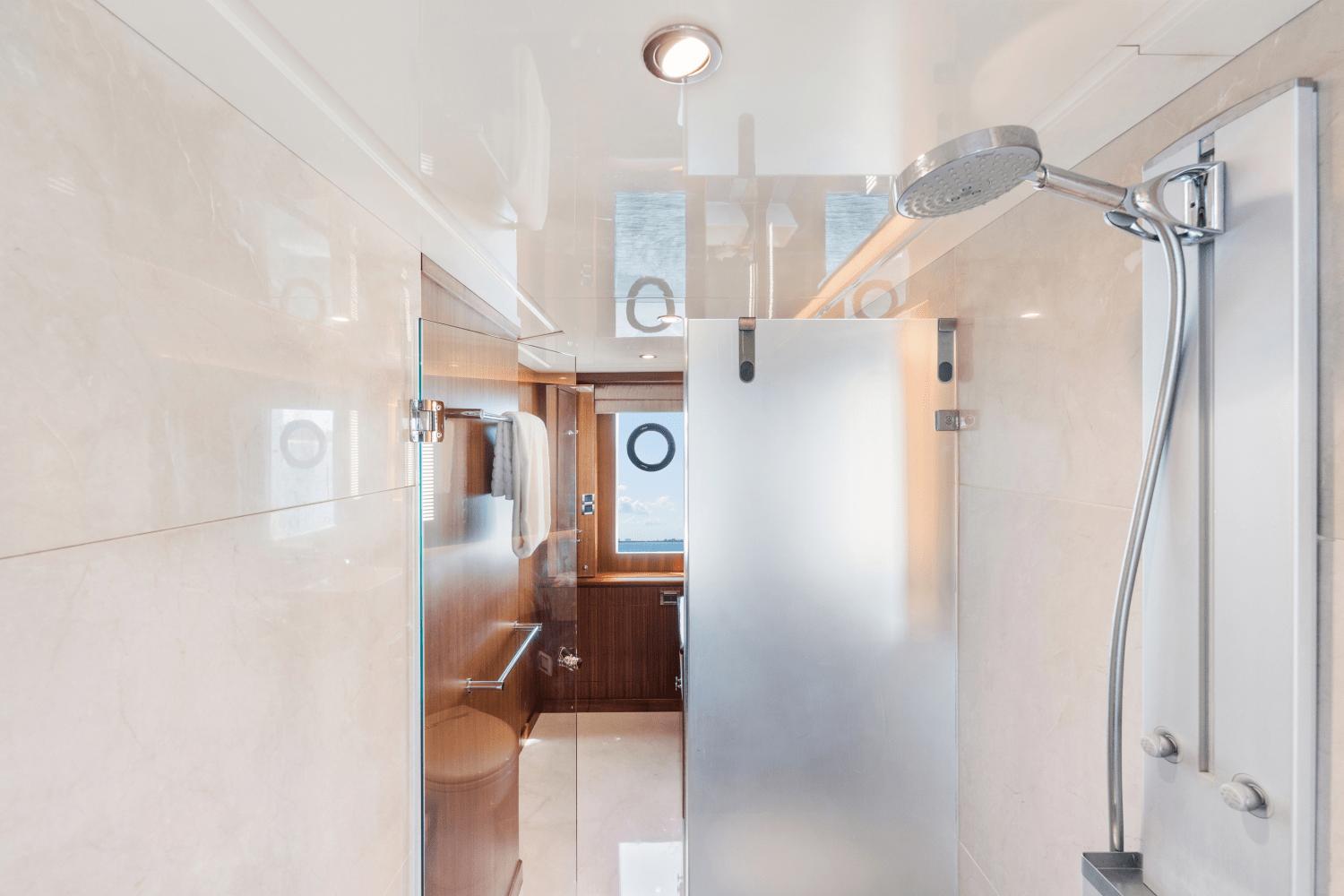

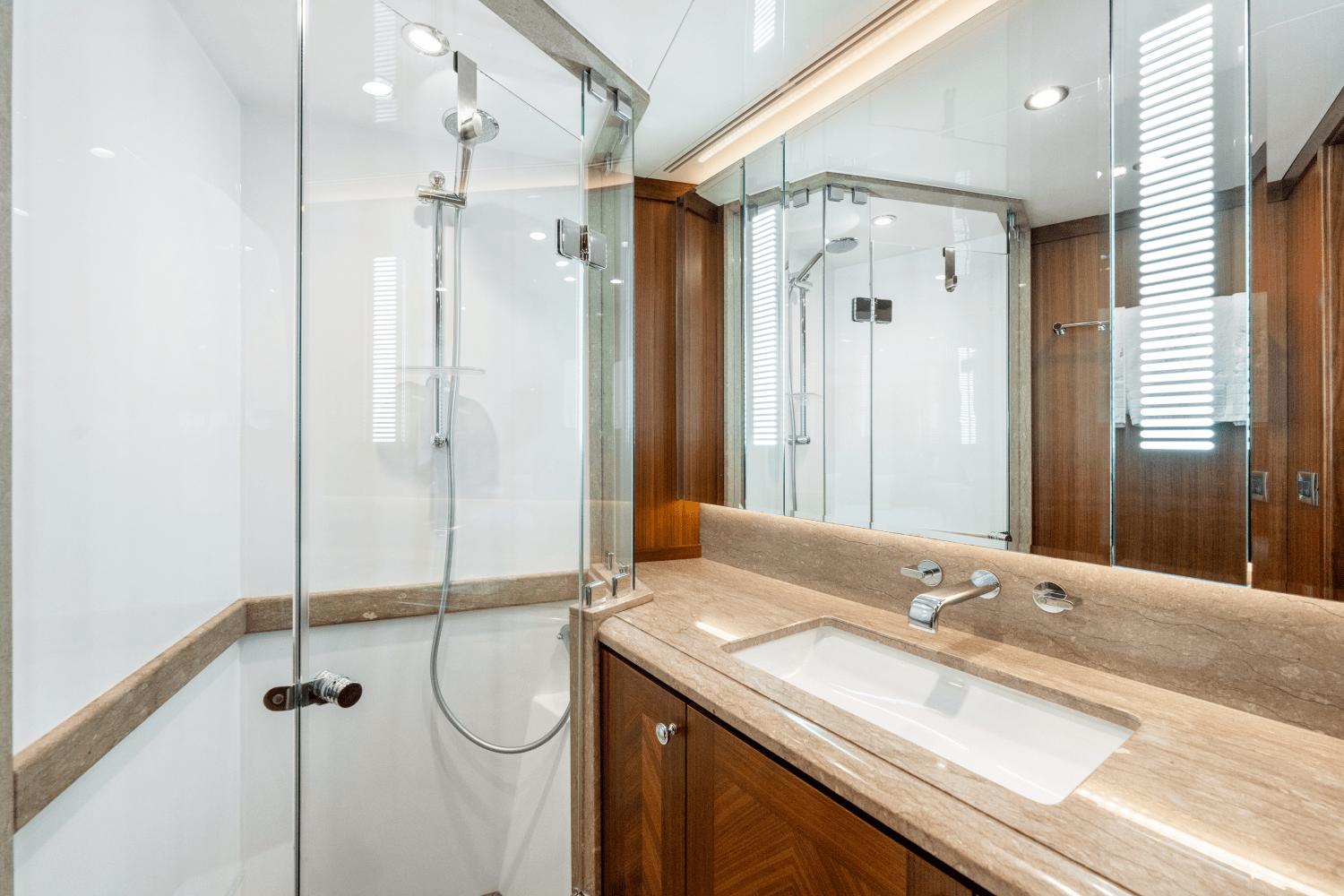

• Seamless fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower (Unique OA feature)

• Shower door with Granite/marble frame. Shower door shall use “crystal clear” glass custom made for Ocean Alexander. Providing superior transparency and reflectiveness. Together with custom made for Ocean Alexander “minimalist and transparent water strips” provides a unique Ocean Alexander

proprietary “Crystal Shower”

• Grohe™ faucets for sink and shower

• Custom bathroom hardware

• Custom bathroom fixtures

• Air extraction in each head shall be by low noise extraction fans, switched separately from lights.

• Chiampo Blue flooring and counter top on guest head

• Brown Antique counter on day head

• Ancient Crepito flooring on day head

• Heated granite floors in master bathroom

• Ancient Crepito granite flooring

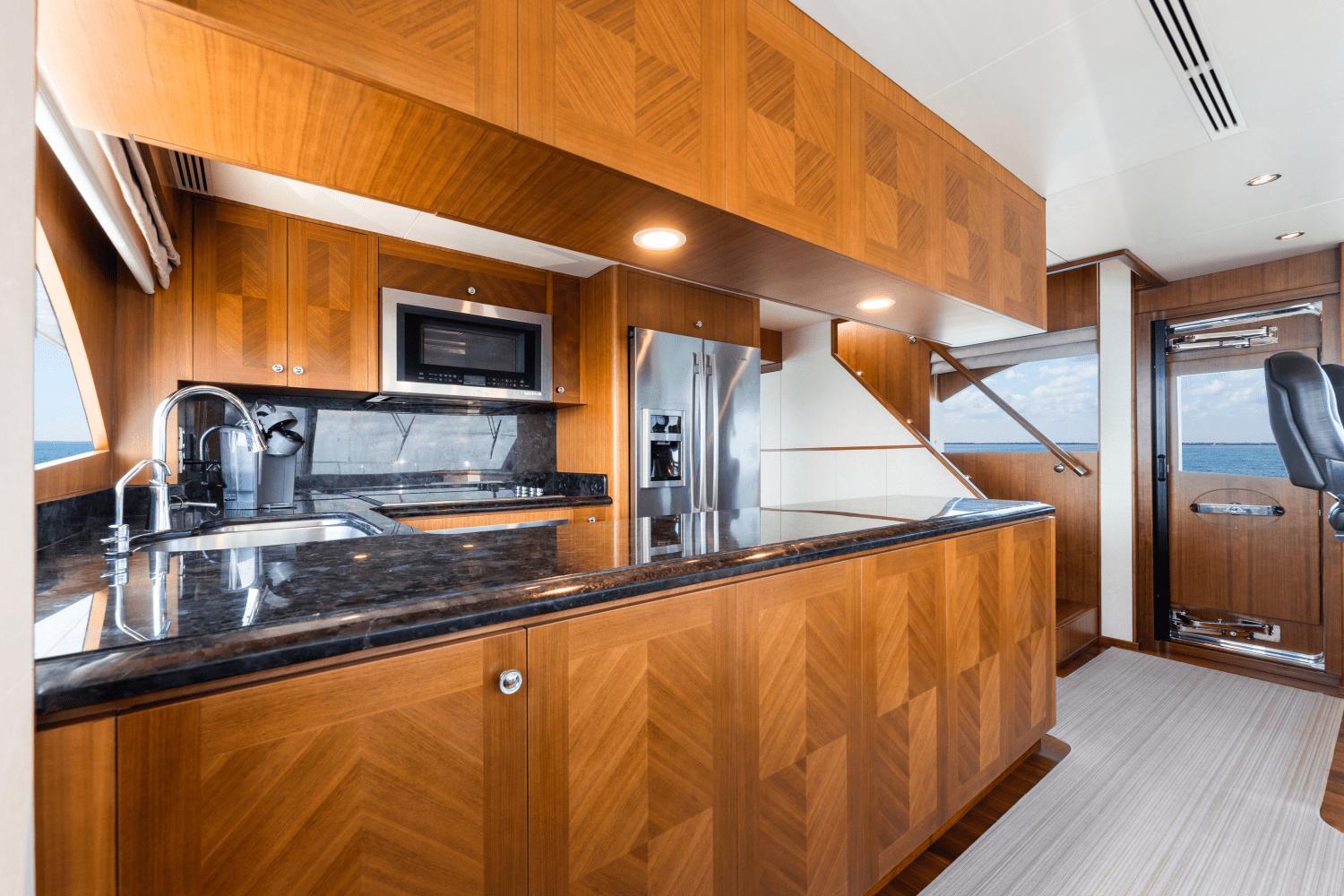

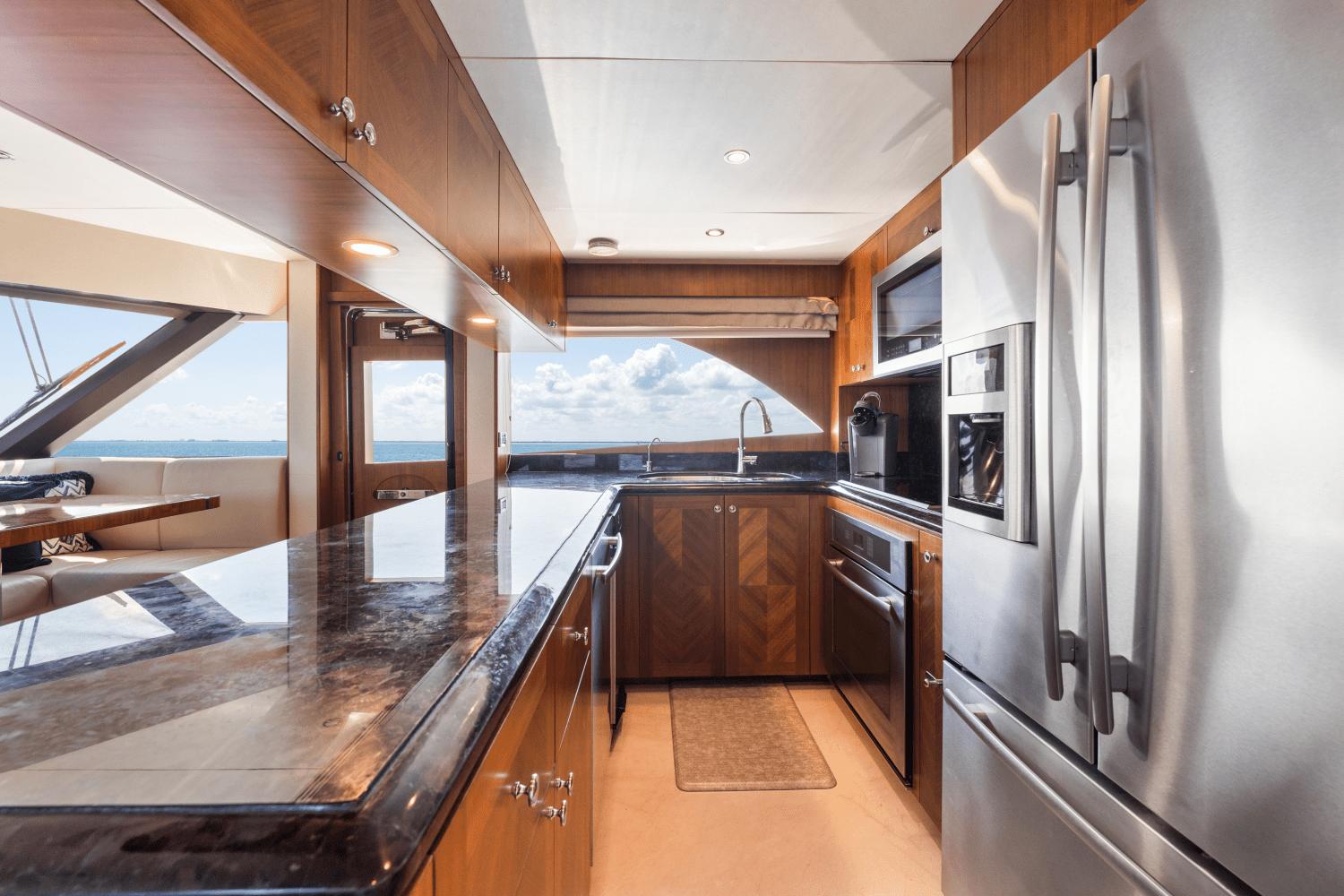

GALLEY:

• New galley layout with cabinetry storage under stairs

• Brown Antique countertops

• Wood and cabinetry with proprietary drop-lock drawers and positive-latch doors to increase containment of stored objects while underway (Unique OA feature)

• Ancient Crepito flooring in galley

• Storage cabinets

• Elkay™ Double sinks with pull out faucet

• Overhead dish locker forward

• Overhang cabinet in galley

• Whirlpool™ garbage disposal

• 36” Jenn-Air™ Refrigerator

• 30" Jenn-Air Over-the Range Microwave

• 30” Jenn-Air™ electric cook top

• 30” Jenn-Air™ electric oven

• 15” Whirlpool™ trash compactor

• Jenn-Air™ dishwasher

INTERIOR DÉCOR:

• Wood paneling and cabinetry in diamond wood grain pattern (where possible)

• Interior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. (Design cues from 135)

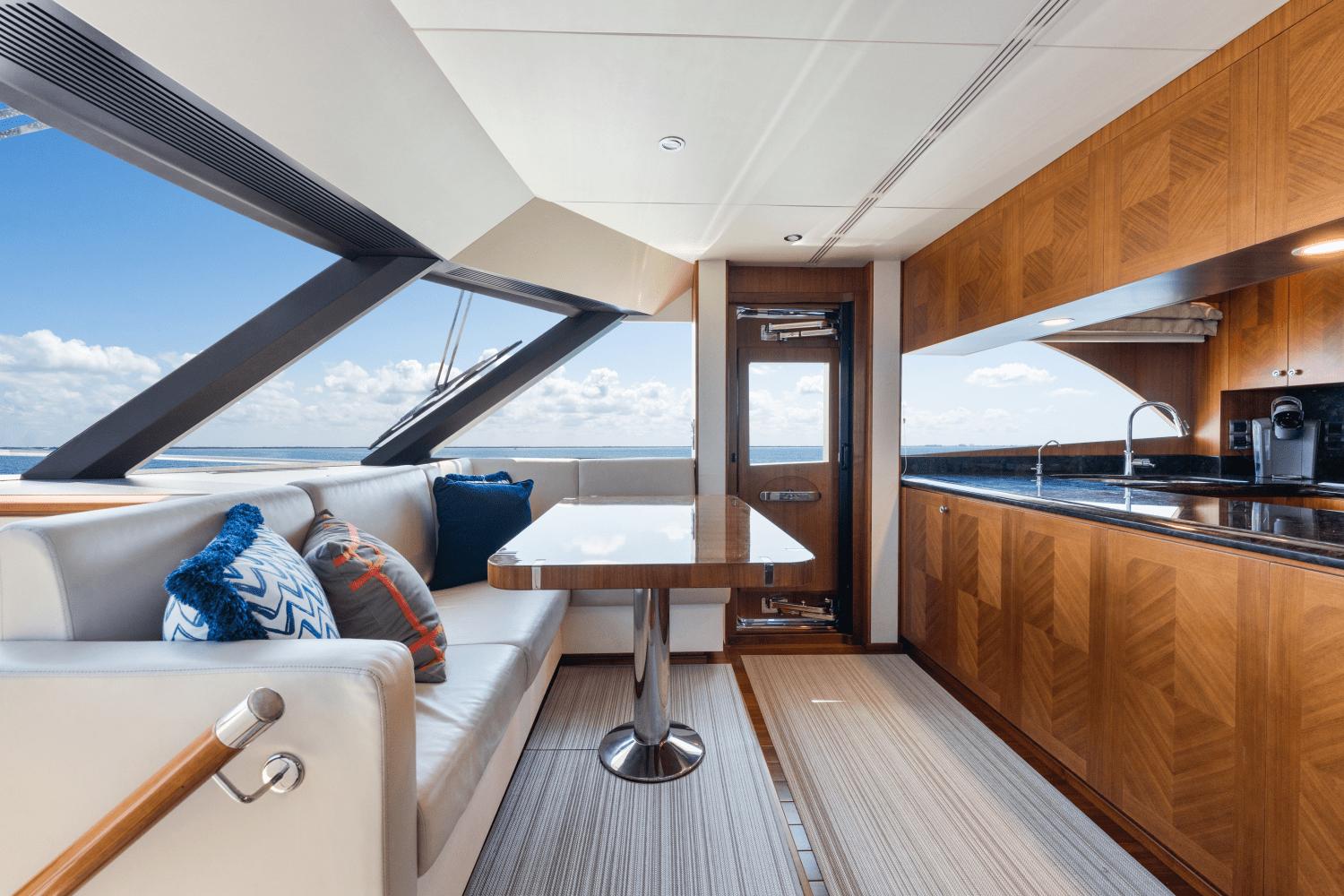

• Evan Marshall designed interior pilot station and display pod. With matching wood/Ultraleather and “floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance. (Design cues from 135)

• Windshield defrosters

• Weather-tight doors to side deck

• Phantom screen (for insects + pollen protection) with dedicated wood box for door

• Dedicated freezer forward of Dinette (Increase food storage for extended cruising ability)

• Pantograph doors in Pilothouse

• Ocean Alexander Fresh Air system: with filtered fresh air drawn from outside and vented to lower staterooms for constant fresh, clean air. Makes for a clean and healthy environment that reduces free radicals and increase oxygen levels. (Unique OA standard feature)

• Air extraction in each head shall be by low noise extraction fans, switched separately from lights

• Opening (in glass port light) for MSR Bath

• Designer pull handles for drawers & cupboards

• Satin varnish for interior finish w/ countertops in high gloss

• Fabric covered walls for lower walkway walls

• Concealed hinges throughout interior cabinets

• Hanging lockers with dual-locking mechanism

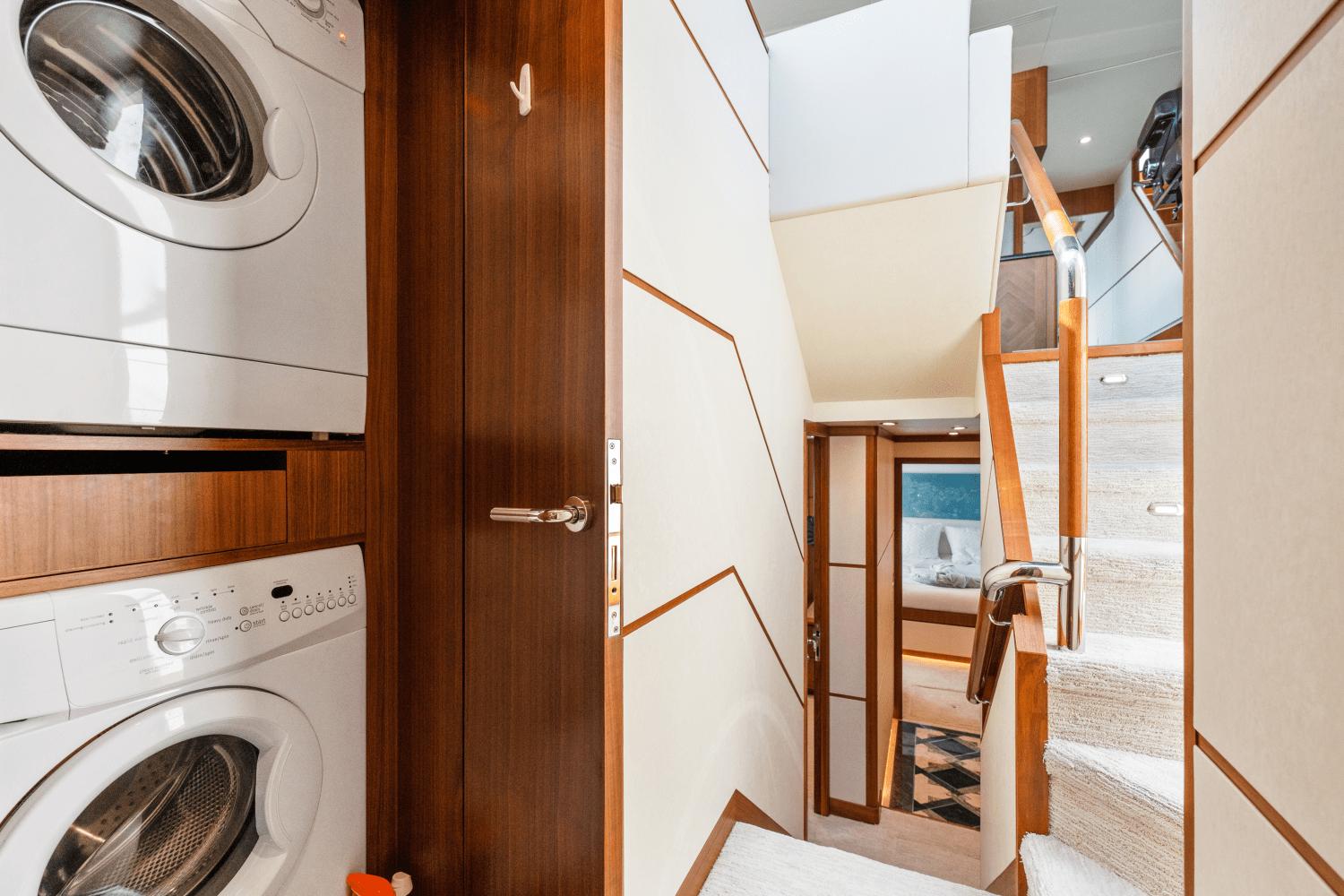

• Washer/ dryer (Commercial quality, Energy star washer/dryer)

• Concealed Chest Freezer in front of Dinette

• S/S hardware

• Flip-up additional storage fwd of dinette/under windshield

• USB power plug at lower helm and inside MSR nightstand

• Dedicated oversized drawer for golf club/sport rackets/bulky items storage under fwd stateroom berth

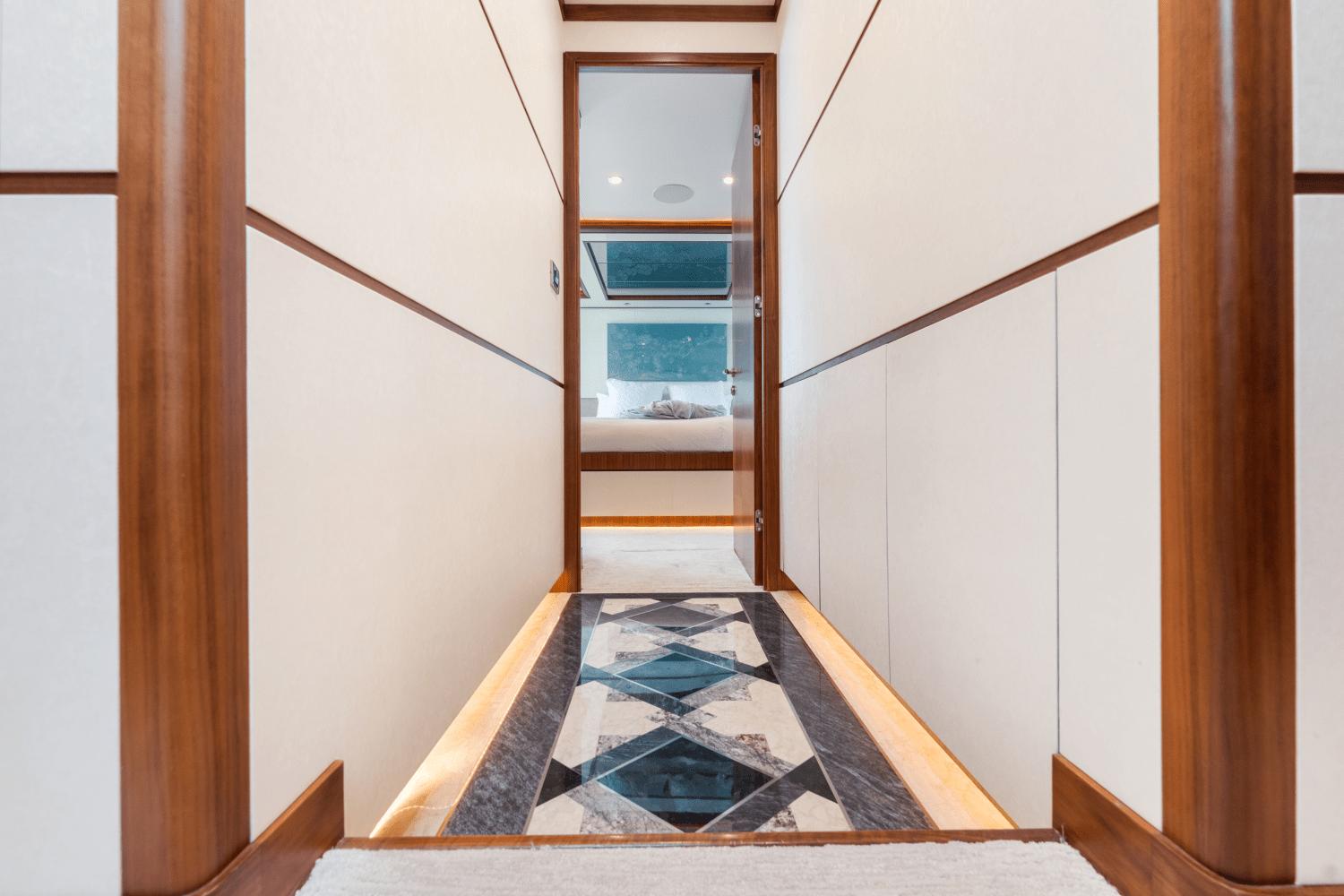

• Custom granite and S/S accent floor in foyer to MSR (Inspired by OA 135)

EXTERIOR:

• Hardtop with dedicated custom S/S ladder to navigational electronics (Standard versus optional with competitors)

• Removable ceiling panels on hardtop and main deck for ease of service.

• 2” elliptical 316L Stainless steel handrails on main deck, 1-1/2” on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength” for safety and comfort (Unique OA feature)

• S/S anchor roller

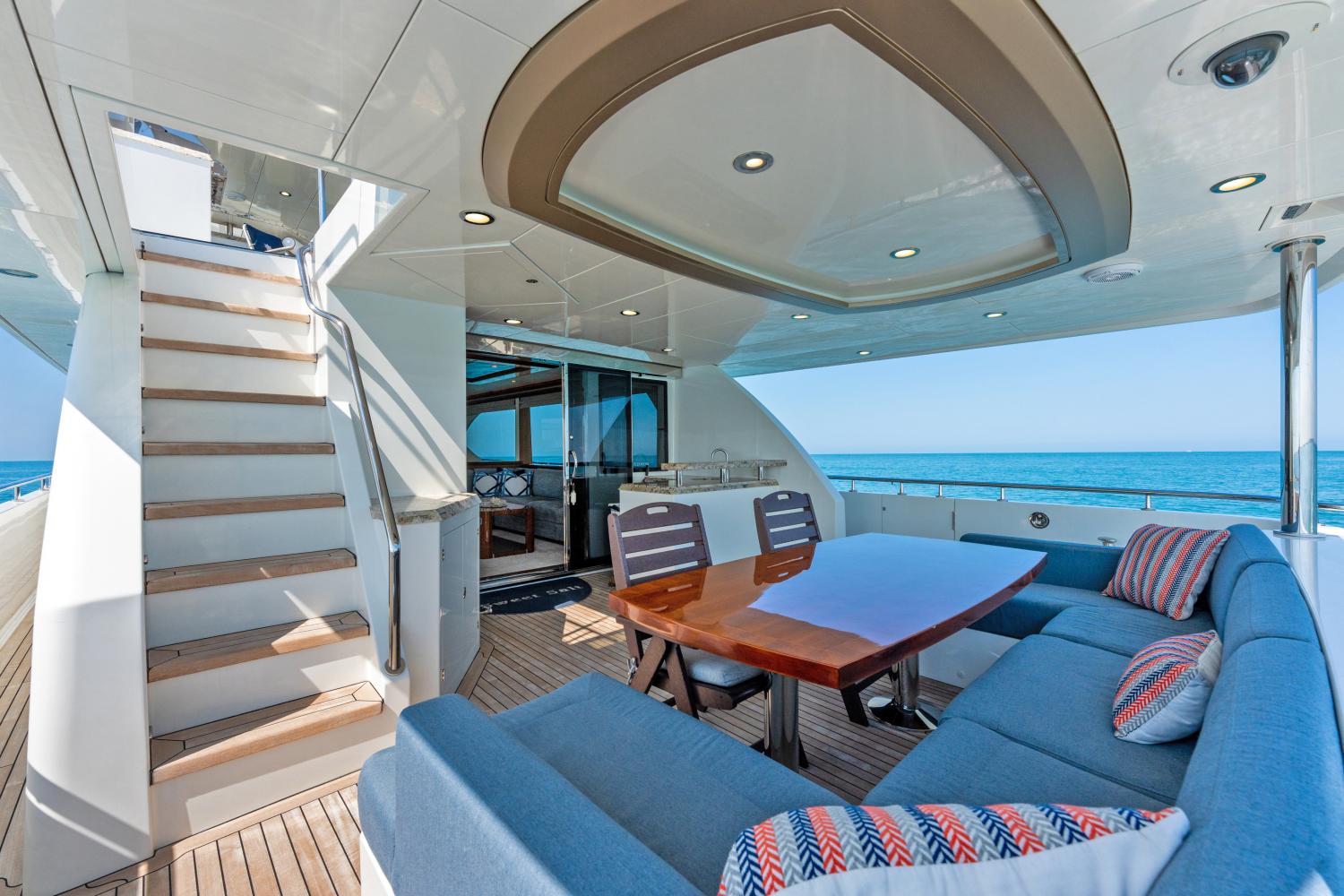

• Fiberglass staircase from cockpit to FB

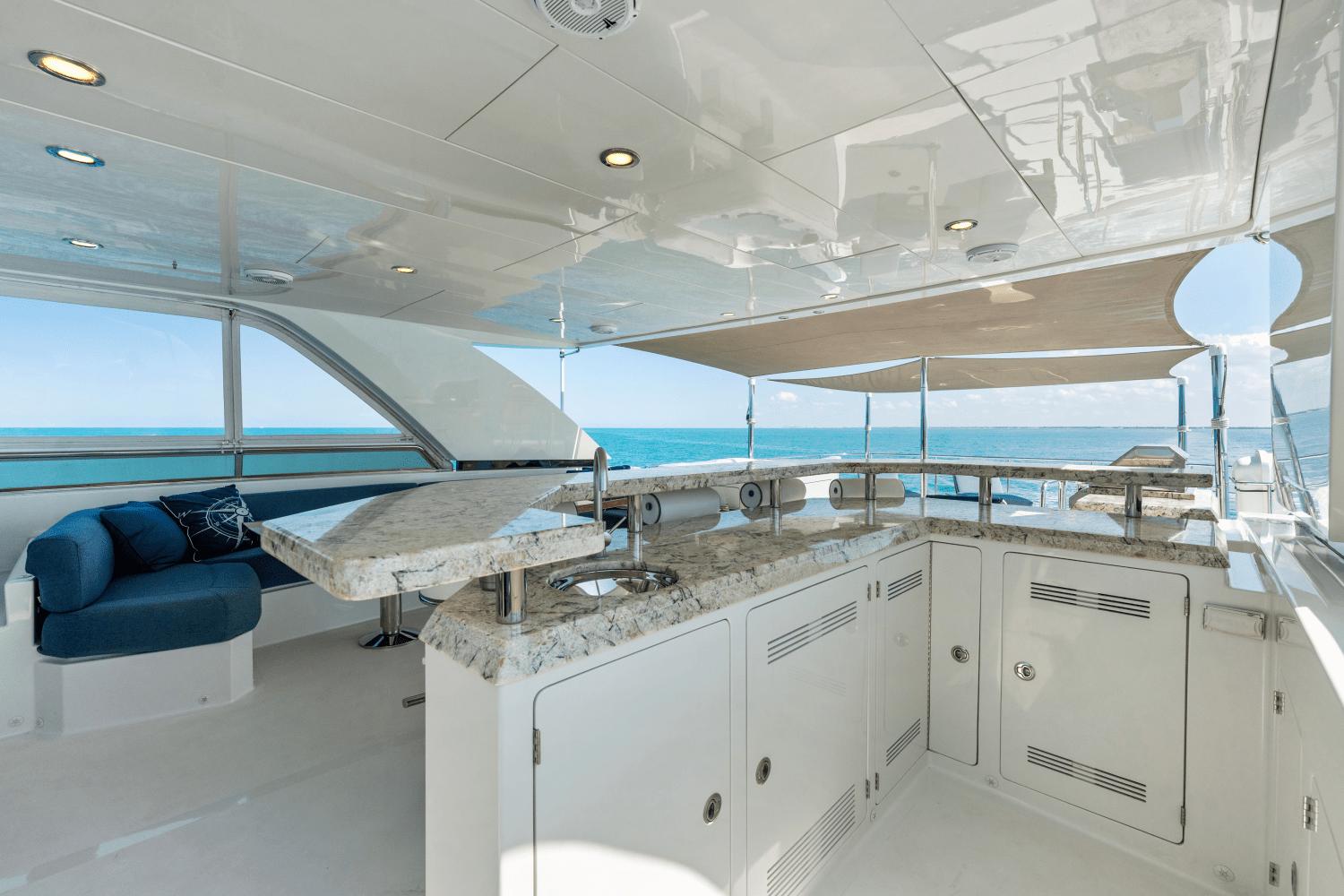

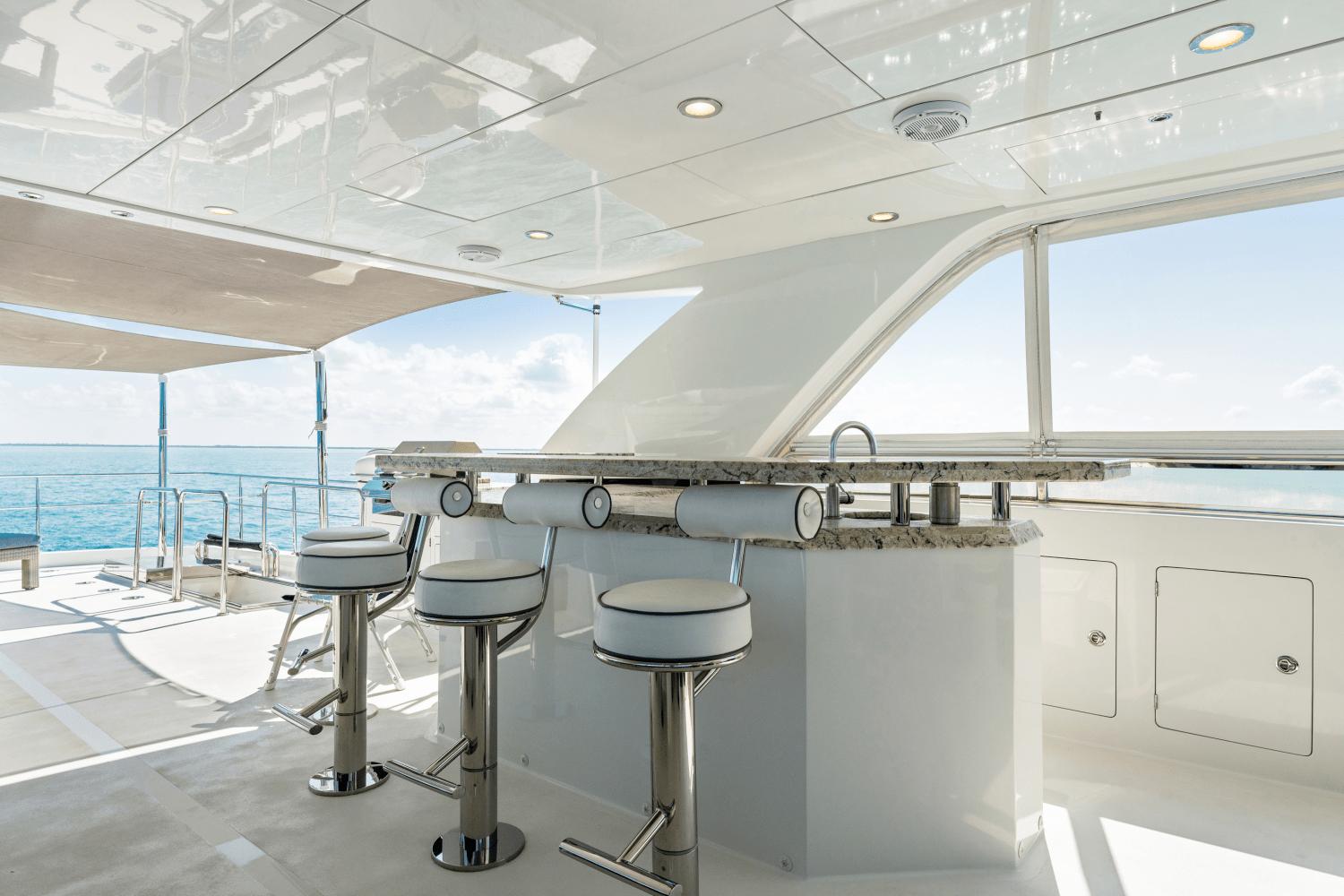

• Wet bar with sink, bar refrigerator-icemaker on FB or Aft Deck

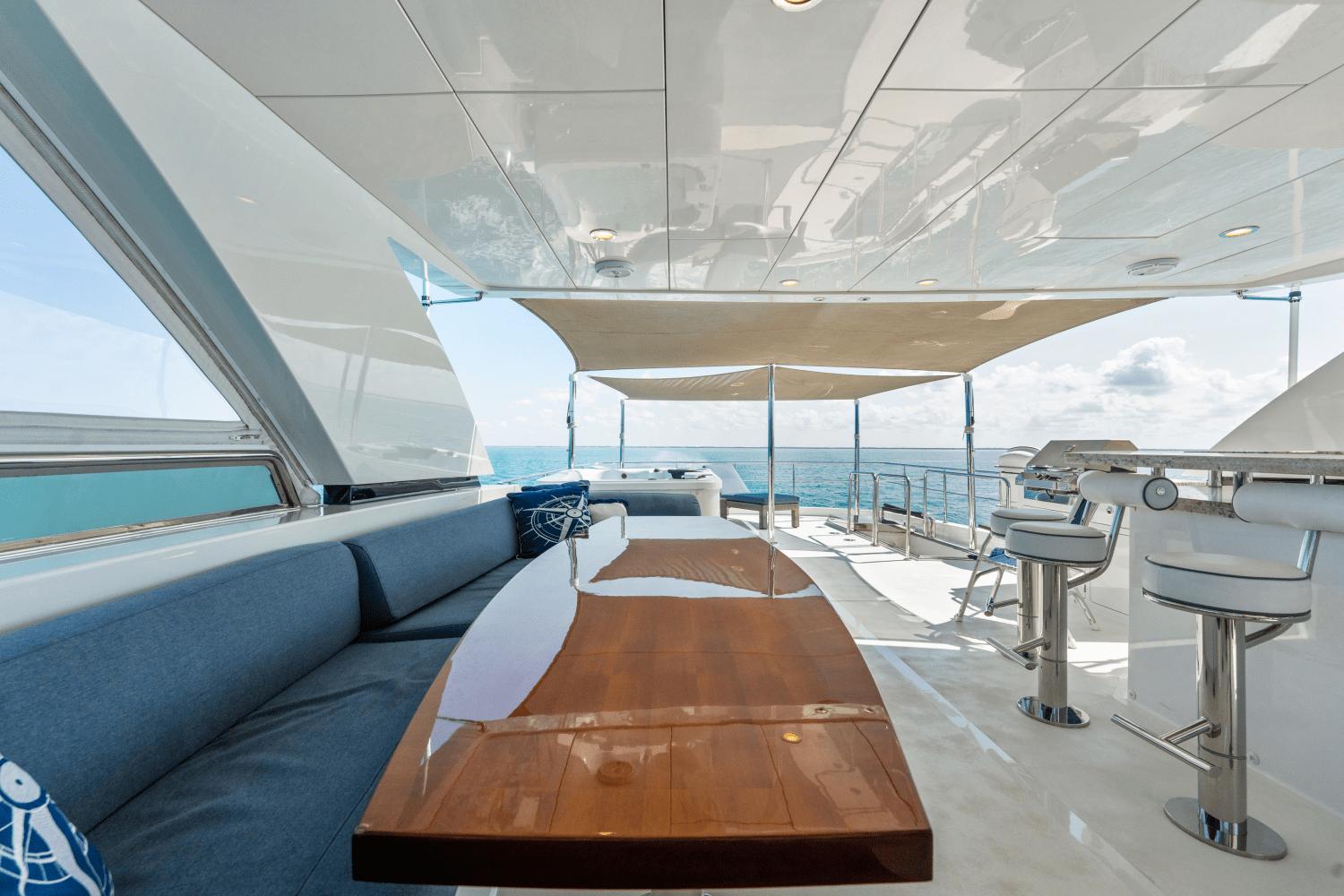

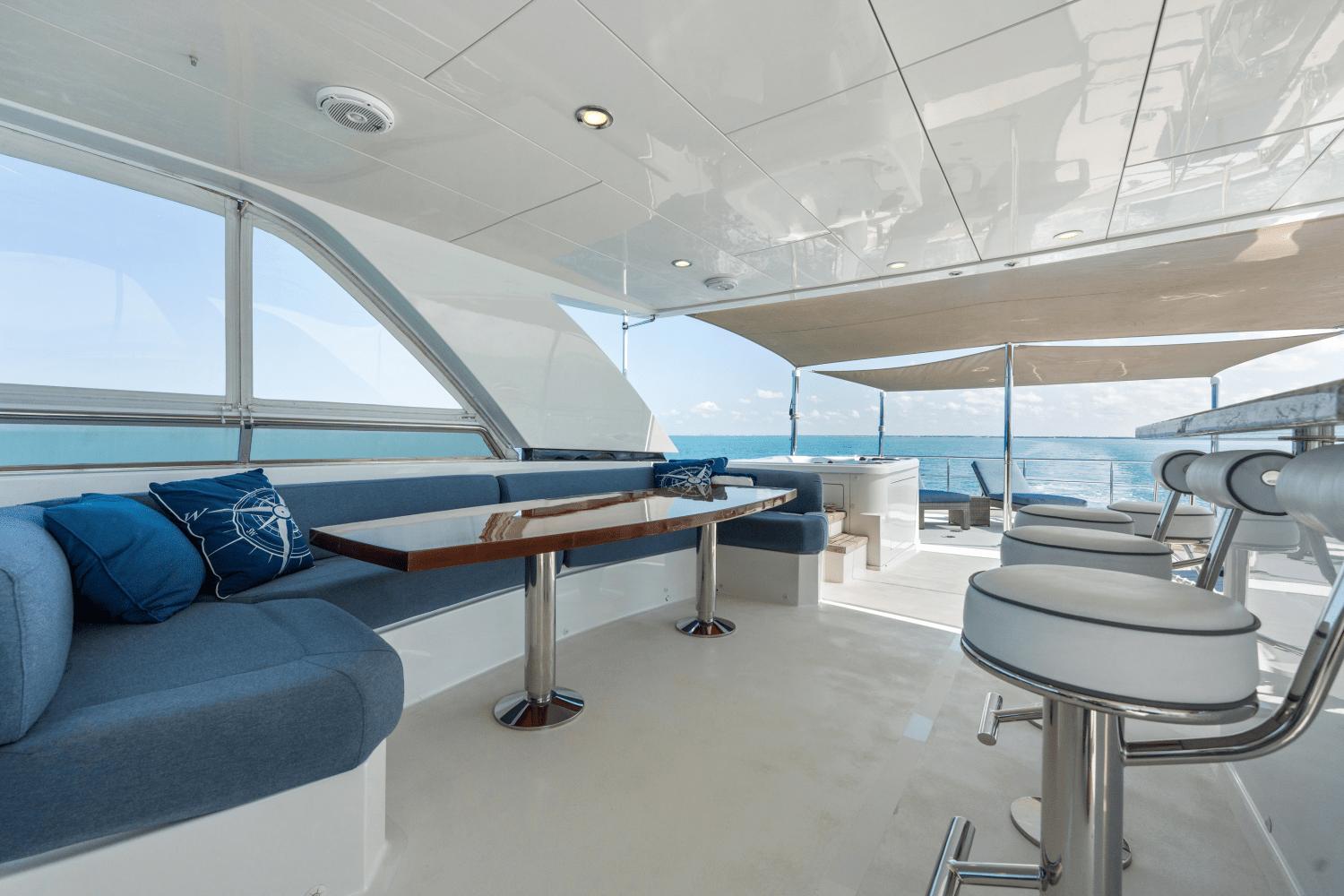

• FB seat w/ storage underneath and high gloss table

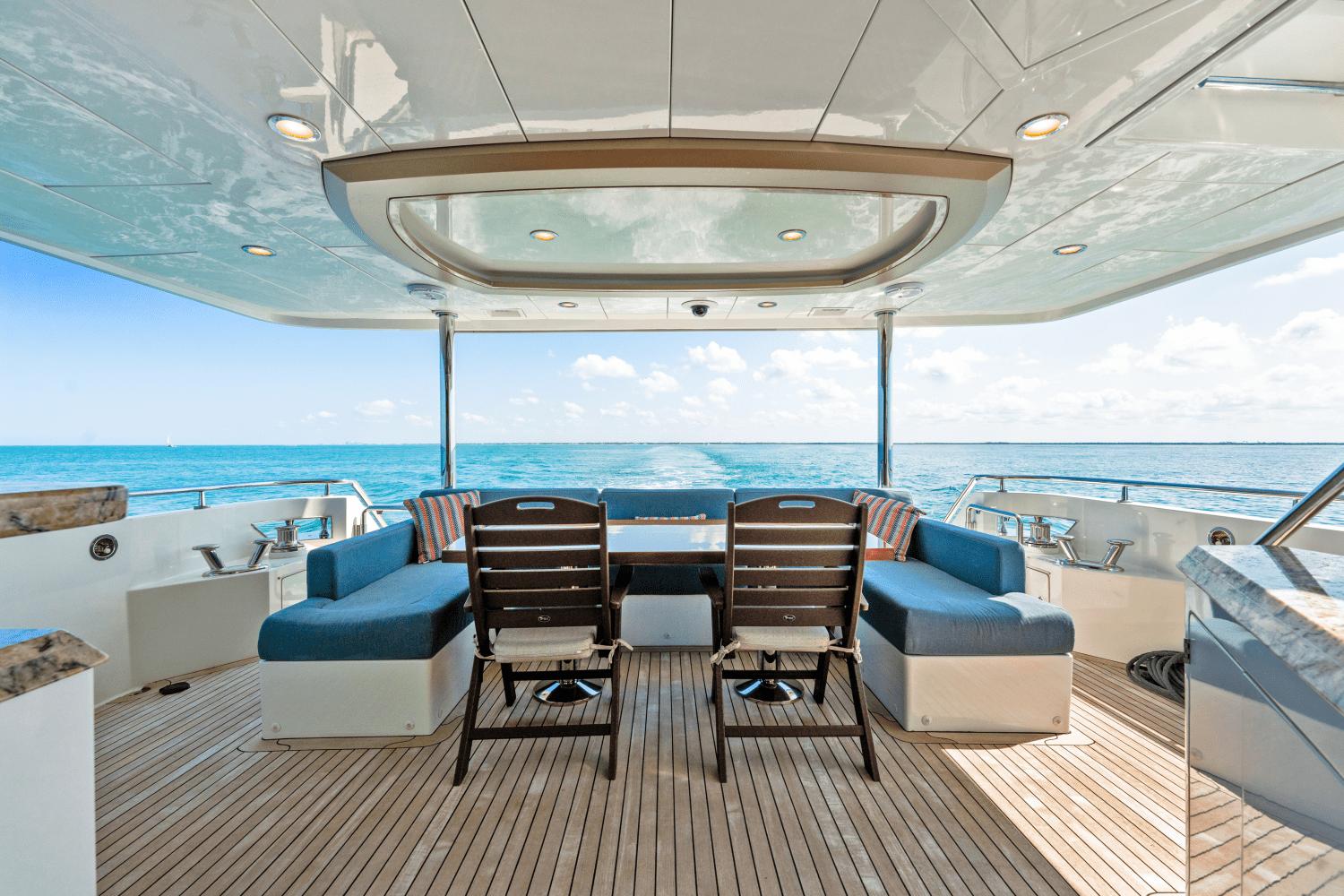

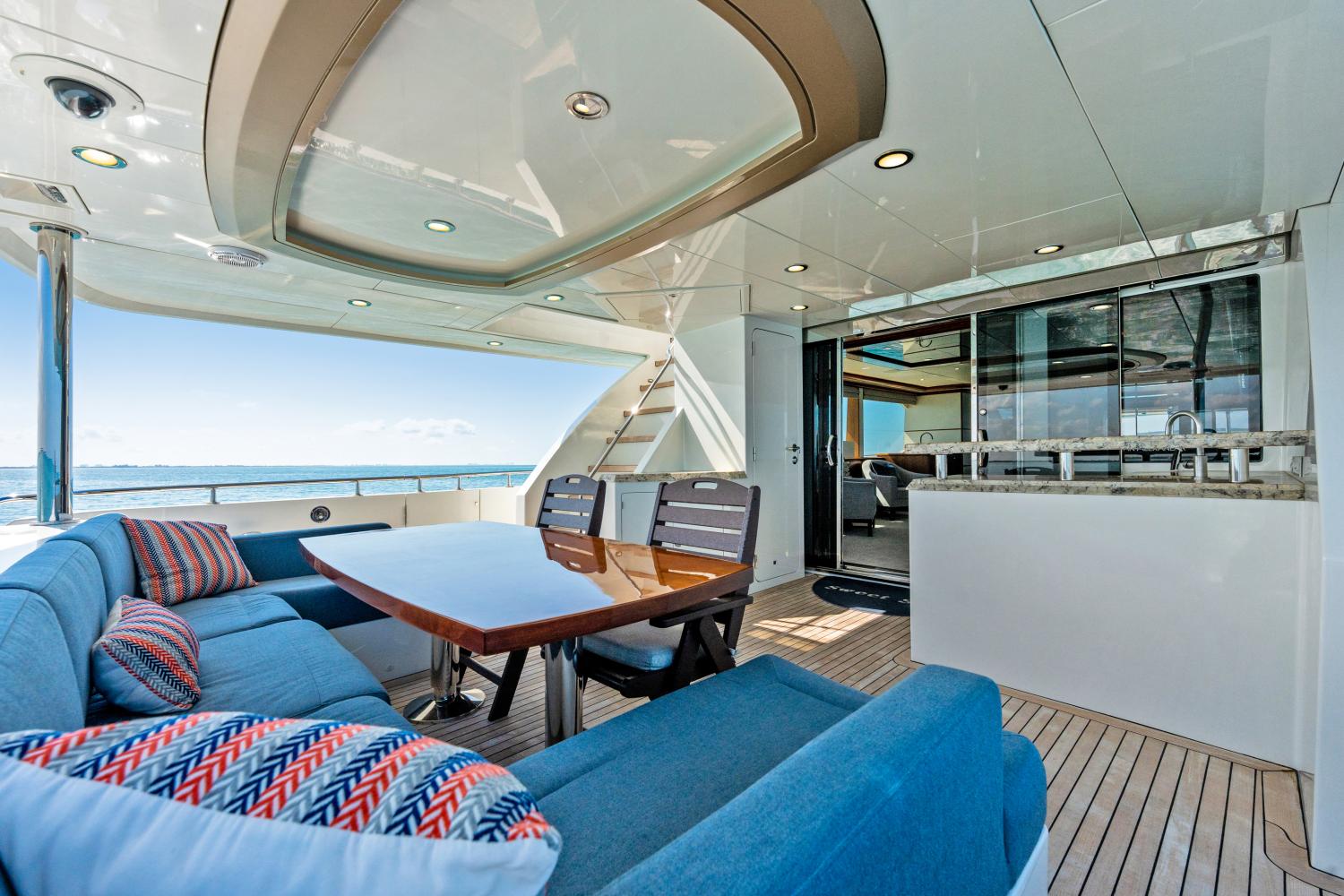

• Teak deck for aft deck and walkway to midship

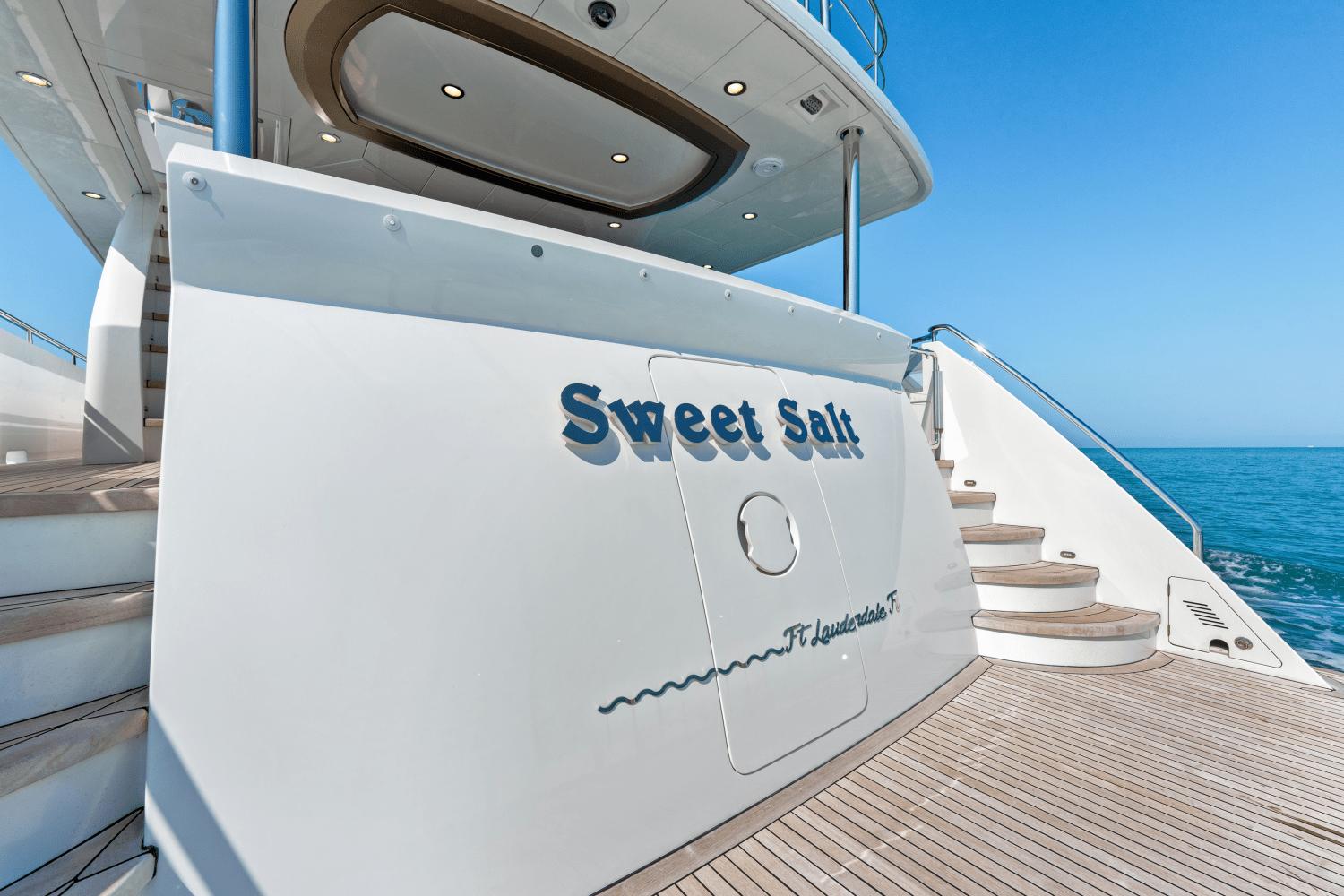

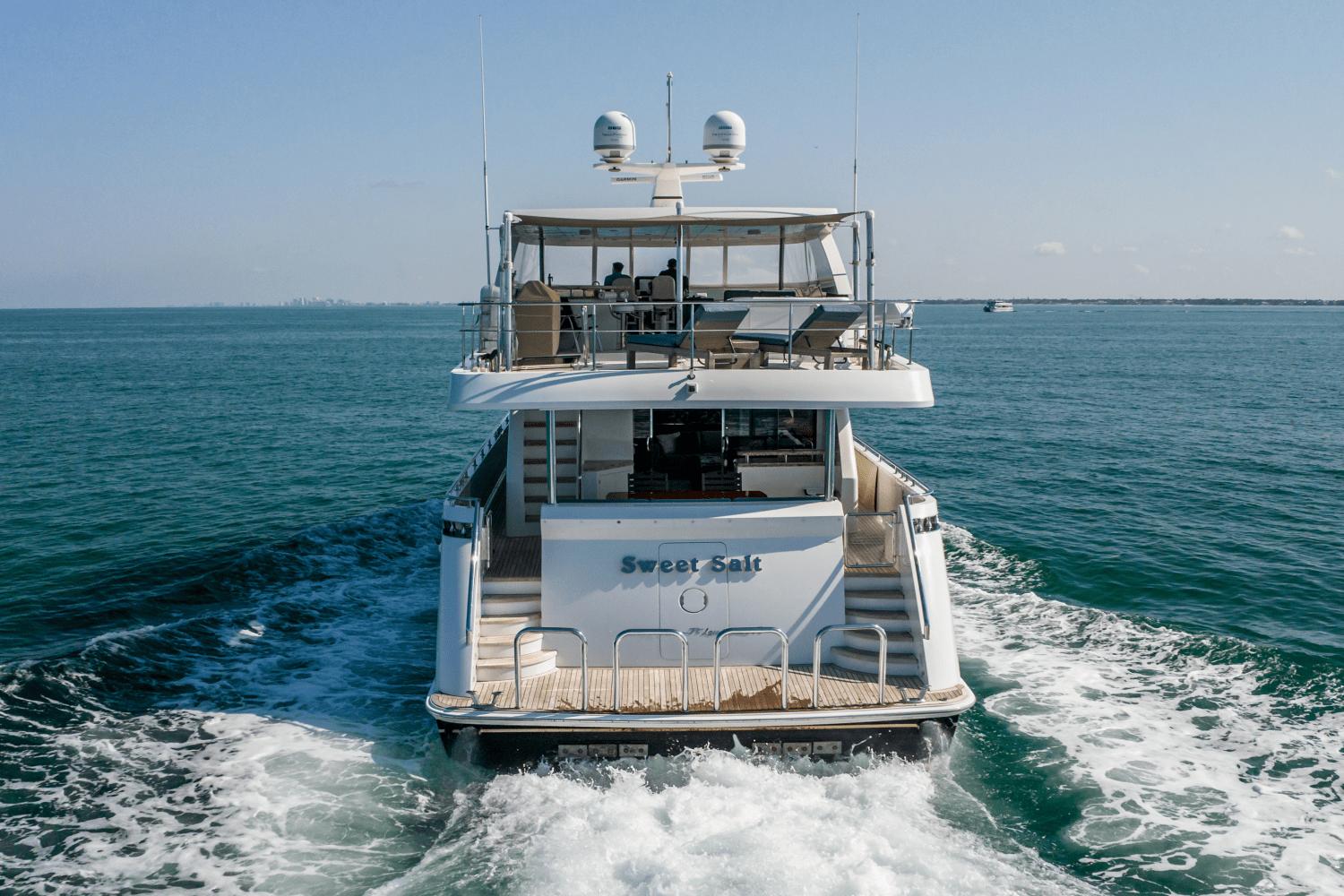

• Teak swim platform w/ teak steps

• Elec. S/S salon door to Aft Deck

• Stainless steel bow and stern staffs

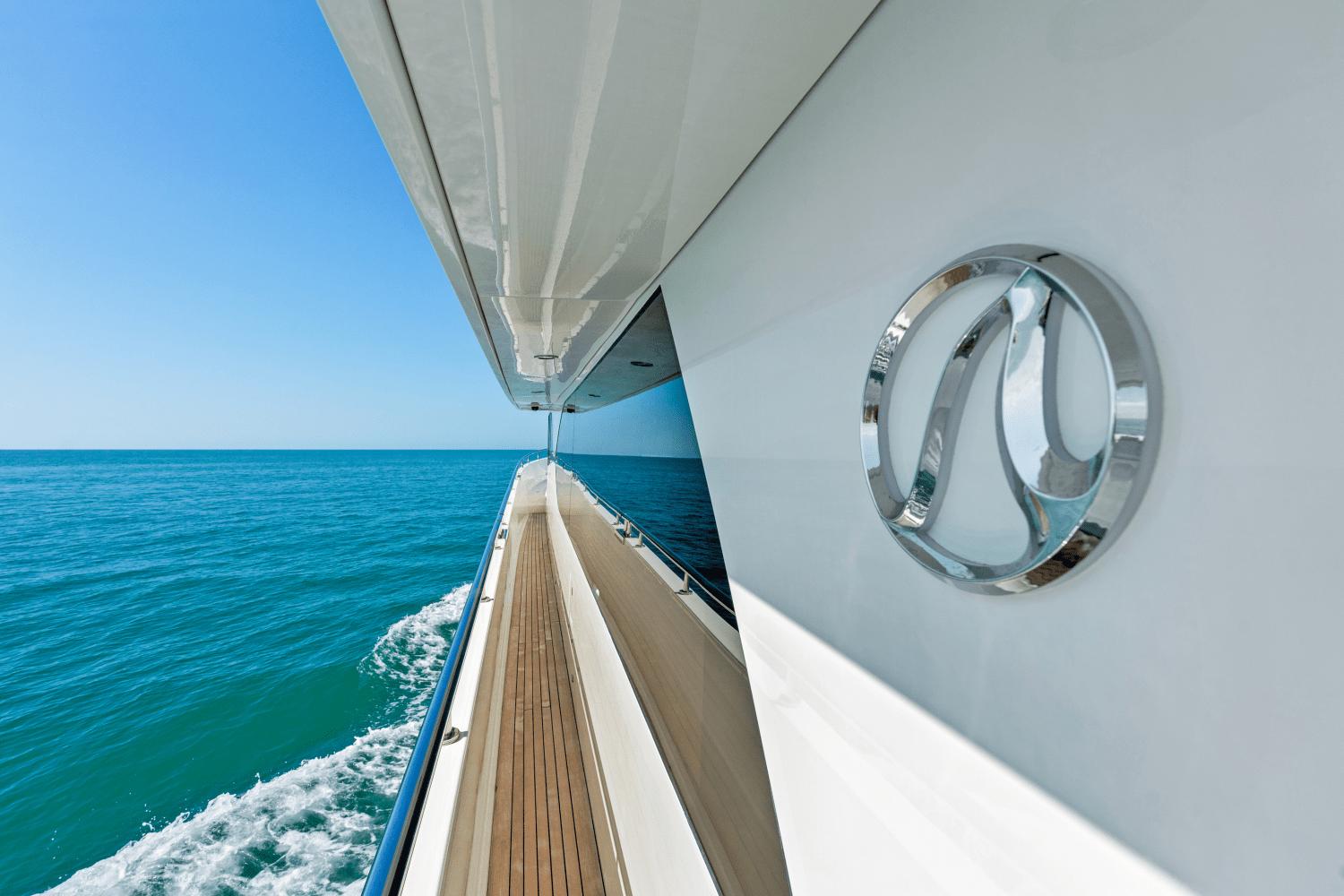

• Lighted OA logo

• Aft Deck shower, dockside water inlet

• Four U-shaped rails on swim step

• Boat deck sliding hatch

• Side boarding gates at Aft Deck

• Recessed boarding ladder on starboard gunnel (Standard versus

optional with competitors)

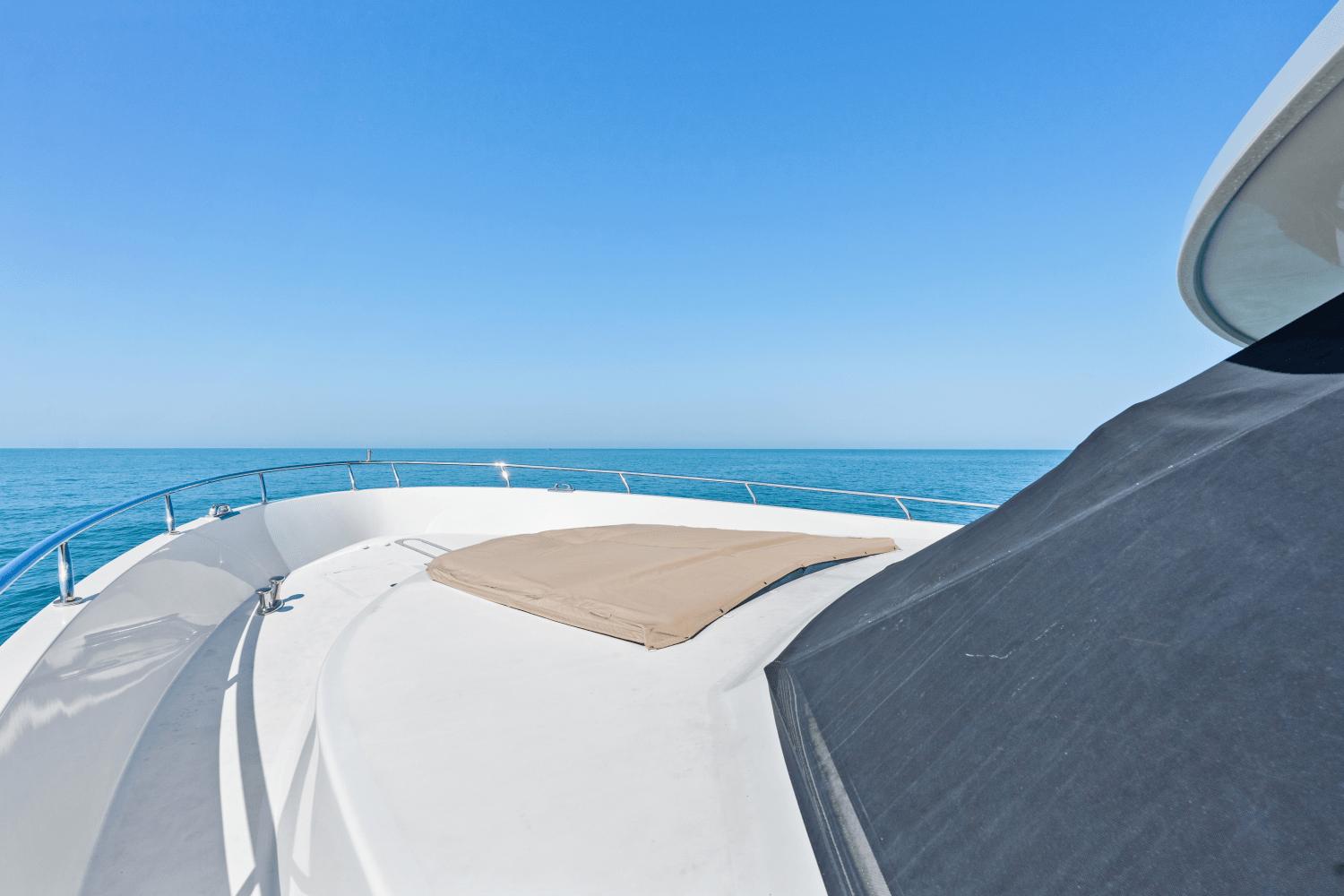

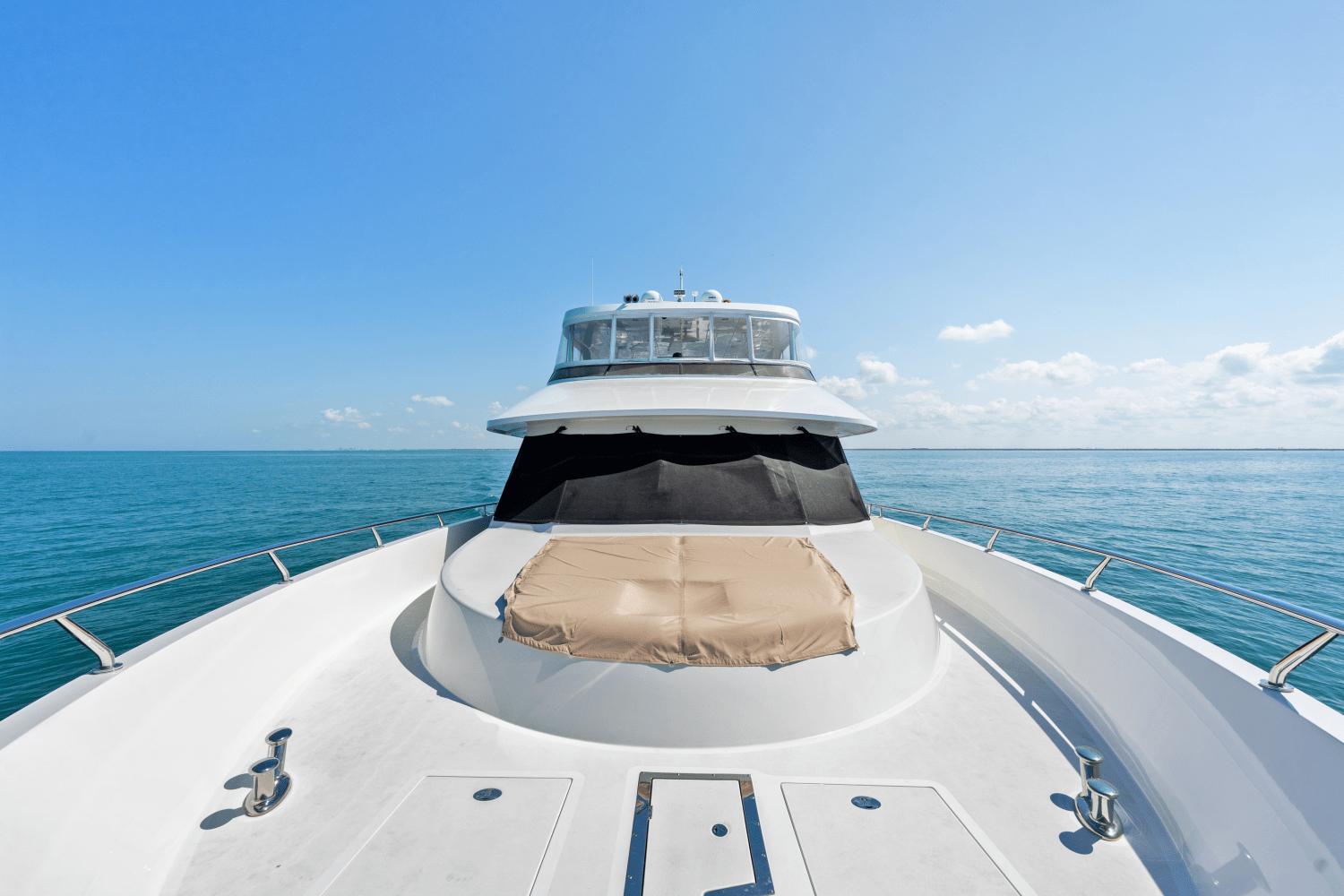

• Sunpad on fwd deck

• Custom exterior canvas and windshield mesh covers (Standard versus optional with competitors)

• Flybridge deck outboard storage increased by 54% via additional storage lockers on port and starboard where possible

• Anchor chute cover for added safety while anchor is not in use and increases usable surface area (Unique OA feature)

• Custom designed fender storage in lazarette

• S/S flag pole fwd & after

• Underwater lights (three)

• ACR searchlight (RCL100D/24V) with 2 remotes FB, PH

• Spreader lights under wing mast and Aft deck

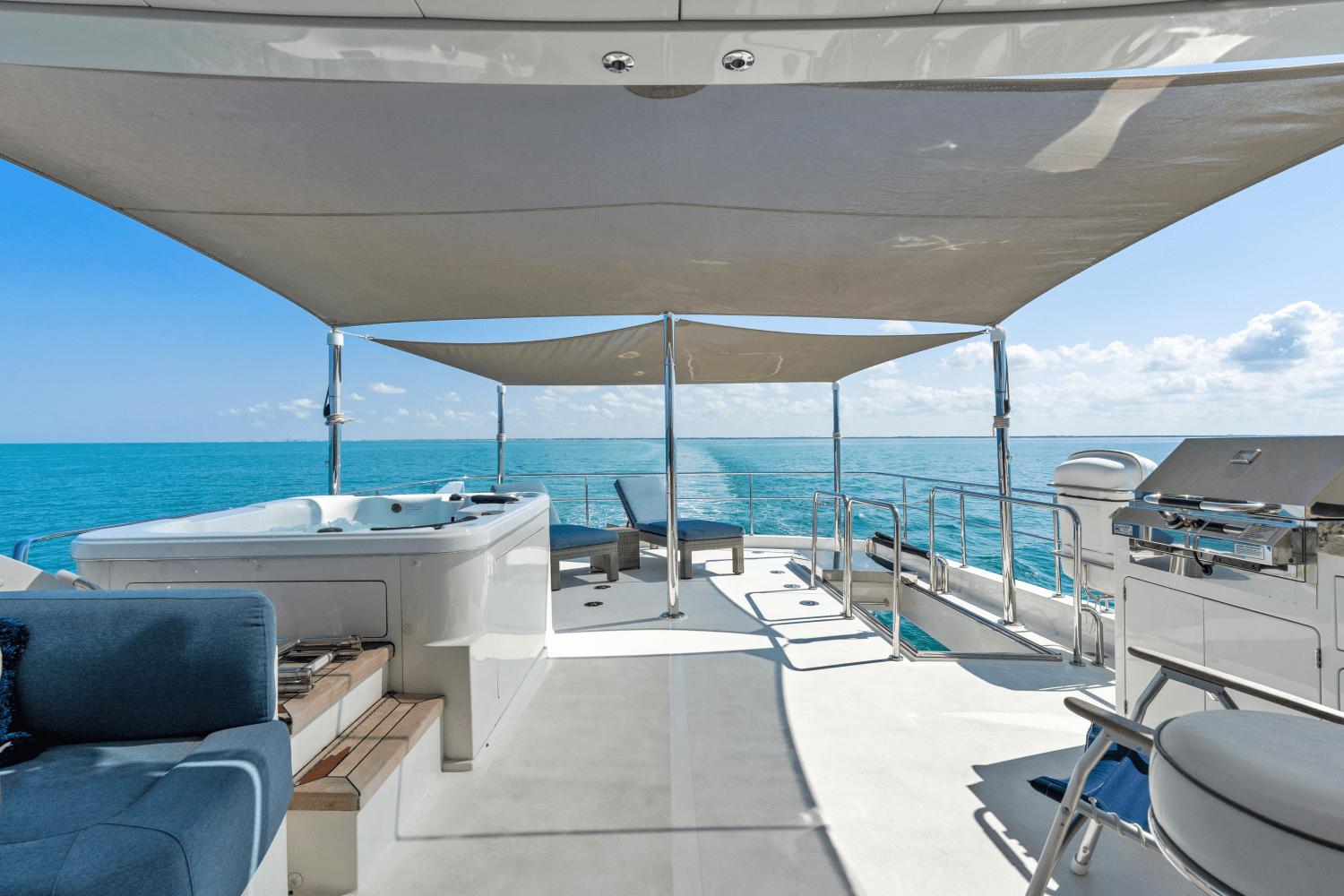

• 24” Electri-Chef™ electric barbecue on Flybridge deck

• Flip down 32” TV with DVD on Flybridge

• Flop down 32” TV with DVD on aft deck

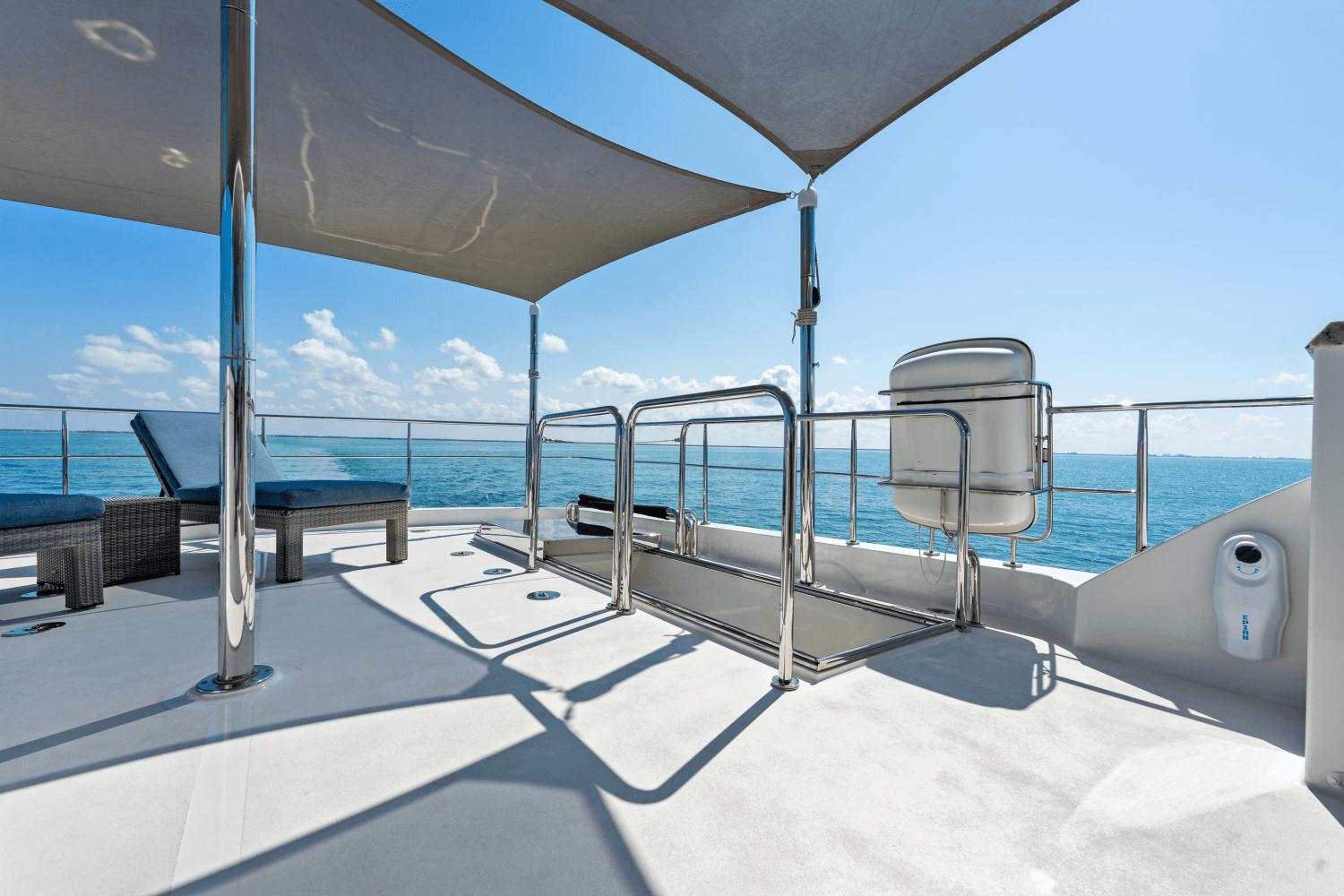

• Manual awning with custom made S.S. poles and marine-grade exterior “Batyline Crème” Ferrari mesh fabric

• Exterior removable ceiling panel(hardtop +deck)

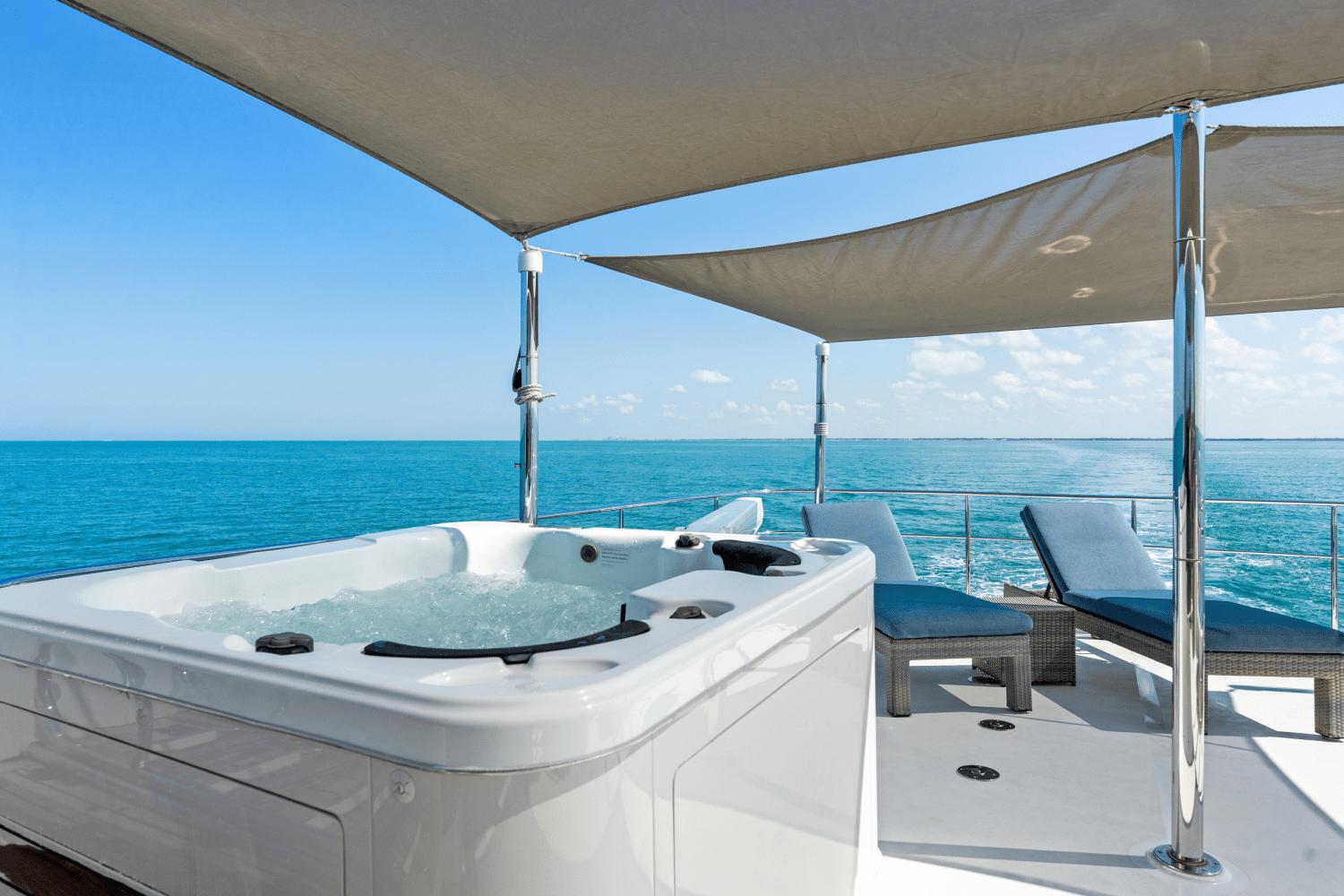

• Preplumb and prewiring for Jacuzzi on boat deck

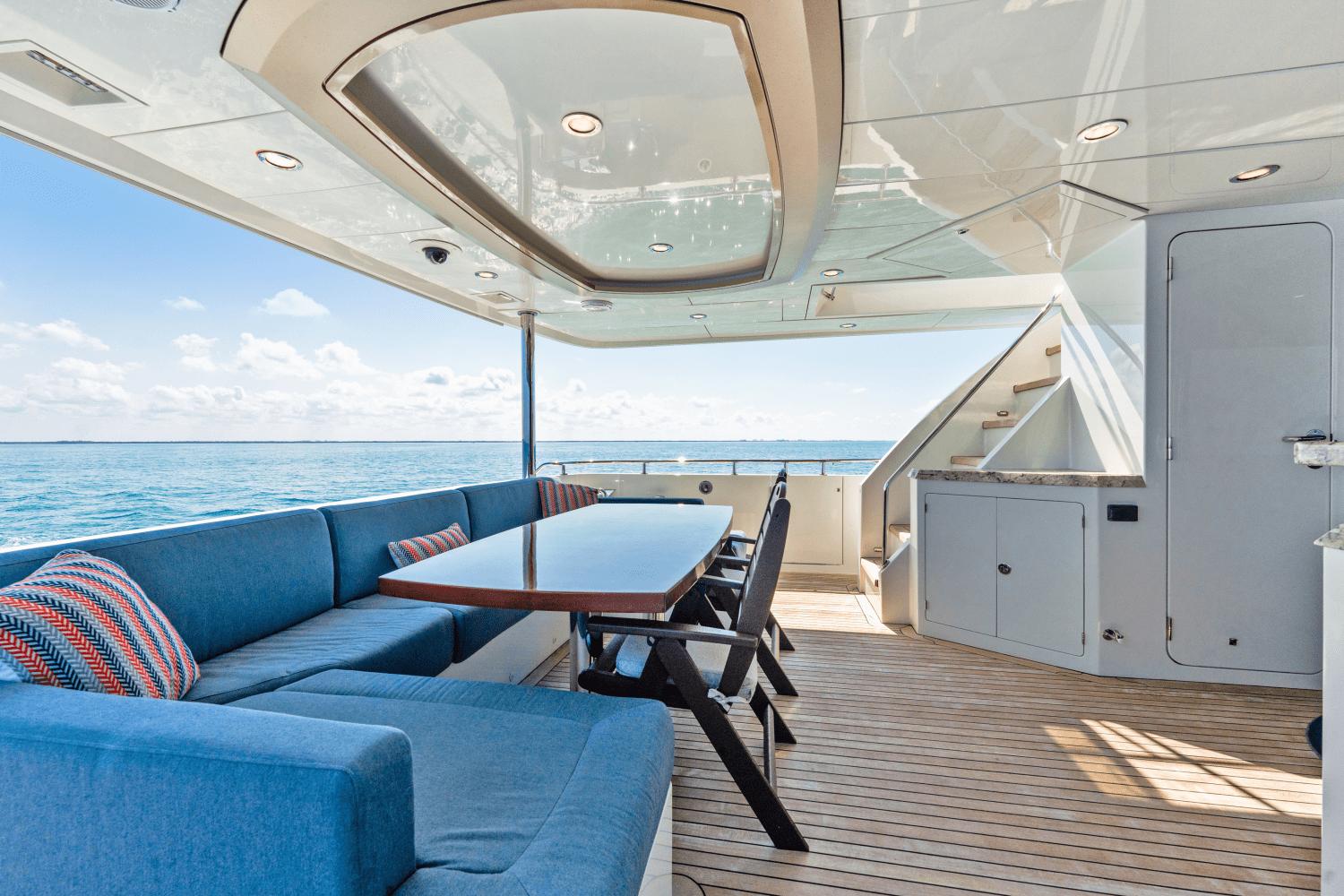

• Feature ceiling on after deck

TURN KEY:

• Full fuel tanks upon initial delivery

• Safety first aid kit

• Fenders, lines, flare kit, throw ring, fire extinguishers, bell

• Spare Parts package (Spare: Bilge pump, LED light, Pencil Zinc, Engine/ Generator filter, Wiper blades, Touch up paint, Fuses, Engine manuf. Spare parts kit, Generator manuf. spare parts kit, Breakers, Sump pump box, Float switch, Hydraulic gas-strut, Vimar outlet, GFI outlet, Vimar switch, Wood veneer)

• Wheel Puller for ship propellers

• Chocks

• 10-man life raft in valise bag

• 2sets of bed linens on all berths with pillows and towels

• Dinner china including dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole dish, salt & pepper shakers

• Flatware including steak knife, dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving spoons & fork

• Table placemats, napkins, water/white/red/champagne wine glasses

• Galley cookware/pans.

• Toaster, electric mixer, measuring cup, rubber/metal/ plastic spatulas, mixing bowls, chef knives, cutting boards, coffee machine, iron
